24, 50, 85mm T1.5 Cine DSX Lens Bundle

DSX24-C + DSX50-C + DSX85-C

Regular price $1,797.00 Sale price$1,685.00
/
Shipping calculated at checkout.
Monut

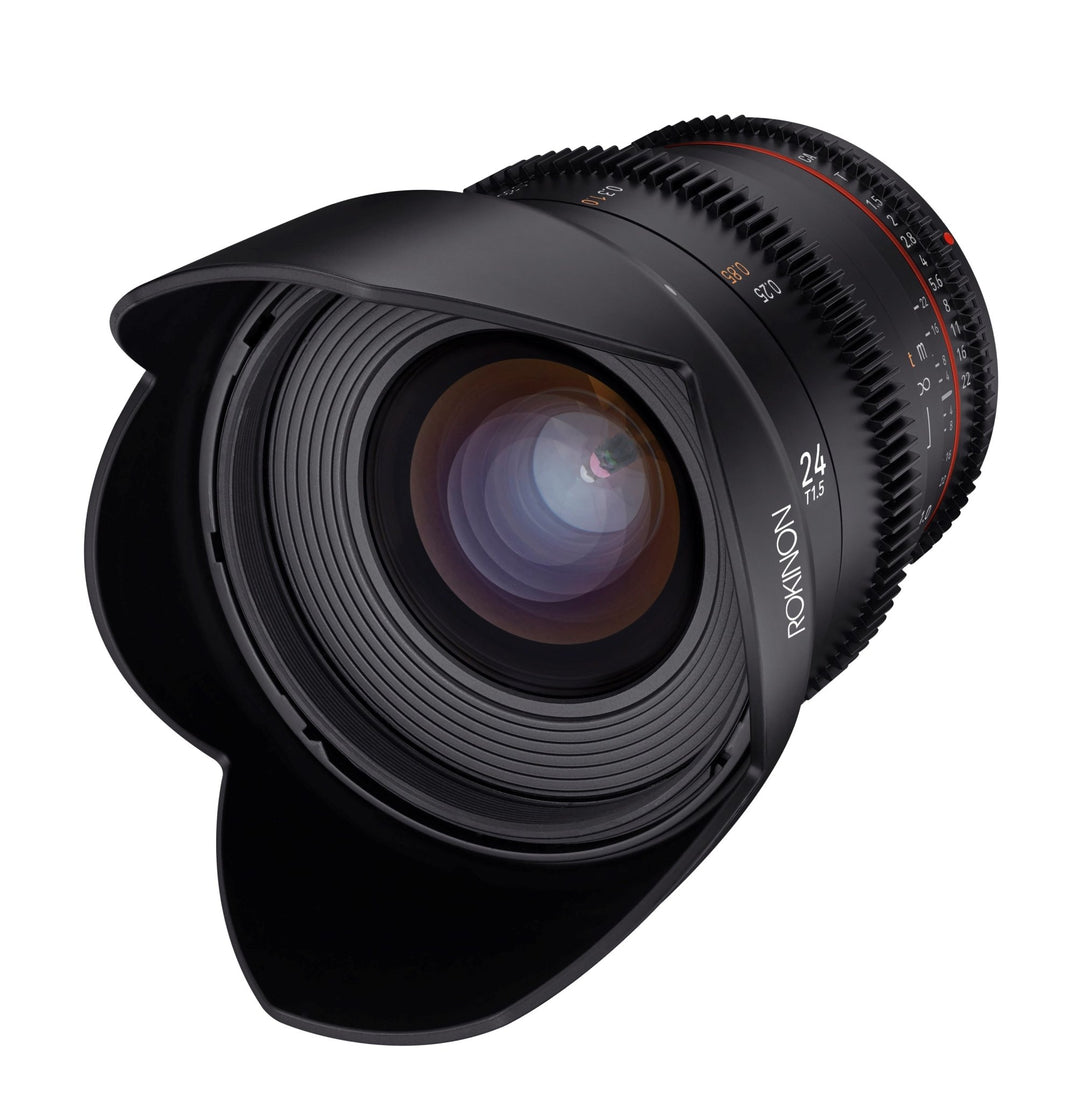

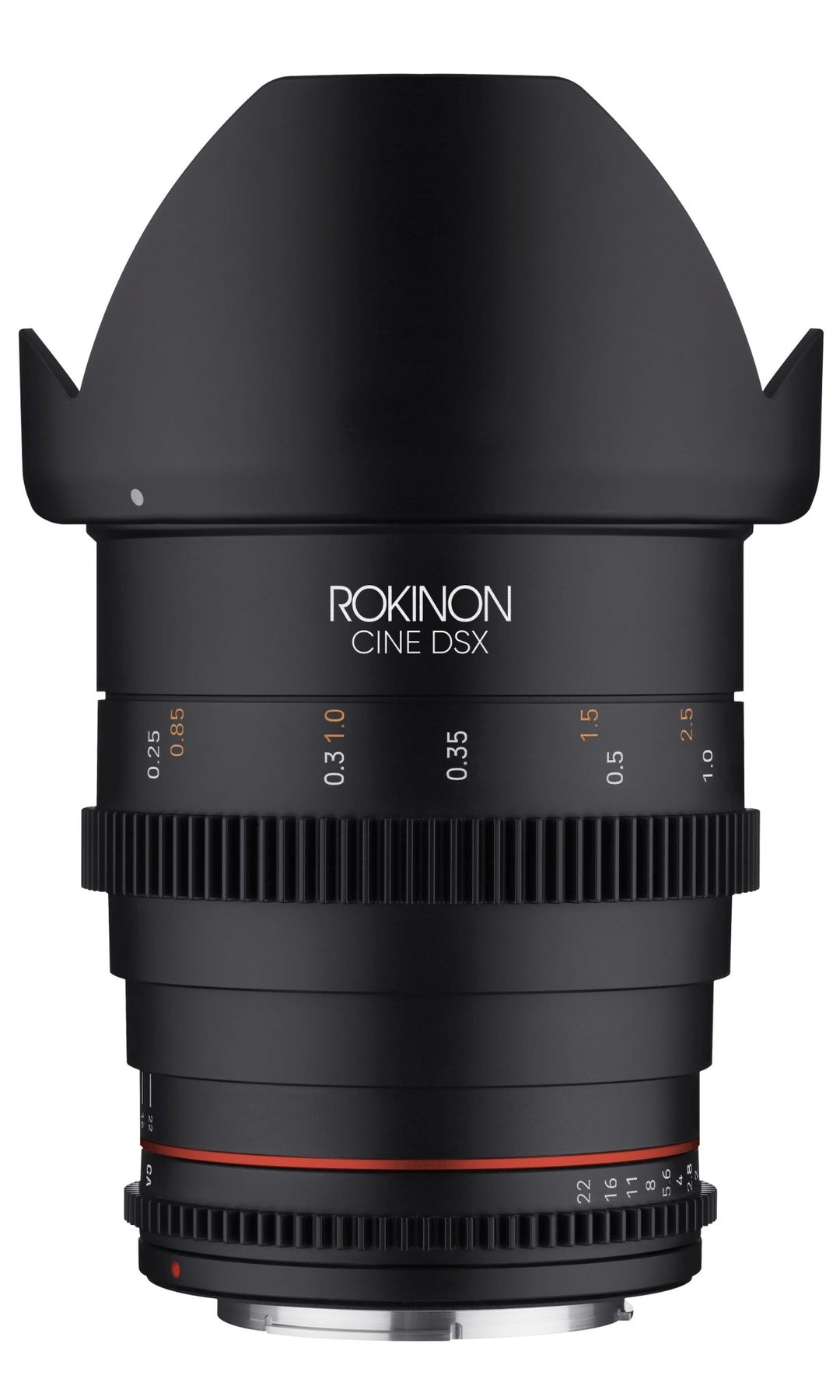

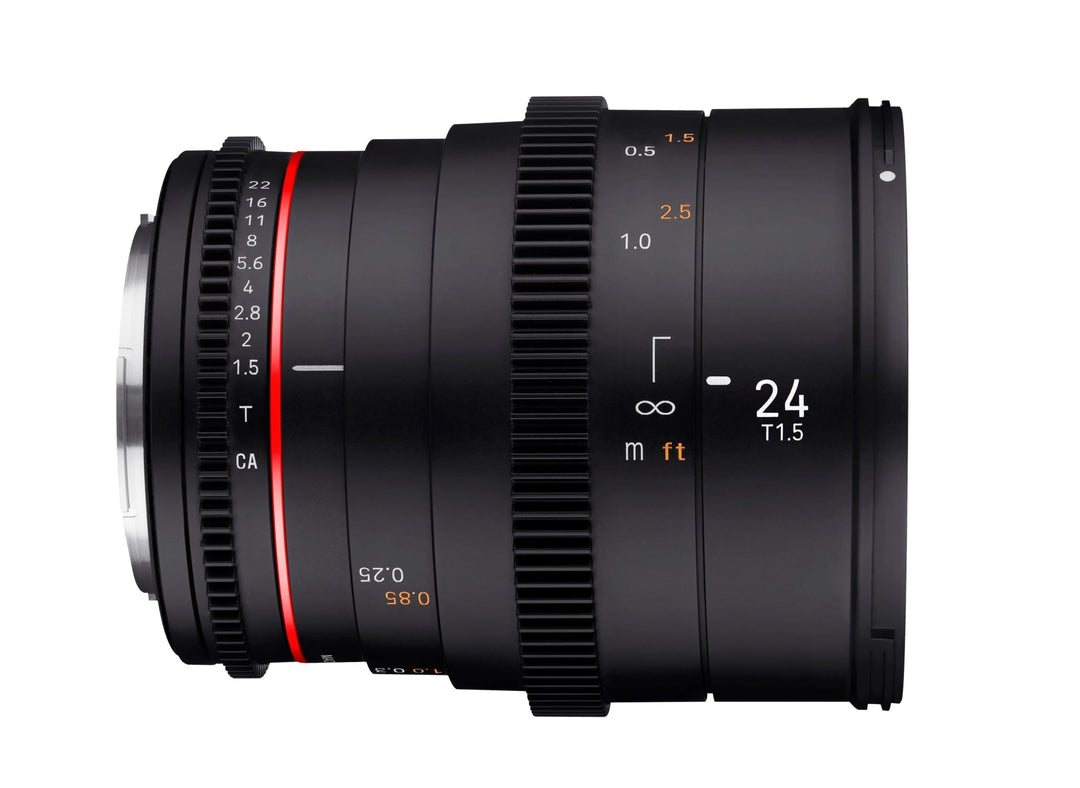

Utilizing a multi-layer coating process for consistent color rendition from lens to lens the Rokinon 24mm T1.5 VDSLR ED AS IF UMC II Lens answers the challenge of assembling a set of lenses over time. Features industry standard geared focus and iris rings that share common position with other Rokinon VDSLR lenses. To aid focus pullers who have to work both sides of the lens, the aperture and focus scales are marked on both sides of the lens.

This 24mm lens produces a 84.1° coverage when used with full frame cameras. Hybrid aspherical lenses render sharply defined images with a minimum of distortion and chromatic aberrations, with a minimum focus distance of just under 10" from the lens. A removable petal shaped lens hood provides flare protection when shooting without a matte box, the lenses threaded front accepts a 77mm filter ring.

Please note that some cameras may require that Shutter Lock be disengaged when using this lens.

  • 24mm lens with approximate angle of view of:
  • Full-Frame: 84.1°
  • APS-C: 58.0°
  • 4/3": 47.6°
  • Ultra Multi Coated lenses minimize flare and ghosting, and the lenses are color matched to a standard eliminating the need to acquire an entire set of lenses at the same time.
  • Industry-standard gearing for focus and aperture rings. Each lens in the Rokinon DS series share common focus and iris gear ring positions, which speeds up lens changes as accessories such as follow focus units or iris motors don't have to be re-positioned.
  • "De-Clicked" aperture ring for smooth iris pulls.
  • A minimum focusing distance of 9.8" allows you to get up close to your subject.
  • A removable petal-type lens hood provides flare protection without a matte box.

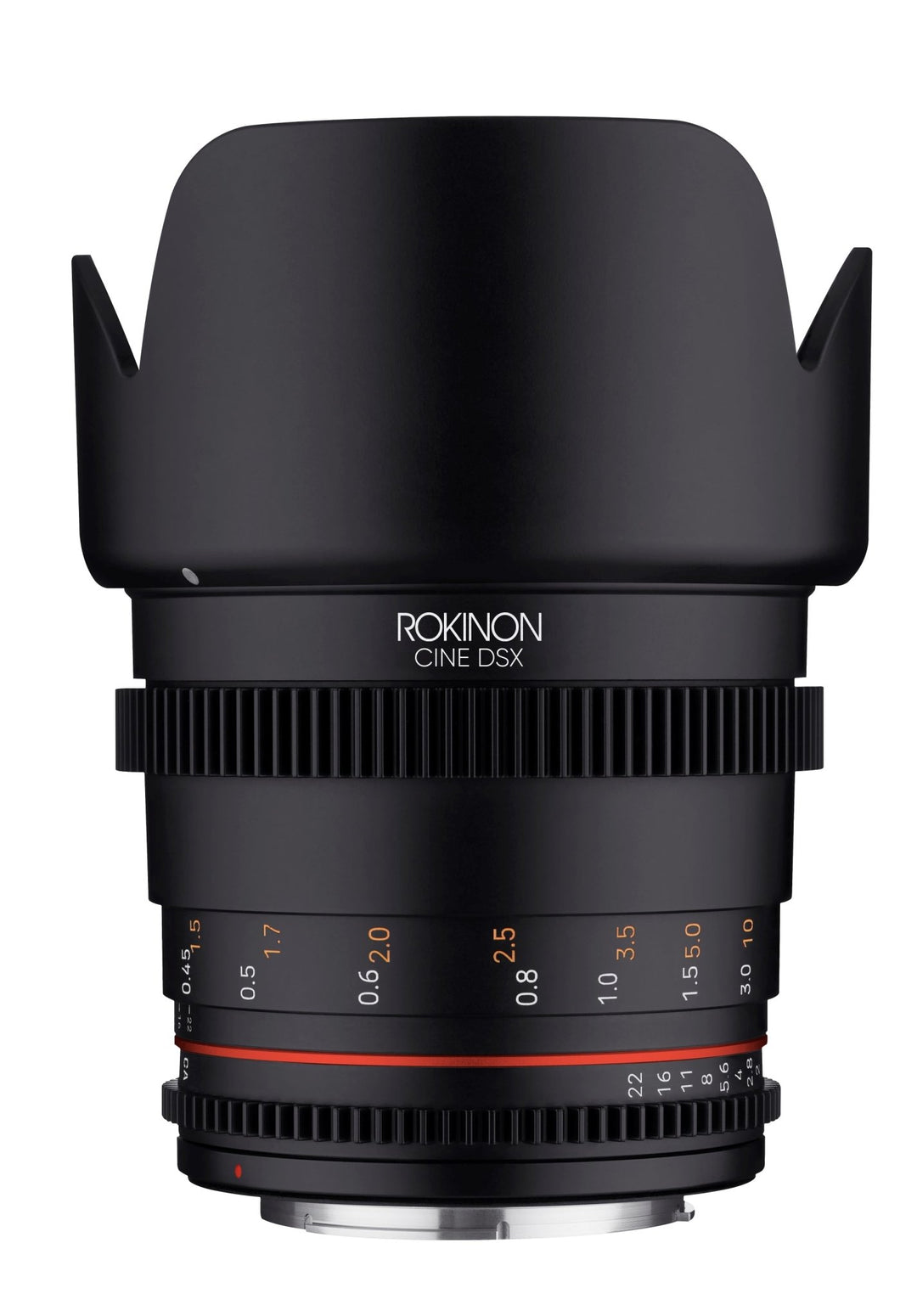

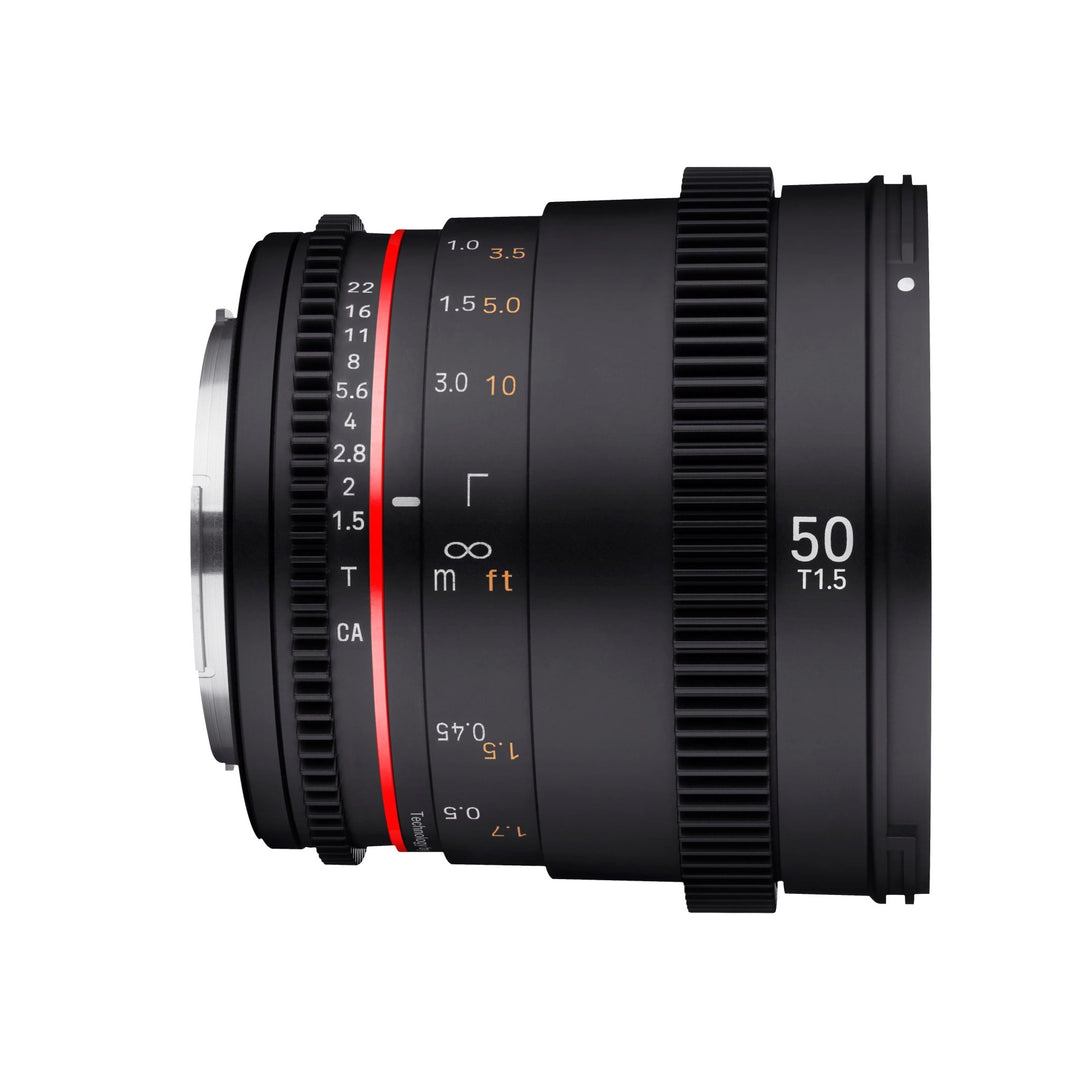

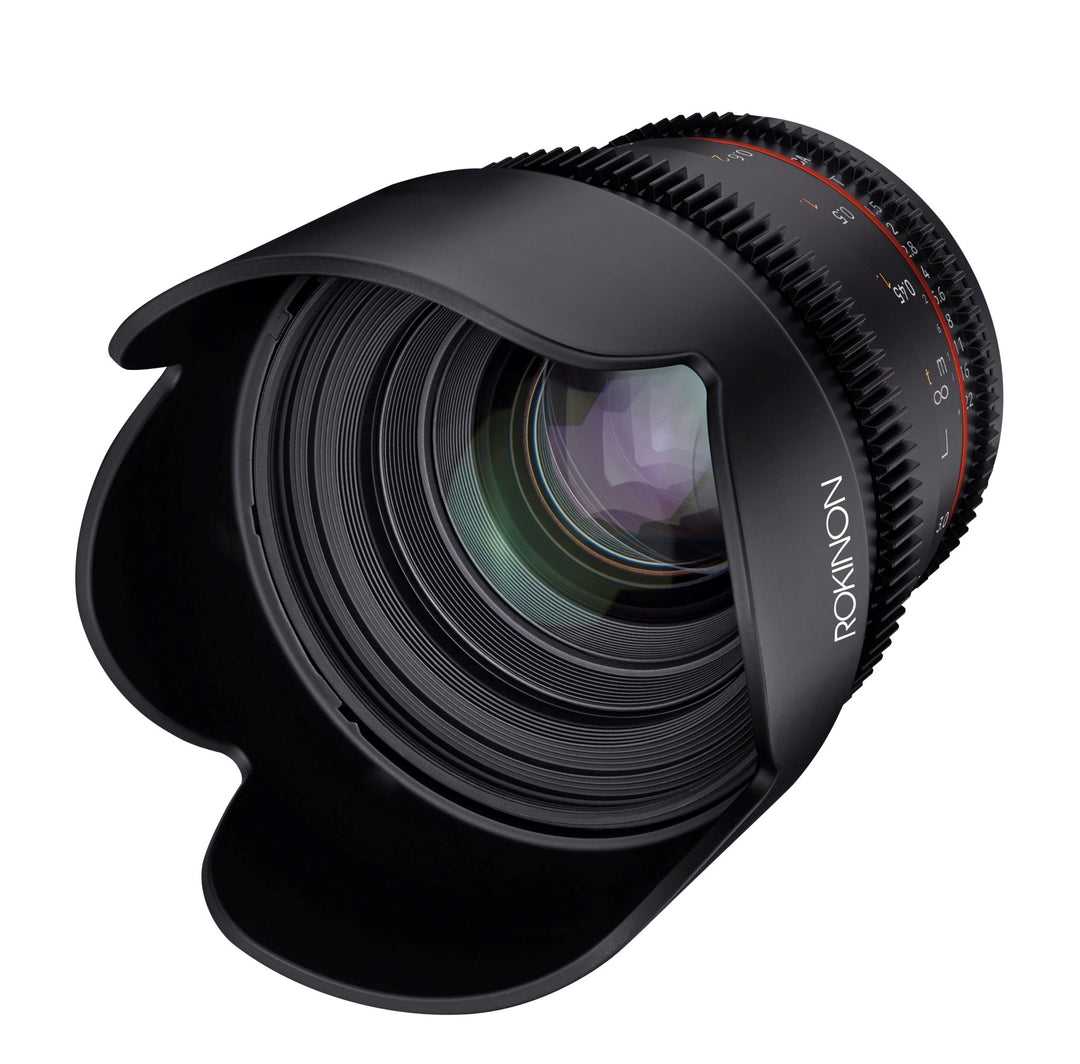

The Rokinon 50mm T1.5 AS UMC Lens is a fast manual focus prime lens. It provides a very fast maximum aperture of T1.5 for effective low light capture and shallow depth of field control and an 9 blade iris for attractive bokeh. Optimized for cinema and video applications, the focus and aperture control rings are outfitted with industry standard gearing, which provides an interface for working with a traditional follow focus. The aperture control ring has also been de-clicked, which enables smooth iris pulls. In addition, bright aperture and distance markings are printed on the lens barrel facing laterally to facilitate easier control by a focus puller.

The 50mm has a minimum focus distance of 1.5'. Internal focusing minimizes the effects of lens breathing, which insures a more consistent angle-of-view when adjusting focus. The lens is composed of 9 elements in 6 groups, including one aspherical element and one hybrid aspherical element to reduce aberrations. In addition, a lens multi-coating helps to improve light transmission reducing flare and ghosting. The filter thread diameter is 77mm.

With this 50mm lens, Rokinon introduces the DS series of cinema lenses, unifying their cine lenses in more than just name. Each of the DS branded lenses will offer the same alignment of their geared focus and aperture rings so that follow focus and other rig accessories won't need re-adjustment when swapping lenses. Also, each DS lens is tested to be color matched with the other lenses in the series and provide the same color and contrast when shooting video. Lastly, the lenses are marked with focusing scales on each side of the barrel for easier adjustment from either side of the camera.

  • Standard length manual focus prime lens for EF mount cameras.
  • Functional as still photo lens but optimized for cinema and video shooting with geared aperture and focus rings, de-clicked aperture for smooth exposure transitions and laterally printed aperture and distance markings.
  • Very fast T1.5 maximum aperture for effective low light capture and shallow depth of field.
  • Internal focusing system with 9 lens elements in 6 groups.
  • One aspherical and one hybrid aspherical lens element control aberrations and improve sharpness throughout the frame.
  • Lens multi-coating improves light transmission and reduces flare and ghosting.
  • Minimum focus distance of 1.5'
  • Filter thread diameter of 77mm

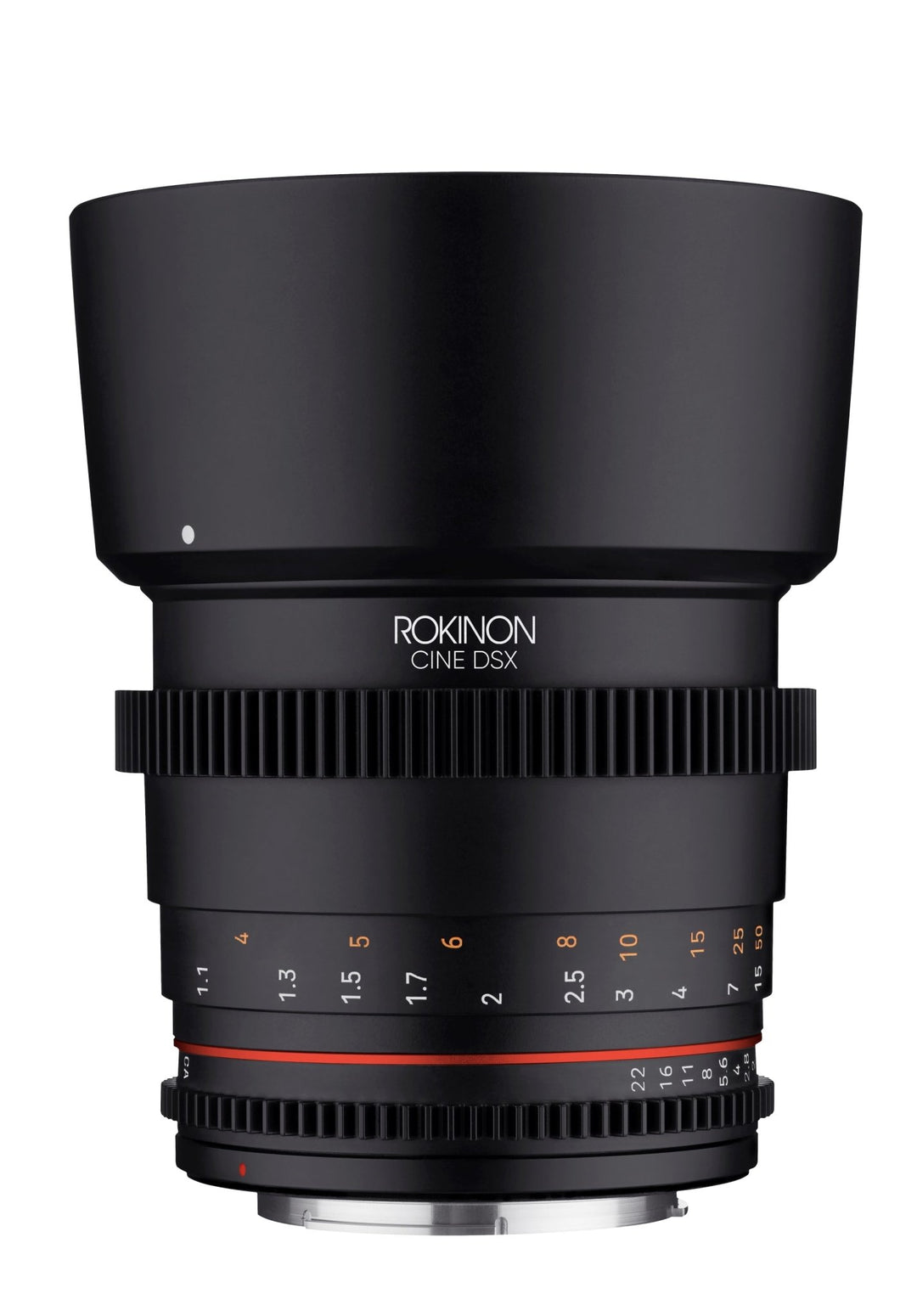

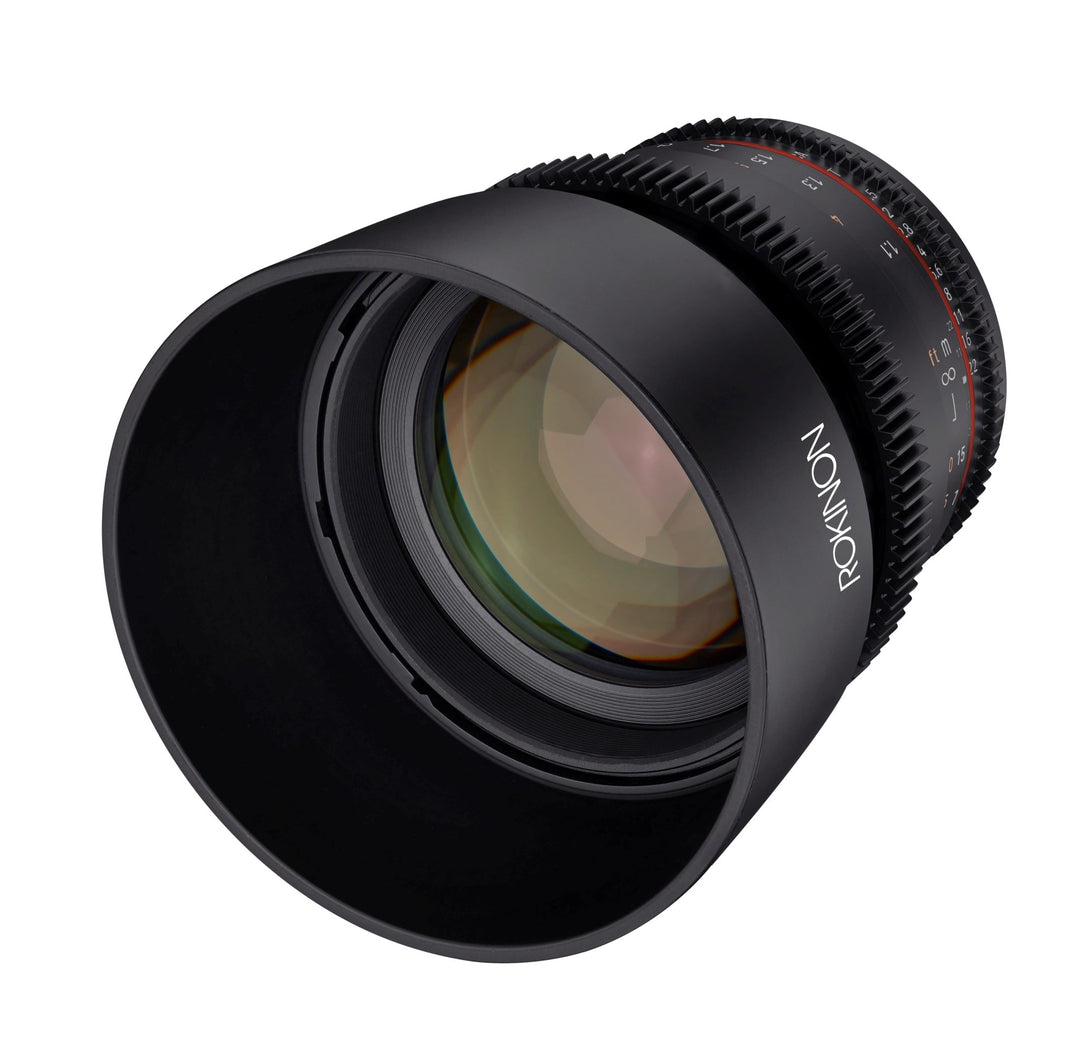

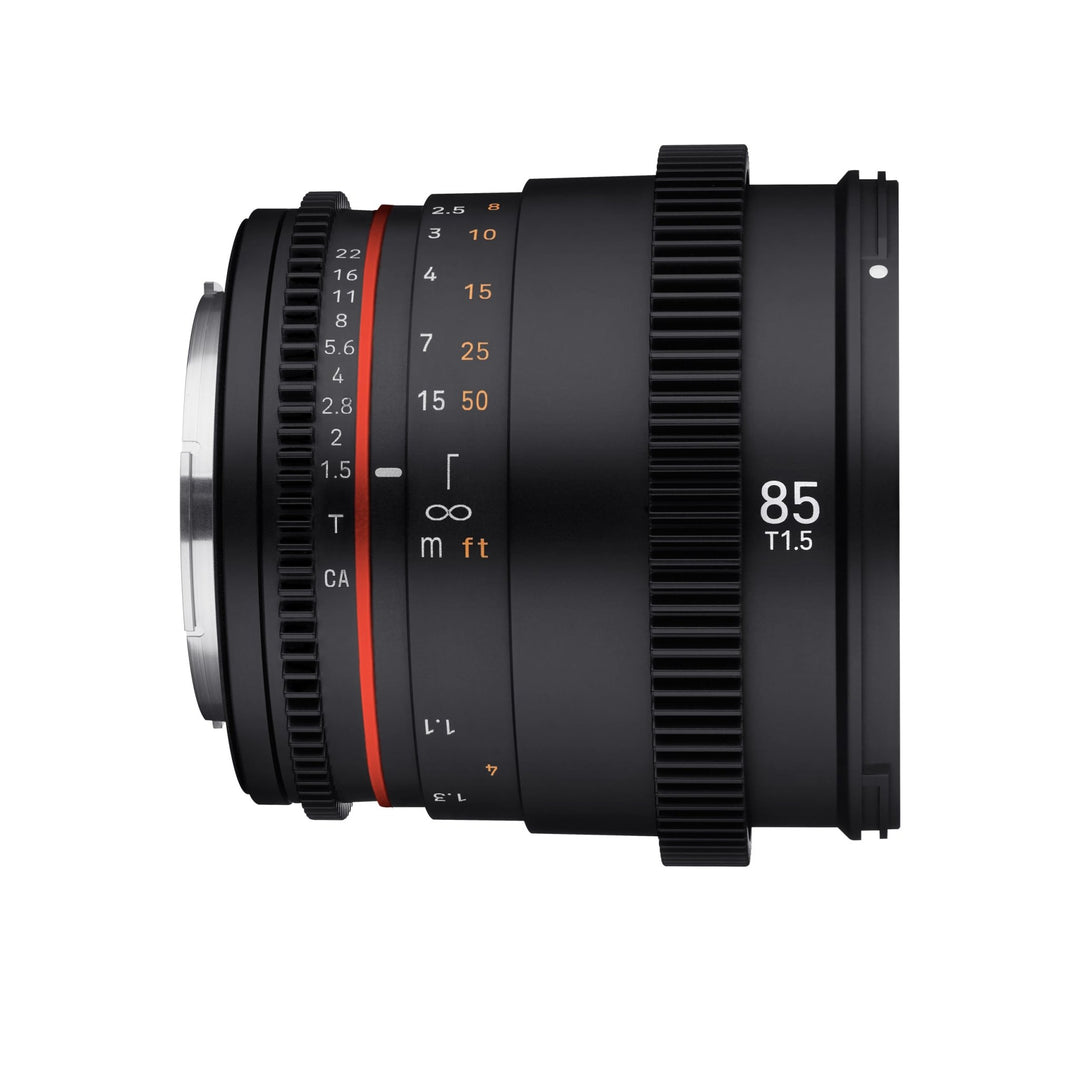

The Rokinon 85mm T1.5 VDSLR AS IF UMC II Lens produces a slightly telephoto angle-of-view on full-frame sensors. It features a very fast maximum aperture of T1.5 and an 9 blade iris, for shallow depth of field with attractive bokeh. The focus and aperture control rings are outfitted with industry standard gearing, which provides an interface for working with a traditional follow focus. The aperture control ring has also been "De-Clicked", which facilitates smooth iris pulls.

The 85mm has a minimum focus distance of 3.6'. Internal focusing minimizes the effects of lens breathing, which insures a more consistent angle-of-view when adjusting focus. The lens is composed of 9 elements in 7 groups, including one aspherical element to reduce spherical aberrations. In addition, a multi-coated elements help improve light transmission.

  • 85mm focal length for full-frame format
  • Very fast T1.5 maximum aperture
  • 9 blade iris for attractive bokeh
  • Geared focus and aperture control rings
  • "De-Clicked" aperture control ring
  • Minimum focus distance of 3.6'
  • Internal focusing mitigates lens breathing
  • Aspheric lens element limits spherical aberration
  • Lens multi-coating improves transmission

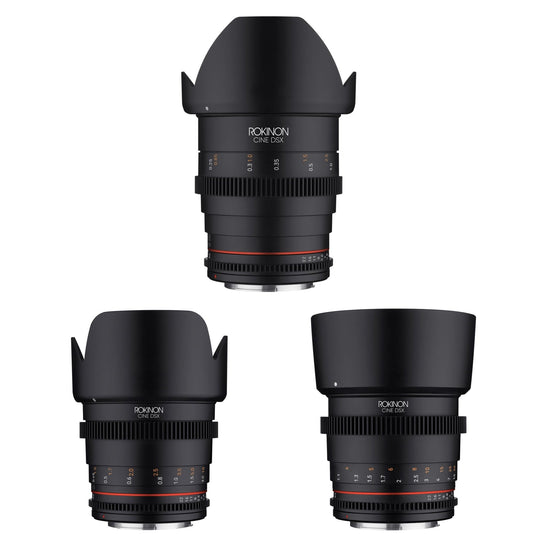

This Rokinon Bundle provides four lenses that you can use to shoot images from wide shots to portrait; it includes Rokinon's 24mm, 50mm, and 85mm T1.5 Cine DSX Lenses that feature sharp optics and similar physical characteristics for fast lens changes. The lenses share a T-stop range of 1.5 to 22. The included lenses cover full-frame sensors. The lenses are suitable for shooting using available light, and as they all share the same exposure range, there is no worry when changing lenses you will also have to change your lighting or camera settings.

Aperture and focus scales are marked on both sides of the lens, which makes it easier for a focus puller to work either side of the lens. The lenses feature a multi-layer coating providing good contrast, a sharp image, and protection from veiling glare. Industry standard focus and iris gear rings share a common position across the lenses for quick lens swaps when working with lens accessories such as follow focus units. Focus and iris are manual only with no electronic focus or iris control by the camera, and the iris ring is de-clicked, which allows you to make smooth iris pulls during a shot.

Boasting a new compact and sleek design with matte black finish, ROKINON CINE DSX lenses offer additional welcome features including a rounded nine blade aperture for even smoother circular bokeh.

Lens mounts are now weather sealed, and Cine DSX lenses are even available in Canon RF mount. In addition, DSX lenses are fully compatible in terms of color rendition and gear placement with ROKINON CINE DS lenses.

With full frame coverage, fast apertures, and optical designs utilizing special elements, DSX lenses support the increased capabilities of the latest DSLR, Mirrorless, Cine camera systems, and drones. ROKINON CINE DSX lenses are the perfect choice for independent filmmakers, project directors, and professional cinematographers.

ROKINON CINE LENS FEATURES

  • Calibration in T-stops
  • Tight color matching
  • Silky smooth long focus throws for precise focus control
  • Non-rotating front designs facilitates easy use of filters, polarizers, and hoods
  • Apertures are de-clicked for precise, smooth and silent operation
  • Left and right side focusing and aperture scales let you work from either side
  • Industry standard 0.8MOD gearing with uniform DSX and DS series focus and aperture gear placement enable fast lens changes when using follow focus devices
  • High Refractive Index, Extra Low Dispersion, Aspherical and Hybrid Aspherical elements are utilized to reduce aberrations, and produce clear, and vibrant images

ADDITIONAL ROKINON CINE DSX LENS FEATURES

  • A new compact and sleek design with a matte black finish
  • Rounded nine blade apertures that deliver even smoother circular bokeh
  • Enhanced lens markings with focal lengths visible from the sides of the lens
  • Two year warranty
  • Available in Canon RF mount
  • The focusing gear is designed wider and feels more comfortable when gripped for focus pulling by hand
  • Weather sealed lens mounts protect the most vulnerable gap between the lens and camera mount

    Specifications

    Product24mm T1.550mm T1.585mm T1.5
    Maximum T-StopT1.5T1.5T1.5
    Optical Construction13 Elements in 12 Groups9 Elements in 6 Groups9 Elements in 7 Groups
    Negative Size24 x 36 mm24 x 36 mm24 x 36 mm
    Angle of ViewFull Frame (1:1x)84.1°46.2°28.4°
    Super 3565.3°33.7°20.6°
    APS-C (1:1.5x)61.3°31.3°19.1°
    APS-C (1:1.6x)58.0°29.4°17.9°
    MFT (1:2x)47.6°23.6°14.4°
    Minimum Focusing Distance (∞ ~)0.25 m0.82 ft.0.45m1.47 ft.1.1 m3.6 ft.
    Filter Size (mm)77mm77mm72mm
    Diaphragm Blades999
    AngleFocus angle139°150°140°
    Aperture AngleNikon F48°48°48°
    Others
    Weather SealingNikon FNo
    OthersYes
    SizeCanon EF84.0 x 97.1 mm3.31 x 3.82 in84.0 x 74.7 mm3.31 x 2.94 in84.0 x 74.7 mm3.31 x 2.94 in
    Canon RF84.0 x 121.1 mm3.31 x 4.77 in84.0 x 98.7 mm3.31 x 3.89 in84.0 x 98.7 mm3.31 x 3.89 in
    Sony E84.0 x 123.1 mm3.31 x 4.85 in84.0 x 100.7 mm3.31 x 3.96 in84.0 x 100.7 mm3.31 x 3.96 in
    Nikon F84.0 x 94.6 mm3.31 x 3.72 in84.0 x 72.2 mm3.31 x 3.63 in84.0 x 72.2 mm3.31 x 3.63 in
    Fuji X84.0 x 123.4 mm3.31 x 4.86 in84.0 x 101.0 mm3.31 x 3.98 in84.0 x 101.0 mm3.31 x 3.98 in
    MFT84.0 x 121.9 mm3.31 x 4.80 in84.0 x 99.5 mm3.31 x 3.92 in84.0 x 99.5 mm3.31 x 3.92 in
    WeightCanon EF597.8g1.32 lbs.525.8g1.16 lbs.561.6g1.24 lbs.
    Canon RF662.6g1.46 lbs.590.6g1.30 lbs.626.4g1.38 lbs.
    Sony E649.0g1.43 lbs.576.4g1.27 lbs.612.4g1.35 lbs.
    Nikon F587.0g1.29 lbs.514.8g1.13 lbs.549.2g1.21 lbs.
    Fuji X640.0g1.41 lbs.567.4g1.25 lbs.603.0g1.33 lbs.
    MFT636.0g1.40 lbs.563.8g1.24 lbs.600.0g1.32 lbs.
    Gear Ring
    Position
    ModuleABCDFocus
    Diameter
    Aperture Diameter
    Canon EFSony ENikon FCanon MFuji XMFTCanon EFOthers
    Length0.8 mm10 mm4 mm46.8 mm10.5 mm36.5 mm8 mm36.2 mm36.8 mm35.3 mm73.6 mm70.4 mm73.6 mm
