10mm T3.1 Ultra Wide Angle Cine DS - Rokinon

$599.00 $449.00

Shipping calculated at checkout.

Quantity

Mount

Canon EF

Micro 4/3

Nikon F

Sony E

Model: DS10M-C

UPC: 0-84438-76378-2

Focal Length: 10mm

Maximum Aperture: T3.1

Coverage: APS-C/Four Thirds

Optical Construction: 14 Glass Elements In 9 Groups

Aperture Range: T3.1 to T22

Diaphragm Blades: 6

Coating: Nano Coating System

Minimum Focusing Distance: 9.45” (0.24m)

Filter Size: n/a

Lens Hood: Built-in Petal Shaped

Maximum Diameter: 3.43” (87mm)

Weight: 21.2oz (600g)

Length: 4.18” (106.1mm)

Model: DS10M-MFT

UPC: 0-84438-76379-9

Focal Length: 10mm

Maximum Aperture: T3.1

Coverage: APS-C/Four Thirds

Optical Construction: 14 Glass Elements In 9 Groups

Aperture Range: T3.1 to T22

Diaphragm Blades: 6

Coating: Nano Coating System

Minimum Focusing Distance: 9.45” (0.24m)

Filter Size: n/a

Lens Hood: Built-in Petal Shaped

Maximum Diameter: 3.43” (87mm)

Weight: 22.2oz (630g)

Length: 5.15” (130.9mm)

Model: DS10M-N

UPC: 0-84438-76380-5

Focal Length: 10mm

Maximum Aperture: T3.1

Coverage: APS-C/Four Thirds

Optical Construction: 14 Glass Elements In 9 Groups

Aperture Range: T3.1 to T22

Diaphragm Blades: 6

Coating: Nano Coating System

Minimum Focusing Distance: 9.45” (0.24m)

Filter Size: n/a

Lens Hood: Built-in Petal Shaped

Maximum Diameter: 3.43” (87mm)

Weight: 20.8oz (590g)

Length: 4.08” (103.6mm)

Model: DS10M-NEX

UPC: 0-84438-76381-2

Focal Length: 10mm

Maximum Aperture: T3.1

Coverage: APS-C/Four Thirds

Optical Construction: 14 Glass Elements In 9 Groups

Aperture Range: T3.1 to T22

Diaphragm Blades: 6

Coating: Nano Coating System

Minimum Focusing Distance: 9.45” (0.24m)

Filter Size: n/a

Lens Hood: Built-in Petal Shaped

Maximum Diameter: 3.43” (87mm)

Weight: 22.2oz (630g)

Length: 5.20” (132.1mm)

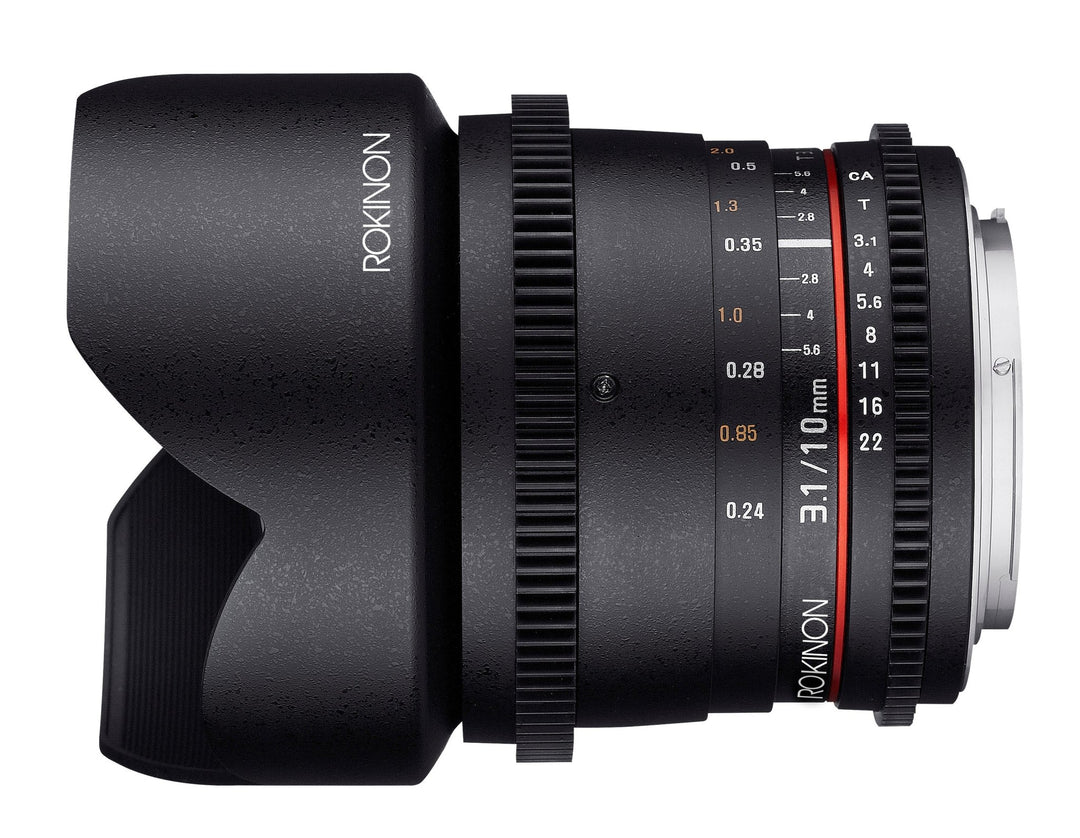

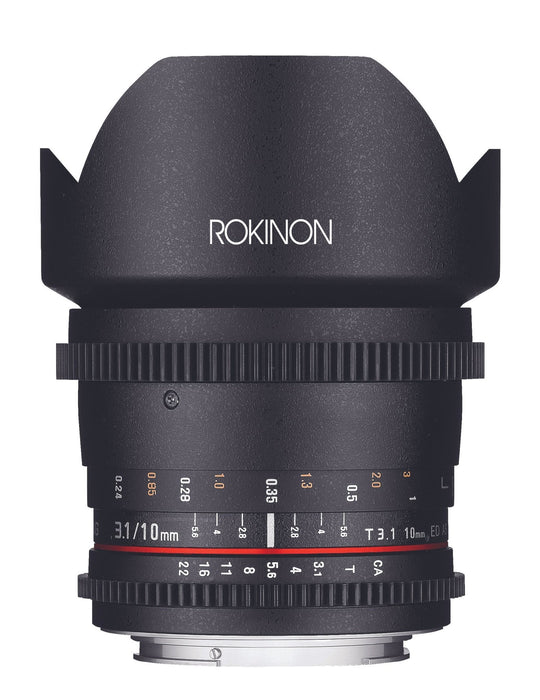

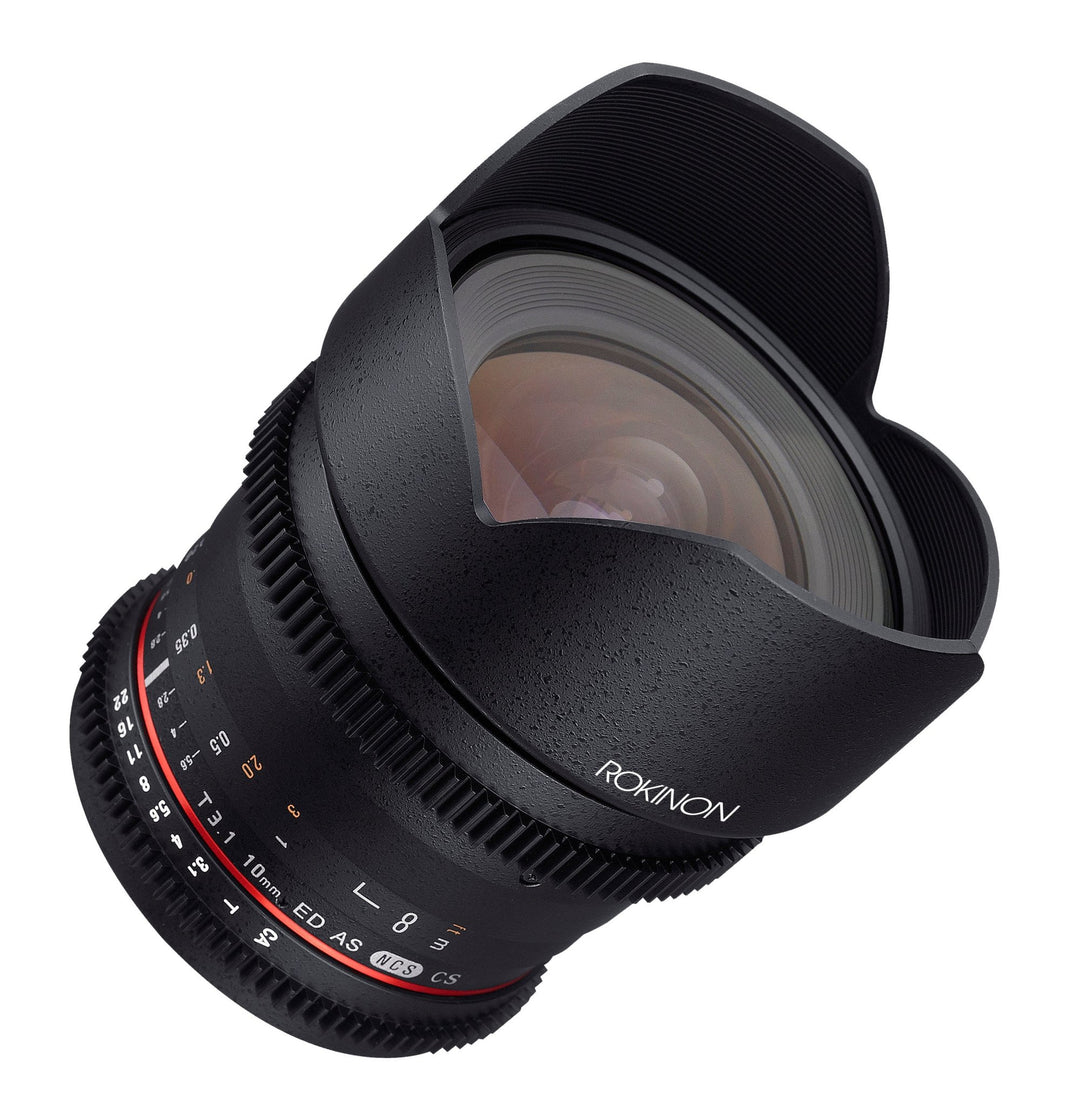

※ This product image is a Canon EF mount lens. Size and design may vary depending on the mount of a lens

[{"id":34571887181978,"title":"Canon EF","option1":"Canon EF","option2":null,"option3":null,"sku":"DS10M-C","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"10mm T3.1 Ultra Wide Angle Cine DS - Canon EF","public_title":"Canon EF","options":["Canon EF"],"price":44900,"weight":816,"compare_at_price":59900,"inventory_management":"shopify","barcode":"084438763782","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":34571887214746,"title":"Micro 4\/3","option1":"Micro 4\/3","option2":null,"option3":null,"sku":"DS10M-MFT","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"10mm T3.1 Ultra Wide Angle Cine DS - Micro 4\/3","public_title":"Micro 4\/3","options":["Micro 4\/3"],"price":39900,"weight":816,"compare_at_price":59900,"inventory_management":"shopify","barcode":"084438763799","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":34571887247514,"title":"Nikon F","option1":"Nikon F","option2":null,"option3":null,"sku":"DS10M-N","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"10mm T3.1 Ultra Wide Angle Cine DS - Nikon F","public_title":"Nikon F","options":["Nikon F"],"price":36900,"weight":816,"compare_at_price":59900,"inventory_management":"shopify","barcode":"084438763805","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":34571887280282,"title":"Sony E","option1":"Sony E","option2":null,"option3":null,"sku":"DS10M-NEX","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"10mm T3.1 Ultra Wide Angle Cine DS - Sony E","public_title":"Sony E","options":["Sony E"],"price":35793,"weight":816,"compare_at_price":59900,"inventory_management":"shopify","barcode":"084438763812","requires_selling_plan":false,"selling_plan_allocations":[]}]

With an angle of view of 109.5°, the lens is well-suited for shooting landscapes, architecture, and for use in tight interior locations. One extra-low dispersion element (ED) and two aspherical elements have been incorporated into the optical design to minimize chromatic aberrations and distortion in order to produce sharper images. Additionally, a Nano Coating System (NCS) has been applied to the lens elements in order to reduce surface reflections and prevent lens flare and ghosting for improved light transmission and more contrast-rich imagery.

10mm lens with 109.5° angle-of-view

Aperture Range: T3.1 to T22

Image Circle covers APS-C sized sensors

Industry Standard 0.8 pitch gearing on focus and aperture rings

De-clicked aperture for smooth focus pulls

14 elements in 9 groups, including one ED and two aspherical elements

Nano Coating System improves light transmission, minimizes flares and ghosting for higher contrast images

Depth of Field markings on side of the lens

A minimum focusing distance of 9.45"

Integrated lens hood (not removable)

User Manual Download

Specifications

Specifications		10mm T3.1 VDSLR ED AS NCS CS II
Aperture Range		T3.1 ~ T22
Optical Construction		14 Elements in 9 Groups (2 Aspherical, 1 Extra Low Dispersion)
Minimum Focusing Distance		0.24m (0.79ft)
Filter Size		-
Maximum Diameter		87.0mm
Mount		Nikon F	Canon EF	Pentax K	Sony A	Canon M	Fujifilm X	Samsung NX	Sony E	Micro 4/3
Angle Of View	APS-C	109.5˚	105.9˚	109.5˚	109.5˚	105.9˚	109.5˚	109.5˚	109.5˚	-
Angle Of View	FOUR-THIRDS 4/3”	-	-	-	-	-	-	-	-	93.4˚
Length (mm) Lens Mount to Front		103.6mm	106.1mm	104.6mm	105.6mm	132mm	132.4mm	124.6mm	132.1mm	130.9mm
Weight (g)		590g	600g	590g	595g	630g	635g	625g	630g	630g
Gear	Module	0.8mm
	A	7mm
	B	4mm
	C	43.8mm
	D	8mm	10.5mm	9mm	10mm	36.4mm	36.8mm	29mm	36.5mm	35.3mm
	Focus Ring Diameter	81.6mm
	Aperture Ring Diameter	70.4mm	73.6mm

MTF Chart

Optical Construction

Discover More

De-clicked aperture and calibrated in T-stops

Apertures are de-clicked for precise, smooth and silent operation. Calibrated in T-stops to provide accurate and consistent exposure.

Industry-standard gearing for focus and aperture rings

Each lens in the Rokinon DS series shares common focus and iris gear ring positions, which speeds up lens changes as accessories such as follow focus units or iris motors don't have to be re-positioned.

Dual sided lens markings

To aid focus pullers who have to work both sides of the lens, the aperture and focus scales are marked on both sides of the lens.
