24, 50, 85mm XEEN CF Pro Cinema Lens Bundle

CFX24-C + CFX50-C + CFX85-C

Regular price $7,485.00 Sale price$4,485.00
/
Shipping calculated at checkout.
Mount

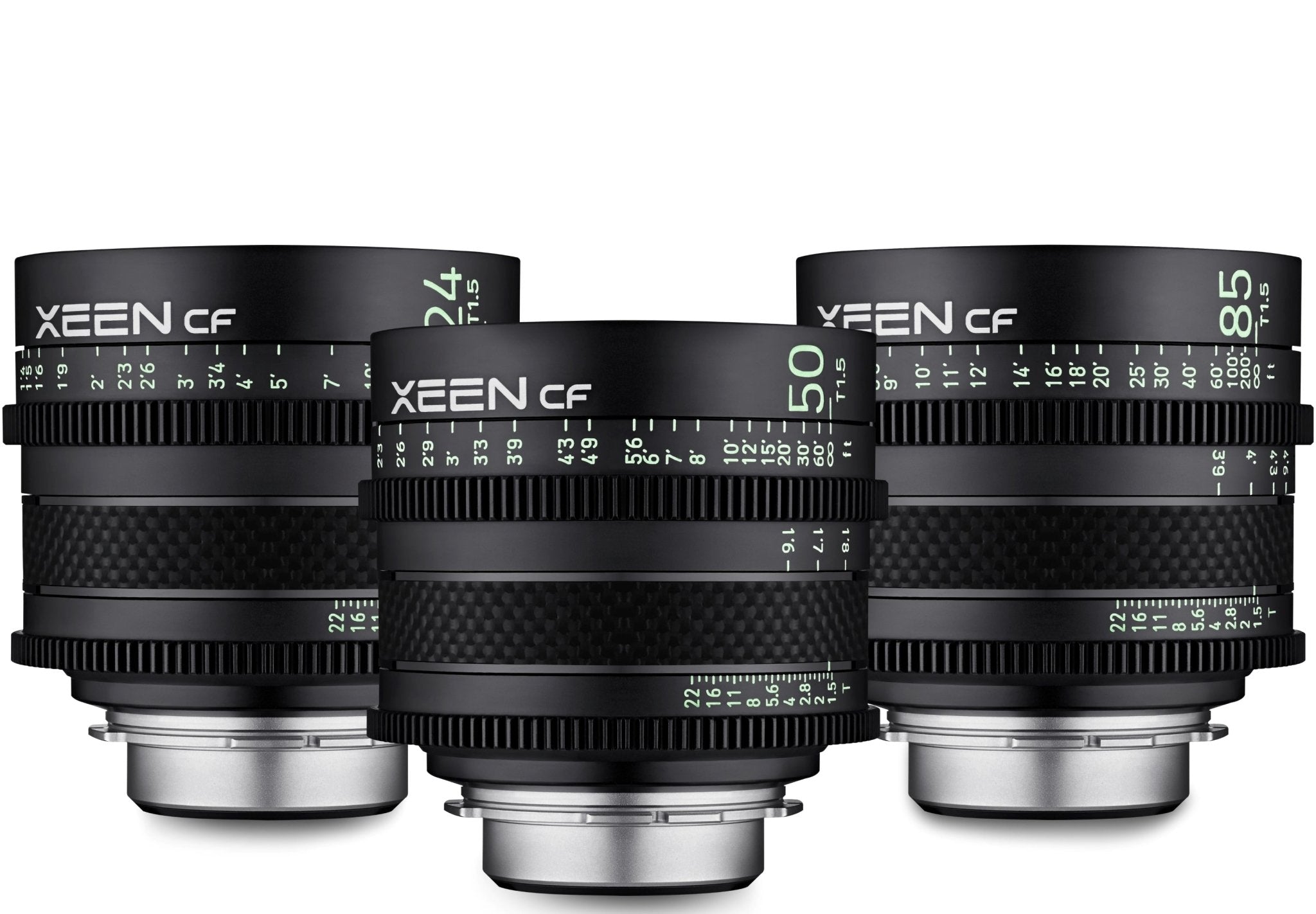

This ROKINON XEEN CF Lens Bundle includes the 24mm T1.5 Wide Angle, 50mm T1.5 and 85mm T1.5 Telephoto.

ROKINON XEEN CF lenses reflect the trend towards more compact, lightweight, and high definition cameras. They are the first full frame cine lenses to utilize carbon fiber for a sturdier, lighter, durable and more future oriented design and appearance.

Carbon fiber is rarely used for precision machinery due its difficulty in molding. Credit must be given to the R&D designers who developed a technique for molding the material into the shape and size suitable for use in precise lens construction. The cost premium of carbon fiber was another challenge that was overcome to allow the CF cine lenses to remain within the reach of both renowned and aspiring cinematographers.

With an average weight of only 2.12lb/0.96kg and length of 3.7”/93.5mm in PL mount for all five focal lengths, they offer exceptional compatibility and flexible operation with equipment such as drones and gimbals.

ROKINON XEEN CF lenses support large image sensors and 8K capability of the latest cinema cameras. The unique X-coating technology, optical design, bright T1.5 aperture (T2.6 for the 16mm), and 11 blade diaphragm can be effectively controlled to create distinctive looks, produce excellent low light performance and beautiful bokeh.

Additional features are changeable mounts, a common front diameter of 95mm for easy use with matte boxes, and luminous glow-in-the-dark markings for easy operation in low-light conditions.

True cine lens features include unified focus and aperture gear positions for easier follow focus use, tight color matching, dual calibrated right and left side distance and T-stop scales and incredibly smooth movement of the geared focusing and aperture controls.

24mm T1.5 Wide Angle

Focal Length24mm
Maximum T-StopT1.5
Aperture RangeT1.5 to T22
Max Diameter100mm
Image Circle43.3mm
Angle of ViewFull Frame (1:1x)84.1˚
Super 3561.2˚
Focusing Range∞ to 0.25 m
Front SizeΦ95mm
Filter SizeSized for a Matte Box + 95mm adapter ring
Number of Blades11
Focus Gear MOD/Pitch0.8 / 32
Minimum Focusing Distance0.25m (10")
SizePLΦ95mm x 90.5mm
Canon EFΦ95mm x 98.5mm
Sony EΦ95mm x 124.5mm
AngleFocus Angle200°
Iris Angle40°
Weight
(without Lens cap)
PL0.9kg (2.0lbs)
Canon EF0.9kg (2.0lbs)
Sony E1.0kg (2.2lbs)

50mm T1.5

Focal Length50mm
Maximum T-StopT1.5
Aperture RangeT1.5 to T22
Max Diameter100mm
Image Circle43.3mm
Angle of ViewFull Frame (1:1x)46.2˚
Super 3531.2˚
Focusing Range∞ to 0.45 m
Front SizeΦ95mm
Filter SizeSized for a Matte Box + 95mm adapter ring
Number of Blades11
Focus Gear MOD/Pitch0.8 / 32
Minimum Focusing Distance0.45m (18")
SizePLΦ95mm x 90.5mm
Canon EFΦ95mm x 98.5mm
Sony EΦ95mm x 124.5mm
AngleFocus Angle200°
Iris Angle40°
Weight
(without Lens cap)
PL0.9kg (2.0lbs)
Canon EF0.9kg (2.0lbs)
Sony E1.0kg (2.2lbs)

85mm T1.5 Telephoto

Focal Length85mm
Maximum T-StopT1.5
Aperture RangeT1.5 to T22
Max Diameter100mm
Image Circle43.3mm
Angle of ViewFull Frame (1:1x)28.4˚
Super 3519.0˚
Focusing Range∞ to 1.12m
Front SizeΦ95mm
Filter SizeSized for a Matte Box + 95mm adapter ring
Number of Blades11
Focus Gear MOD/Pitch0.8 / 32
Minimum Focusing Distance1.12m (3.75ft)
SizePLΦ95mm x 90.5mm
Canon EFΦ95mm x 98.5mm
Sony EΦ95mm x 124.5mm
AngleFocus Angle200°
Iris Angle40°
Weight
(without Lens cap)
PL1.0kg (2.2lbs)
Canon EF1.0kg (2.2lbs)
Sony E1.1kg (2.4lbs)

XEEN CF Professional
Cinema Lenses

Luminous Font

All scales, including focal length and aperture values, are treated with bright fluorescent paint for convenient use, even in low light environments

X-Coating

X-Coating provides a distinctive look by controlling internal reflection, flare, and ghosting, and produces dramatic images.

11 Sheet Aperture

11 sheets are applied for bokeh close to original and beautiful background blur.

Compatible with Large Image Sensors

Compatible with the latest cameras that adopt large image sensors such as Full Frame, Large Format, and Vista Vision

Ø 95mm Front Size

Designed to 95mm standard front diameter size it is compact in size and easily compatible with Matte Box

PL, EF, E mount

Three mount options for mounting on a variety of cameras
* LPL mounting is available when using an adapter

Improvement of Focus, Aperture Gear usability

Focus ring and aperture ring locations are uniform across all models, gear design and weight were improved for rotation.

Wide Focus Gear Rotation Angle

200° wide angle of rotation enables fine focus adjustment.

Bidirectional Scale

The focus and aperture values are displayed on both sides of the lens, enabling easy verification and operation from either side.
