100mm T3.1 Full Frame Macro Cine DS - Rokinon
100mm T3.1 Full Frame Macro Cine DS
100mm T3.1 Full Frame Macro Cine DS - Rokinon
100mm T3.1 Full Frame Macro Cine DS - Rokinon
100mm T3.1 Full Frame Macro Cine DS - Rokinon
100mm T3.1 Full Frame Macro Cine DS - Rokinon
100mm T3.1 Full Frame Macro Cine DS - Rokinon
100mm T3.1 Full Frame Macro Cine DS - Rokinon
100mm T3.1 Full Frame Macro Cine DS - Rokinon

100mm T3.1 Full Frame Macro Cine DS

DS100M-C

Regular price $649.00 Sale price$429.00
/
Shipping calculated at checkout.
Mount

Model: DS100M-C

UPC: 0-84438-76444-4

Focal Length: 100mm

Maximum Aperture: T3.1

Coverage: Full Frame (FX)

Optical Construction: 15 Glass Elements in 12 Groups

Aperture Range: T3.1 to T32

Diaphragm Blades: 9

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 1.0ft (0.307m)

Filter Size: 67mm

Lens Hood: Removable

Maximum Diameter: 3.2” (82mm)

Weight: 25.57oz (725g)

Length: 4.85” (123.1mm)

Model: DS100M-MFT

UPC: 0-84438-76445-1

Focal Length: 100mm

Maximum Aperture: T3.1

Coverage: Full Frame (FX)

Optical Construction: 15 Glass Elements in 12 Groups

Aperture Range: T3.1 to T32

Diaphragm Blades: 9

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 1.0ft (0.307m)

Filter Size: 67mm

Lens Hood: Removable

Maximum Diameter: 3.2” (82mm)

Weight: 25.75oz (730g)

Length: 5.82” (147.9mm)

Model: DS100M-N

UPC: 0-84438-76446-8

Focal Length: 100mm

Maximum Aperture: T3.1

Coverage: Full Frame (FX)

Optical Construction: 15 Glass Elements in 12 Groups

Aperture Range: T3.1 to T32

Diaphragm Blades: 9

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 1.0ft (0.307m)

Filter Size: 67mm

Lens Hood: Removable

Maximum Diameter: 3.2” (82mm)

Weight: 25.05oz (710g)

Length: 4.75” (120.6mm)

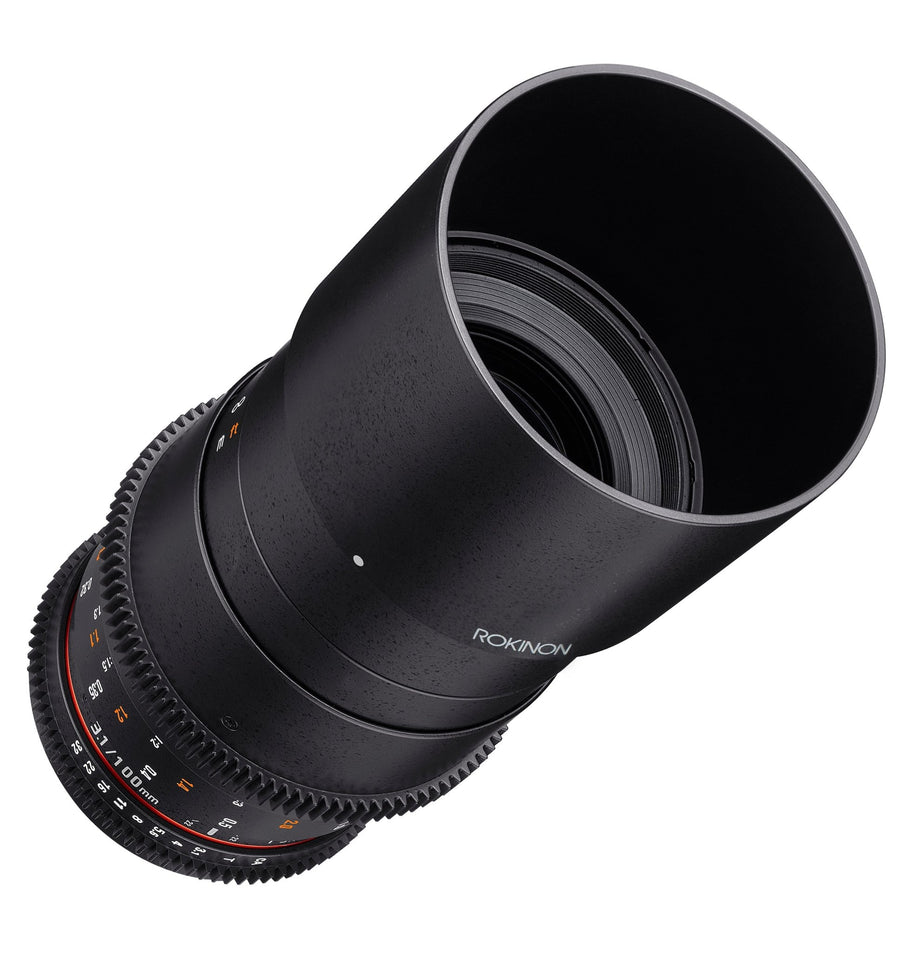

※ This product image is a Canon EF mount lens. Size and design may vary depending on the mount of a lens

Utilizing a multi-layer coating process for consistent color rendition from lens to lens, the Rokinon 100mm T3.1 VDSLR ED UMC MACRO answers the challenge of assembling a set of lenses over time. Features industry standard geared focus and iris rings that share common position with other Rokinon VDSLR lenses. To aid focus pullers who have to work both sides of the lens, the aperture and focus scales are marked on both sides of the lens.

This 100mm lens produces a 24.8° angle-of-view when used with a full-frame sensor camera or a 35mm SLR. The 15 glass elements in 12 groups render sharply defined images with a minimum of distortion and chromatic aberrations, with a minimum focus distance of 1' from the lens. A removable lens hood provides flare protection when shooting without a matte box, and the lens's threaded front accepts 67mm filter rings.

  • Ultra Multi Coated lenses minimize flare and ghosting, and the lenses are color matched to a standard eliminating the need to acquire an entire set of lenses at the same time.
  • Industry-standard gearing for focus and aperture rings. Each lens in the Rokinon DS series shares common focus and iris gear ring positions, which speeds up lens changes as accessories such as follow focus units or iris motors don't have to be re-positioned.
  • Declicked aperture ring for smooth iris pulls.
  • A removable lens hood provides flare protection without a matte box.
  • The lens opens up to T3.1, creating extremely shallow depth of field.

User Manual Download

Specifications

Specifications100mm T3.1 VDSLR ED UMC MACRO
Aperture RangeT3.1 ~ T32
Optical
Construction
15 ELEMENTS IN 12 GROUPS
Minimum
Focusing Distance
0.307m (1.0ft)
Filter Size67.0mm
Maximum Diameter81.6mm
MountNikon FCanon EFSony EMicro 4/3
Angle Of ViewFull Frame24.8˚24.8˚24.8˚-
ASP-C16.4˚15.4˚16.4˚-
FOUR-THIRDS
4/3”
---12.6˚
Length (mm)

120.6mm123.1mm149.1mm147.9mm
Weight (g)710g725g735g730g
GearModule0.8mm
A7mm
B4mm
C43.8mm
D8mm10.5mm36.5mm35.3mm
Focus Ring Diameter81.6mm
Aperture Ring Diameter70.4mm73.6mm

De-clicked aperture and calibrated in T-stops

Apertures are de-clicked for precise, smooth and silent operation. Calibrated in T-stops to provide accurate and consistent exposure.

Industry-standard gearing for focus and aperture rings

Each lens in the Rokinon DS series shares common focus and iris gear ring positions, which speeds up lens changes as accessories such as follow focus units or iris motors don't have to be re-positioned.

Dual sided lens markings

To aid focus pullers who have to work both sides of the lens, the aperture and focus scales are marked on both sides of the lens.
