$379.00

10mm F2.8 Ultra Wide Angle

+

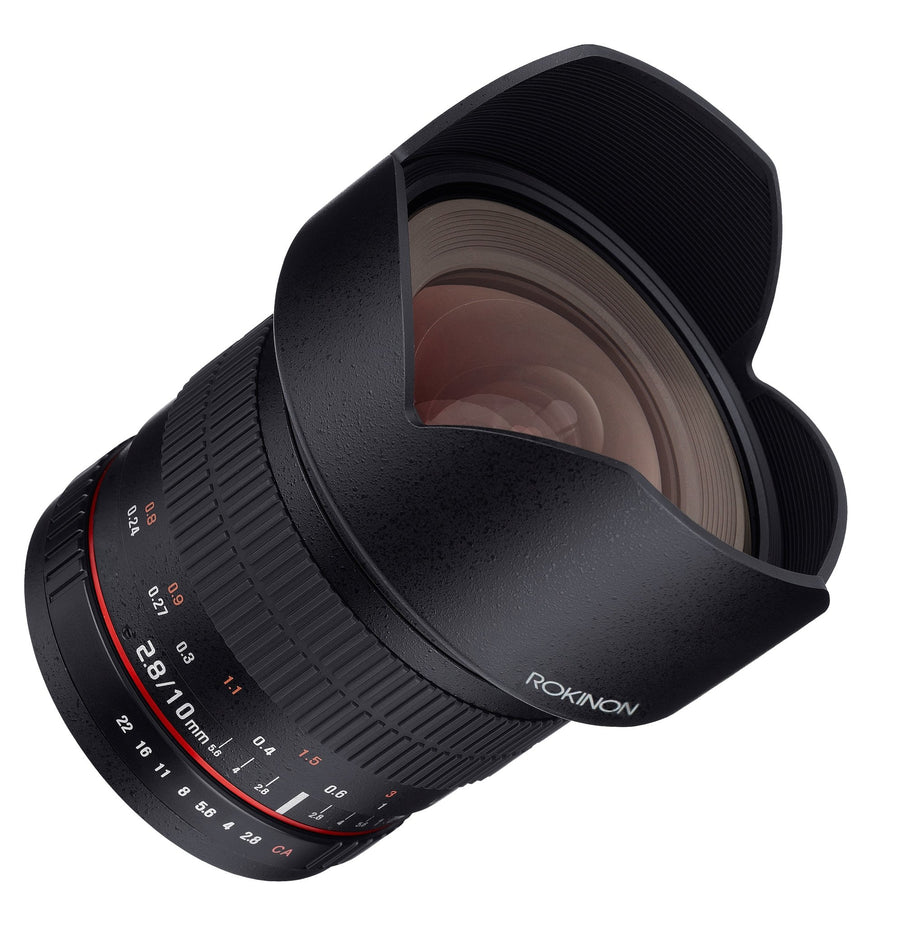

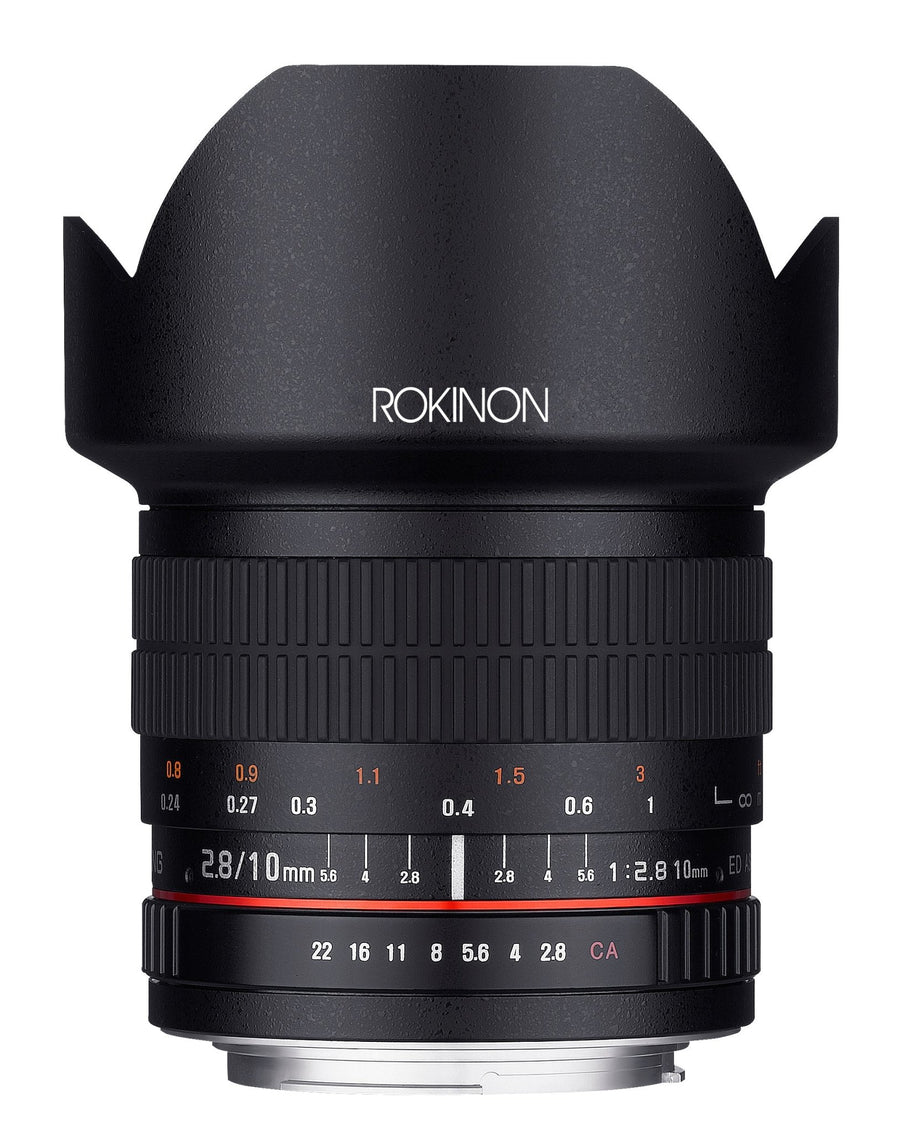

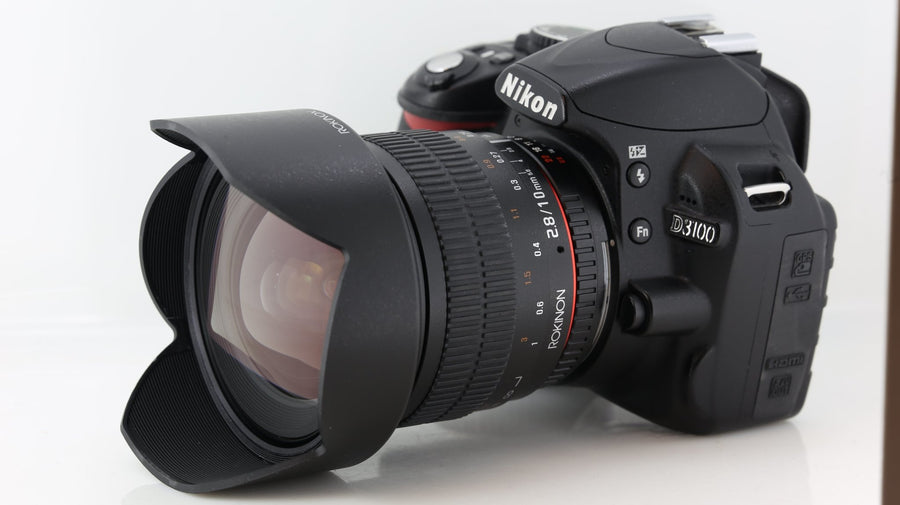

The Rokinon 10mm f/2.8 ED AS NCS CS Lens is a prime, manual focus wide-angle lens designed specifically for use with APS-C sized image sensors. Providing a 35mm-equivalent focal length of 16mm and a broad 105.9° angle of view, this lens is ideally suited for interior, architectural, and landscape photography applications. One extra-low dispersion element and two aspherical elements have been incorporated into the optical design to minimize chromatic aberrations and distortion in order to produce sharper images. Additionally, a Nano Coating System (NCS) has been applied to the lens elements in order to reduce surface reflections and prevent lens flare and ghosting for improved light transmission and more contrast-rich imagery.

  • Prime wide-angle lens provides a 35mm-equivalent focal length of 16mm, making it ideally suited for indoor, architectural, and landscape subjects.
    • Fast f/2.8 maximum aperture benefits working in low-light conditions.
      • Manual focus design permits selective control over focus placement.
        • One extra-low dispersion element and two aspherical elements reduce chromatic aberrations and distortions in order to produce sharper images.
          • Nano Coating System improves light transmission and suppresses lens flare and ghosting for more contrast-rich, color-neutral images.

          User Manual Download

          SPECIFICATIONS 1:2.8 10mm ED AS NCS CS
          APERTURE RANGE F2.8 ~ 22
          OPTICAL
          CONSTRUCTION
          14 ELEMENTS IN 9 GROUPS
          (2 ASPHERICAL)
          MINIMUM
          FOCUSING DISTANCE
          0.24m
          FILTER SIZE -
          MAXIMUM DIAMETER Φ87mm
          MOUNT CANON
          EOS
          NIKON F with
          AE
          PENTAX
          K
          CANON
          M
          FUJIFILM
          X
          SONY
          E
          MICRO
          4/3
          ANGLE OF VIEW ASP-C 105.9˚ 109.5˚ 109.5˚ 105.9˚ 109.5˚ 109.5˚ -
          FOUR-THIRDS
          4/3”
          - - - - - - 93.4˚
          LENGTH (mm) 106.1 103.6 104.6 132 132.4 132.1 130.9
          WEIGHT (g) 590 580 580 620 625 620 620
          FUNCTION A / S / M / P mode (NIKON F with AE)

          Model: 10M-C

          UPC: 0-84438-76213-6

          Focal Length: 10mm

          Maximum Aperture: F2.8

          Coverage: APS-C/Four Thirds

          Optical Construction: 14 Glass Elements In 9 Groups

          Aperture Range: F2.8 to F22

          Diaphragm Blades: 6

          Coating: Nano Coating System

          Minimum Focusing Distance: 9.45” (0.24m)

          Filter Size: n/a

          Lens Hood: Built-In Petal Shaped

          Maximum Diameter: 3.43” (87mm)

          Weight: 20.8oz (590g)

          Length: 4.18” (106.1mm)

          Model: 10MAF-N

          UPC: 0-84438-76214-3

          Focal Length: 10mm

          Maximum Aperture: F2.8

          Coverage: APS-C/Four Thirds

          Optical Construction: 14 Glass Elements In 9 Groups

          Aperture Range: F2.8 to F22

          Diaphragm Blades: 6

          Coating: Nano Coating System

          Minimum Focusing Distance: 9.45” (0.24m)

          Filter Size: n/a

          Lens Hood: Built-In Petal Shaped

          Maximum Diameter: 3.43” (87mm)

          Weight: 20.5oz (580g)

          Length: 4.08” (103.6mm)

          Model: 10M-P

          UPC: 0-84438-76216-7

          Focal Length: 10mm

          Maximum Aperture: F2.8

          Coverage: APS-C/Four Thirds

          Optical Construction: 14 Glass Elements In 9 Groups

          Aperture Range: F2.8 to F22

          Diaphragm Blades: 6

          Coating: Nano Coating System

          Minimum Focusing Distance: 9.45” (0.24m)

          Filter Size: n/a

          Lens Hood: Built-In Petal Shaped

          Maximum Diameter: 3.43” (87mm)

          Weight: 20.5oz (580g)

          Length: 4.12” (104.6mm)

          Model: 10M-M

          UPC: 0-84438-76218-1

          Focal Length: 10mm

          Maximum Aperture: F2.8

          Coverage: APS-C/Four Thirds

          Optical Construction: 14 Glass Elements In 9 Groups

          Aperture Range: F2.8 to F22

          Diaphragm Blades: 6

          Coating: Nano Coating System

          Minimum Focusing Distance: 9.45” (0.24m)

          Filter Size: n/a

          Lens Hood: Built-In Petal Shaped

          Maximum Diameter: 3.43” (87mm)

          Weight: 21.9oz (620g)

          Length: 5.20" (132mm)

          Model: 10M-FX

          UPC: 0-84438-76218-1

          Focal Length: 10mm

          Maximum Aperture: F2.8

          Coverage: APS-C/Four Thirds

          Optical Construction: 14 Glass Elements In 9 Groups

          Aperture Range: F2.8 to F22

          Diaphragm Blades: 6

          Coating: Nano Coating System

          Minimum Focusing Distance: 9.45” (0.24m)

          Filter Size: n/a

          Lens Hood: Built-In Petal Shaped

          Maximum Diameter: 3.43” (87mm)

          Weight: 22.0oz (625g)

          Length: 5.21” (132.4mm)

          Model: 10M-E

          UPC: 0-84438-76217-4

          Focal Length: 10mm

          Maximum Aperture: F2.8

          Coverage: APS-C/Four Thirds

          Optical Construction: 14 Glass Elements In 9 Groups

          Aperture Range: F2.8 to F22

          Diaphragm Blades: 6

          Coating: Nano Coating System

          Minimum Focusing Distance: 9.45” (0.24m)

          Filter Size: n/a

          Lens Hood: Built-In Petal Shaped

          Maximum Diameter: 3.43” (87mm)

          Weight: 21.9oz (620g)

          Length: 5.20” (132.1mm)

          Model: 10M-MFT

          UPC: 0-84438-76244-0

          Focal Length: 10mm

          Maximum Aperture: F2.8

          Coverage: APS-C/Four Thirds

          Optical Construction: 14 Glass Elements In 9 Groups

          Aperture Range: F2.8 to F22

          Diaphragm Blades: 6

          Coating: Nano Coating System

          Minimum Focusing Distance: 9.45” (0.24m)

          Filter Size: n/a

          Lens Hood: Built-In Petal Shaped

          Maximum Diameter: 3.43” (87mm)

          Weight: 21.9oz (620g)

          Length: 5.15” (130.9mm)

          Specifications

          SPECIFICATIONS 1:2.8 10mm ED AS NCS CS
          APERTURE RANGE F2.8 ~ 22
          OPTICAL
          CONSTRUCTION
          14 ELEMENTS IN 9 GROUPS
          (2 ASPHERICAL)
          MINIMUM
          FOCUSING DISTANCE
          0.24m
          FILTER SIZE -
          MAXIMUM DIAMETER Φ87mm
          MOUNT CANON
          EOS
          NIKON F with
          AE
          PENTAX
          K
          CANON
          M
          FUJIFILM
          X
          SONY
          E
          MICRO
          4/3
          ANGLE OF VIEW ASP-C 105.9˚ 109.5˚ 109.5˚ 105.9˚ 109.5˚ 109.5˚ -
          FOUR-THIRDS
          4/3”
          - - - - - - 93.4˚
          LENGTH (mm) 106.1 103.6 104.6 132 132.4 132.1 130.9
          WEIGHT (g) 590 580 580 620 625 620 620
          FUNCTION A / S / M / P mode (NIKON F with AE)

          Canon EF

          Model: 10M-C

          UPC: 0-84438-76213-6

          Focal Length: 10mm

          Maximum Aperture: F2.8

          Coverage: APS-C/Four Thirds

          Optical Construction: 14 Glass Elements In 9 Groups

          Aperture Range: F2.8 to F22

          Diaphragm Blades: 6

          Coating: Nano Coating System

          Minimum Focusing Distance: 9.45” (0.24m)

          Filter Size: n/a

          Lens Hood: Built-In Petal Shaped

          Maximum Diameter: 3.43” (87mm)

          Weight: 20.8oz (590g)

          Length: 4.18” (106.1mm)

          Nikon F with AE

          Model: 10MAF-N

          UPC: 0-84438-76214-3

          Focal Length: 10mm

          Maximum Aperture: F2.8

          Coverage: APS-C/Four Thirds

          Optical Construction: 14 Glass Elements In 9 Groups

          Aperture Range: F2.8 to F22

          Diaphragm Blades: 6

          Coating: Nano Coating System

          Minimum Focusing Distance: 9.45” (0.24m)

          Filter Size: n/a

          Lens Hood: Built-In Petal Shaped

          Maximum Diameter: 3.43” (87mm)

          Weight: 20.5oz (580g)

          Length: 4.08” (103.6mm)

          Pentax K

          Model: 10M-P

          UPC: 0-84438-76216-7

          Focal Length: 10mm

          Maximum Aperture: F2.8

          Coverage: APS-C/Four Thirds

          Optical Construction: 14 Glass Elements In 9 Groups

          Aperture Range: F2.8 to F22

          Diaphragm Blades: 6

          Coating: Nano Coating System

          Minimum Focusing Distance: 9.45” (0.24m)

          Filter Size: n/a

          Lens Hood: Built-In Petal Shaped

          Maximum Diameter: 3.43” (87mm)

          Weight: 20.5oz (580g)

          Length: 4.12” (104.6mm)

          Canon M

          Model: 10M-M

          UPC: 0-84438-76218-1

          Focal Length: 10mm

          Maximum Aperture: F2.8

          Coverage: APS-C/Four Thirds

          Optical Construction: 14 Glass Elements In 9 Groups

          Aperture Range: F2.8 to F22

          Diaphragm Blades: 6

          Coating: Nano Coating System

          Minimum Focusing Distance: 9.45” (0.24m)

          Filter Size: n/a

          Lens Hood: Built-In Petal Shaped

          Maximum Diameter: 3.43” (87mm)

          Weight: 21.9oz (620g)

          Length: 5.20" (132mm)

          Fuji X

          Model: 10M-FX

          UPC: 0-84438-76218-1

          Focal Length: 10mm

          Maximum Aperture: F2.8

          Coverage: APS-C/Four Thirds

          Optical Construction: 14 Glass Elements In 9 Groups

          Aperture Range: F2.8 to F22

          Diaphragm Blades: 6

          Coating: Nano Coating System

          Minimum Focusing Distance: 9.45” (0.24m)

          Filter Size: n/a

          Lens Hood: Built-In Petal Shaped

          Maximum Diameter: 3.43” (87mm)

          Weight: 22.0oz (625g)

          Length: 5.21” (132.4mm)

          Sony E

          Model: 10M-E

          UPC: 0-84438-76217-4

          Focal Length: 10mm

          Maximum Aperture: F2.8

          Coverage: APS-C/Four Thirds

          Optical Construction: 14 Glass Elements In 9 Groups

          Aperture Range: F2.8 to F22

          Diaphragm Blades: 6

          Coating: Nano Coating System

          Minimum Focusing Distance: 9.45” (0.24m)

          Filter Size: n/a

          Lens Hood: Built-In Petal Shaped

          Maximum Diameter: 3.43” (87mm)

          Weight: 21.9oz (620g)

          Length: 5.20” (132.1mm)

          Micro 4/3

          Model: 10M-MFT

          UPC: 0-84438-76244-0

          Focal Length: 10mm

          Maximum Aperture: F2.8

          Coverage: APS-C/Four Thirds

          Optical Construction: 14 Glass Elements In 9 Groups

          Aperture Range: F2.8 to F22

          Diaphragm Blades: 6

          Coating: Nano Coating System

          Minimum Focusing Distance: 9.45” (0.24m)

          Filter Size: n/a

          Lens Hood: Built-In Petal Shaped

          Maximum Diameter: 3.43” (87mm)

          Weight: 21.9oz (620g)

          Length: 5.15” (130.9mm)
