$2,346.00

12, 14, 24, 35mm Cine DS Lens Bundle

+

This Rokinon Bundle provides four lenses that you can use to shoot images from wide shots to portrait; it includes Rokinon's 12mm T3.1, 14mm T3.1, 24mm T1.5, and 35mm T1.5 Cine DS Lenses that feature sharp optics and similar physical characteristics for fast lens changes. TAll four of the included lenses cover full-frame-sized sensors, with the 12mm providing a fisheye effect. The lenses all feature a multi-layer coating to improve contrast and reduce flare, and each lens is compared to a standard at the factory, minimizing differences in color that may arise from the multi-layer coating process. This makes for smoother intercutting between the lenses.

Aperture and focus scales are marked on both sides of the lens, which makes it easier for a focus puller to work either side of the lens. The lenses feature a multi-layer coating providing good contrast, a sharp image, and protection from veiling glare. Industry standard focus and iris gear rings share a common position across the lenses for quick lens swaps when working with lens accessories such as follow focus units. Focus and iris are manual only with no electronic focus or iris control by the camera, and the iris ring is de-clicked, which allows you to make smooth iris pulls during a shot.

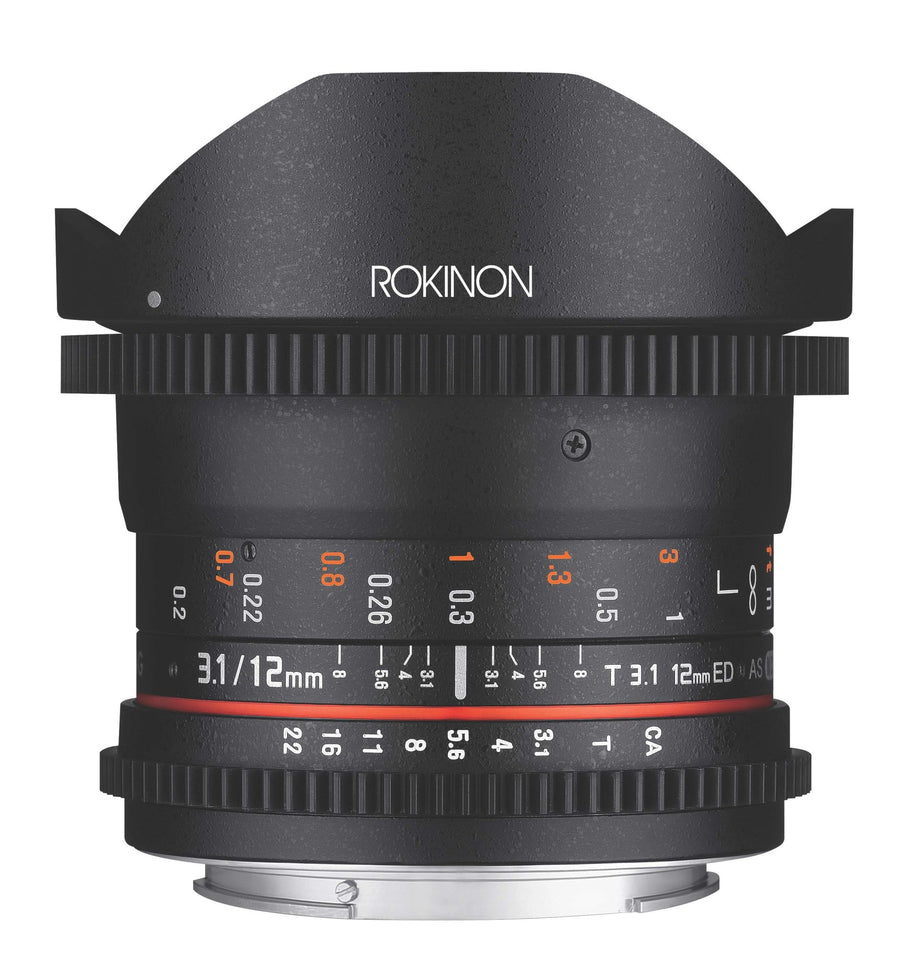

The Rokinon 12mm T3.1 VDSLR ED AS NCS is a lens optimized for digital cinematography and as such provides a de-clicked manual aperture for smooth and silent adjustment and unified focus and aperture gears for use with follow focus accessories. Also, focus, aperture, and depth of field markings are on the side of the lens to aid focus pullers who typically operate on the side of the camera. Aperture is measured in absolute T-stops to provide accurate and consistent exposure across lenses and color rendition is matched with other Rokinon VDSLRs for consistency.

This fisheye lens provides a 180º diagonal angle of view on full-frame cameras for an ultra-wide angle, distorted perspective that is useful for architectural interiors, landscapes and creative experimentation in any application. The T3.1 maximum aperture is effective in low light situations and enables some measure of shallow depth of field control.

The lens' optical design consists of 12 lens elements arranged in 8 groups including three elements made of low dispersion ED glass and two aspherical lens elements to minimize coma and chromatic aberrations. Highly effective nano crystal anti-reflection (NCS) coating applied together with UMC coatings improve light transmission and reduce ghosting. Its internal focus system does not extend the front elements during focus and minimizes the effects of lens breathing.

  • An ultra wide-angle fisheye lens with a 12mm focal length on full-frame cameras and an 19.2mm equivalency when used on APS-C and Super 35mm format cameras. Its distorted perspective is useful for interiors, landscapes, group shots and many creative wide-angle applications.
  • Extra low dispersion and aspherical lens elements reduce aberrations for sharp, color-accurate imaging.
  • Nano crystal coating and ultra multi-coating on the lens elements improves light transmission and reduces ghosting and flare.
  • Sturdy metal barrel with removable petal-shaped lens hood.
    Specifications 12mm ED AS NCS FISH-EYE LENS
    Aperture Range T3.1 ~ 22
    Optical
    Construction
    12 ELEMENTS IN 8 GROUPS
    (2 ASPHERICAL)
    Minimum
    Focusing Distance
    0.2m (0.66ft)
    Filter Size -
    Maximum Diameter 81.6mm
    Mount Nikon F Canon EF Sony E
    Angle Of View 35mm 180˚ 180˚ 180˚
    ASP-C 124.6˚ 118˚ 124.6˚
    Length (mm) 70.2mm 72.7mm 98.7mm
    Weight (g) 510g 525g 535g
    Gear Module 0.8mm
    A 6mm
    B 4mm
    C 42.8mm
    D 8mm 10.5mm 36.5mm
    Focus Ring Diameter 81.6mm
    Aperture Ring Diameter 70.4mm 73.6mm



      The Rokinon 14mm T3.1 VDSLR ED AS IF UMC II Lens was developed primarily for film and video applications. The cine version of Rokinon's 14mm lens features industry-standard gearing for the focus and aperture ring, and the aperture ring has been de-clicked for smooth iris pulls. The aperture and focus scales have also been relocated to the side of the lens, where it is easier for focus pullers to read them.

      This lens is compatible with full-frame sensors and can also be used on APS-C-sized sensors, where the 35mm-equivalent focal length will be 22.4mm. The optical construction incorporates three high refractive index elements, two extra-low dispersion elements, one hybrid aspherical elements, and one aspherical element to reduce chromatic aberration and distortion to produce sharper imagery. Additionally, a UMC coating has been applied to lens elements to minimize lens flare and ghosting for more contrast-rich images.

      • Fast T3.1 maximum aperture benefits working in low-light conditions.
      • Three high refractive index elements, two extra-low dispersion elements, one hybrid aspherical element, and one aspherical element reduce chromatic aberrations in order to produce greater sharpness and clarity.
      • UMC coating improves light transmission and suppresses lens flare and ghosting for more contrast-rich, color-neutral images.
      • Geared aperture and focus rings are compatible with standard follow focuses for greater control over adjustment.
      • De-clicked aperture ring facilitates smooth, quiet exposure adjustments during recording.
        Specifications 14mm T3.1 VDSLR ED AS IF UMC II
        Aperture range T3.1 ~ T22
        Optical
        Construction
        14 ELEMENTS IN 10 GROUPS
        (1 GLASS ASP & 1 HYBRID ASP)
        Minimum
        focusing distance
        0.28m (0.92ft)
        Filter size -
        Front diameter 87.0mm
        Mount Nikon F Canon EF Sony E
        Angle of view Full Frame
        115.7˚ 115.7˚ 115.7˚
        ASP-C 93.9˚ 89.9˚ 93.9˚
        Length (mm)
        93.6mm 96.1mm 122.1mm
        Weight (g) 605g 620g 640g
        Gear Module 0.8mm
        A 7mm
        B 4mm
        C 36.2mm
        D 8mm 10.5mm 36.5mm
        Focus Ring Diameter 73.6mm
        Aperture Ring Diameter 70.4mm 73.6mm

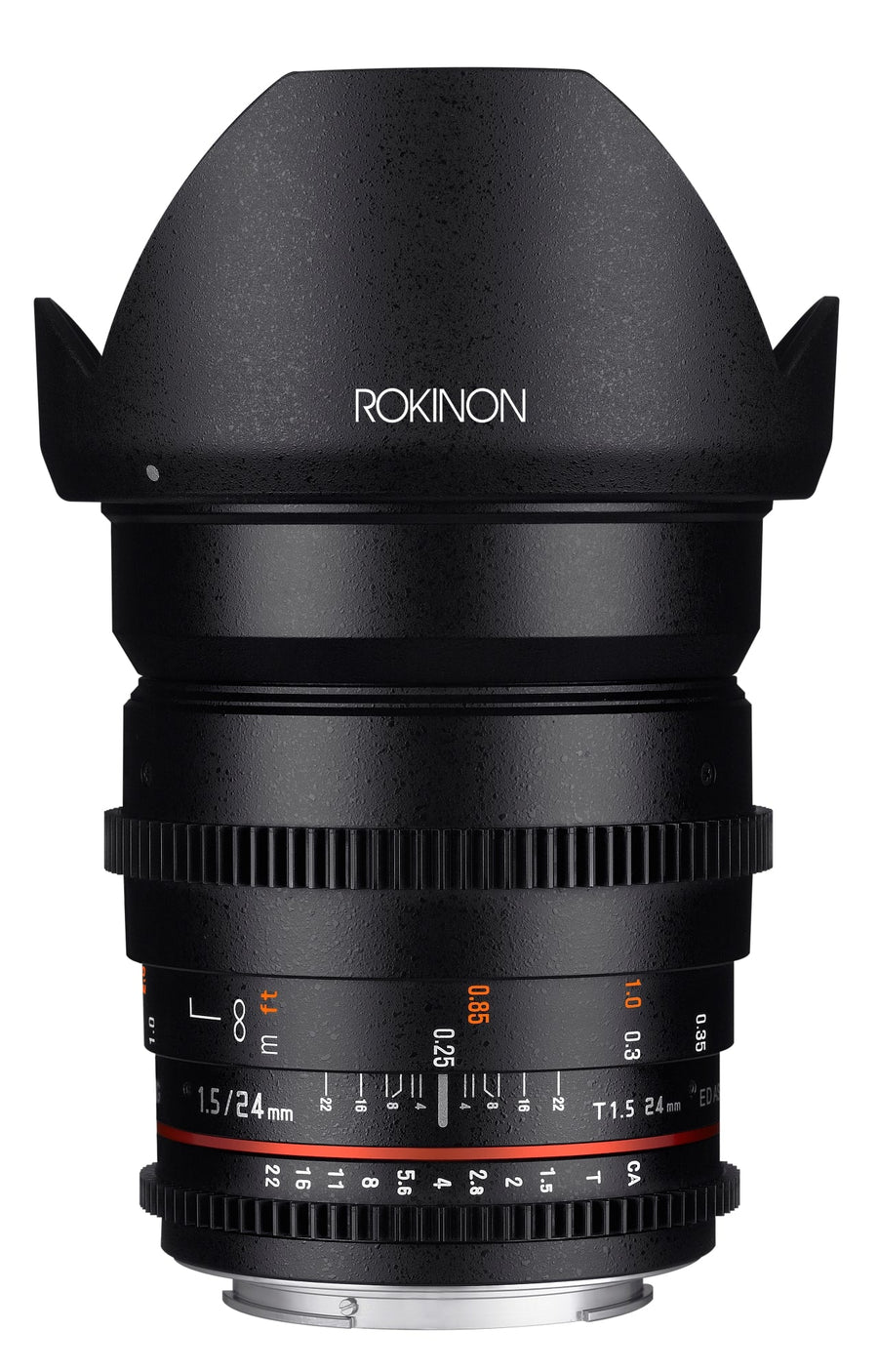

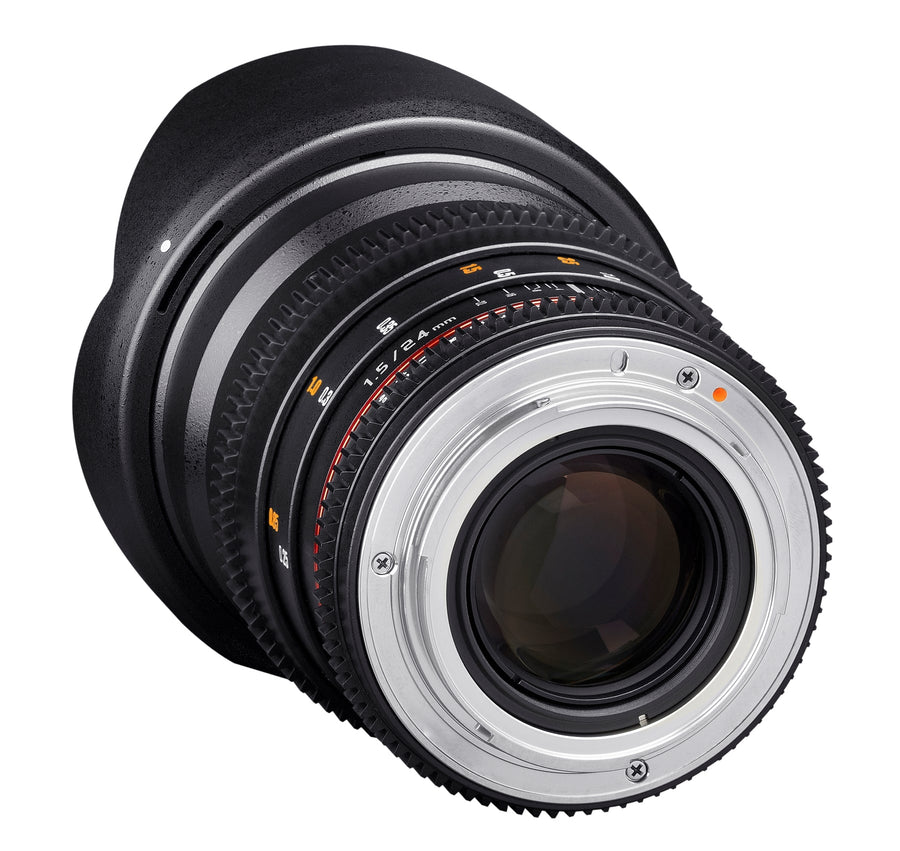

        The Rokinon 24mm T1.5 VDSLR ED AS IF UMC II is a wide angle manual focus cine lens designed for full frame sensor sizes

        Utilizing a multi-layer coating process for consistent color rendition from lens to lens the Rokinon 24mm T1.5 VDSLR ED AS IF UMC II Lens answers the challenge of assembling a set of lenses over time. Features industry standard geared focus and iris rings that share common position with other Rokinon VDSLR lenses. To aid focus pullers who have to work both sides of the lens, the aperture and focus scales are marked on both sides of the lens.

        This 24mm lens produces a 84.1° coverage when used with full frame cameras. Hybrid aspherical lenses render sharply defined images with a minimum of distortion and chromatic aberrations, with a minimum focus distance of just under 10" from the lens. A removable petal shaped lens hood provides flare protection when shooting without a matte box, the lenses threaded front accepts a 77mm filter ring.

        Please note that some cameras may require that Shutter Lock be disengaged when using this lens.

        • 24mm lens with approximate angle of view of:
        • Full-Frame: 84.1°
        • APS-C: 57.6°
        • Ultra Multi Coated lenses minimize flare and ghosting, and the lenses are color matched to a standard eliminating the need to acquire an entire set of lenses at the same time.
        • Industry-standard gearing for focus and aperture rings. Each lens in the Rokinon DS series share common focus and iris gear ring positions, which speeds up lens changes as accessories such as follow focus units or iris motors don't have to be re-positioned.
        • "De-clicked" aperture ring for smooth iris pulls.
        • A minimum focusing distance of 9.8" allows you to get up close to your subject.
        • A removable petal-type lens hood provides flare protection without a matte box.
          Specifications 24mm ED AS IF UMC II
          Aperture Range T1.5 ~ T22
          Optical
          Construction
          13 ELEMENTS IN 12 GROUPS
          (2 ASPHERICAL)
          Minimum
          Focusing Distance
          0.25m (0.82ft)
          Filter Size 77.0mm
          Maximum Diameter 83.0mm
          Mount Nikon F Canon EF Sony E
          Angle Of View Full Frame
          84.1˚ 84.1˚ 84.1˚
          ASP-C 61.8˚ 57.6˚ 61.8˚
          Length (mm)
          95mm 97.5mm 123.5mm
          Weight (g) 600g 615g 640g
          Gear Module 0.8mm
          A 7mm
          B 4mm
          C 43.8mm
          D 8mm 10.5mm 36.5mm
          Focus Ring Diameter 81.6mm
          Aperture Ring Diameter 70.4mm 73.6mm



          The Rokinon 35mm T1.5 VDSLR AS UMC II Lens was developed primarily for film and video applications. The cine version of Rokinon's 35mm lens features industry-standard gearing for the focus and aperture ring, and the aperture ring has been de-clicked for smooth iris pulls. The aperture and focus scales have also been relocated to the side of the lens, where it is easier for focus pullers to read them.

          This lens is compatible with full-frame sensors and can also be used on APS-C-sized sensors, where the 35mm-equivalent focal length will be 56mm. The optical construction incorporates two high refractive index elements and one aspherical element to reduce chromatic aberrations and distortion to produce sharper imagery. Additionally, a UMC coating has been applied to lens elements to minimize lens flare and ghosting for more contrast-rich images.

          • Wide-angle prime lens is well-suited to use in a broad variety of shooting situations.
          • Fast T1.5 maximum aperture benefits working in low-light conditions and provides greater control over focus placement for shallow depth of field applications.
          • Two high refractive index elements and one aspherical element reduce chromatic aberrations in order to produce greater sharpness and clarity.
          • UMC coating improves light transmission and suppresses lens flare and ghosting for more contrast-rich, color-neutral images.
          • Geared aperture and focus rings are compatible with standard follow focuses for greater control over adjustment.
          • De-clicked aperture ring facilitates smooth, quiet exposure adjustments during recording.



          Specifications 35mm T1.5
          Aperture Range T1.5 ~ 22
          Optical
          Construction
          12 ELEMENTS IN 10 GROUPS
          (1 Aspherical, 1 High Refractive Index)
          Number of Blades 8
          Minimum
          Focusing Distance
          0.3m (12")
          Filter Size 77mm
          Maximum Diameter 83mm
          Mount Nikon F Canon EF Sony E
          Angle Of View Full Frame 63.1˚ 63.1˚ 63.1˚
          ASP-C 43.2˚ 40.8˚ 43.2˚
          Length (mm) 109mm 111.5mm 137.5mm
          Weight (g) 685g 700g 720g
          Gear Module 0.8mm
          A 7mm
          B 4mm
          C 43.8mm
          D 8mm 10.5mm 36.5mm
          Focus Ring Diameter 81.6mm
          Aperture Ring Diameter 70.4mm 73.6mm

          12mm T3.1 Full Frame Fisheye

          The Rokinon 12mm T3.1 VDSLR ED AS NCS is a lens optimized for digital cinematography and as such provides a de-clicked manual aperture for smooth and silent adjustment and unified focus and aperture gears for use with follow focus accessories. Also, focus, aperture, and depth of field markings are on the side of the lens to aid focus pullers who typically operate on the side of the camera. Aperture is measured in absolute T-stops to provide accurate and consistent exposure across lenses and color rendition is matched with other Rokinon VDSLRs for consistency.

          This fisheye lens provides a 180º diagonal angle of view on full-frame cameras for an ultra-wide angle, distorted perspective that is useful for architectural interiors, landscapes and creative experimentation in any application. The T3.1 maximum aperture is effective in low light situations and enables some measure of shallow depth of field control.

          The lens' optical design consists of 12 lens elements arranged in 8 groups including three elements made of low dispersion ED glass and two aspherical lens elements to minimize coma and chromatic aberrations. Highly effective nano crystal anti-reflection (NCS) coating applied together with UMC coatings improve light transmission and reduce ghosting. Its internal focus system does not extend the front elements during focus and minimizes the effects of lens breathing.

          • An ultra wide-angle fisheye lens with a 12mm focal length on full-frame cameras and an 19.2mm equivalency when used on APS-C and Super 35mm format cameras. Its distorted perspective is useful for interiors, landscapes, group shots and many creative wide-angle applications.
          • Extra low dispersion and aspherical lens elements reduce aberrations for sharp, color-accurate imaging.
          • Nano crystal coating and ultra multi-coating on the lens elements improves light transmission and reduces ghosting and flare.
          • Sturdy metal barrel with removable petal-shaped lens hood.
            Specifications 12mm ED AS NCS FISH-EYE LENS
            Aperture Range T3.1 ~ 22
            Optical
            Construction
            12 ELEMENTS IN 8 GROUPS
            (2 ASPHERICAL)
            Minimum
            Focusing Distance
            0.2m (0.66ft)
            Filter Size -
            Maximum Diameter 81.6mm
            Mount Nikon F Canon EF Sony E
            Angle Of View 35mm 180˚ 180˚ 180˚
            ASP-C 124.6˚ 118˚ 124.6˚
            Length (mm) 70.2mm 72.7mm 98.7mm
            Weight (g) 510g 525g 535g
            Gear Module 0.8mm
            A 6mm
            B 4mm
            C 42.8mm
            D 8mm 10.5mm 36.5mm
            Focus Ring Diameter 81.6mm
            Aperture Ring Diameter 70.4mm 73.6mm



              14mm T3.1 Full Frame Ultra Wide Angle

              The Rokinon 14mm T3.1 VDSLR ED AS IF UMC II Lens was developed primarily for film and video applications. The cine version of Rokinon's 14mm lens features industry-standard gearing for the focus and aperture ring, and the aperture ring has been de-clicked for smooth iris pulls. The aperture and focus scales have also been relocated to the side of the lens, where it is easier for focus pullers to read them.

              This lens is compatible with full-frame sensors and can also be used on APS-C-sized sensors, where the 35mm-equivalent focal length will be 22.4mm. The optical construction incorporates three high refractive index elements, two extra-low dispersion elements, one hybrid aspherical elements, and one aspherical element to reduce chromatic aberration and distortion to produce sharper imagery. Additionally, a UMC coating has been applied to lens elements to minimize lens flare and ghosting for more contrast-rich images.

              • Fast T3.1 maximum aperture benefits working in low-light conditions.
              • Three high refractive index elements, two extra-low dispersion elements, one hybrid aspherical element, and one aspherical element reduce chromatic aberrations in order to produce greater sharpness and clarity.
              • UMC coating improves light transmission and suppresses lens flare and ghosting for more contrast-rich, color-neutral images.
              • Geared aperture and focus rings are compatible with standard follow focuses for greater control over adjustment.
              • De-clicked aperture ring facilitates smooth, quiet exposure adjustments during recording.
                Specifications 14mm T3.1 VDSLR ED AS IF UMC II
                Aperture range T3.1 ~ T22
                Optical
                Construction
                14 ELEMENTS IN 10 GROUPS
                (1 GLASS ASP & 1 HYBRID ASP)
                Minimum
                focusing distance
                0.28m (0.92ft)
                Filter size -
                Front diameter 87.0mm
                Mount Nikon F Canon EF Sony E
                Angle of view Full Frame
                115.7˚ 115.7˚ 115.7˚
                ASP-C 93.9˚ 89.9˚ 93.9˚
                Length (mm)
                93.6mm 96.1mm 122.1mm
                Weight (g) 605g 620g 640g
                Gear Module 0.8mm
                A 7mm
                B 4mm
                C 36.2mm
                D 8mm 10.5mm 36.5mm
                Focus Ring Diameter 73.6mm
                Aperture Ring Diameter 70.4mm 73.6mm



                24mm T1.5 Full Frame Wide Angle

                The Rokinon 24mm T1.5 VDSLR ED AS IF UMC II is a wide angle manual focus cine lens designed for full frame sensor sizes

                Utilizing a multi-layer coating process for consistent color rendition from lens to lens the Rokinon 24mm T1.5 VDSLR ED AS IF UMC II Lens answers the challenge of assembling a set of lenses over time. Features industry standard geared focus and iris rings that share common position with other Rokinon VDSLR lenses. To aid focus pullers who have to work both sides of the lens, the aperture and focus scales are marked on both sides of the lens.

                This 24mm lens produces a 84.1° coverage when used with full frame cameras. Hybrid aspherical lenses render sharply defined images with a minimum of distortion and chromatic aberrations, with a minimum focus distance of just under 10" from the lens. A removable petal shaped lens hood provides flare protection when shooting without a matte box, the lenses threaded front accepts a 77mm filter ring.

                Please note that some cameras may require that Shutter Lock be disengaged when using this lens.

                • 24mm lens with approximate angle of view of:
                • Full-Frame: 84.1°
                • APS-C: 57.6°
                • Ultra Multi Coated lenses minimize flare and ghosting, and the lenses are color matched to a standard eliminating the need to acquire an entire set of lenses at the same time.
                • Industry-standard gearing for focus and aperture rings. Each lens in the Rokinon DS series share common focus and iris gear ring positions, which speeds up lens changes as accessories such as follow focus units or iris motors don't have to be re-positioned.
                • "De-clicked" aperture ring for smooth iris pulls.
                • A minimum focusing distance of 9.8" allows you to get up close to your subject.
                • A removable petal-type lens hood provides flare protection without a matte box.
                  Specifications 24mm ED AS IF UMC II
                  Aperture Range T1.5 ~ T22
                  Optical
                  Construction
                  13 ELEMENTS IN 12 GROUPS
                  (2 ASPHERICAL)
                  Minimum
                  Focusing Distance
                  0.25m (0.82ft)
                  Filter Size 77.0mm
                  Maximum Diameter 83.0mm
                  Mount Nikon F Canon EF Sony E
                  Angle Of View Full Frame
                  84.1˚ 84.1˚ 84.1˚
                  ASP-C 61.8˚ 57.6˚ 61.8˚
                  Length (mm)
                  95mm 97.5mm 123.5mm
                  Weight (g) 600g 615g 640g
                  Gear Module 0.8mm
                  A 7mm
                  B 4mm
                  C 43.8mm
                  D 8mm 10.5mm 36.5mm
                  Focus Ring Diameter 81.6mm
                  Aperture Ring Diameter 70.4mm 73.6mm



                  35mm T1.5 Full Frame Wide Angle

                  The Rokinon 35mm T1.5 VDSLR AS UMC II Lens was developed primarily for film and video applications. The cine version of Rokinon's 35mm lens features industry-standard gearing for the focus and aperture ring, and the aperture ring has been de-clicked for smooth iris pulls. The aperture and focus scales have also been relocated to the side of the lens, where it is easier for focus pullers to read them.

                  This lens is compatible with full-frame sensors and can also be used on APS-C-sized sensors, where the 35mm-equivalent focal length will be 56mm. The optical construction incorporates two high refractive index elements and one aspherical element to reduce chromatic aberrations and distortion to produce sharper imagery. Additionally, a UMC coating has been applied to lens elements to minimize lens flare and ghosting for more contrast-rich images.

                  • Wide-angle prime lens is well-suited to use in a broad variety of shooting situations.
                  • Fast T1.5 maximum aperture benefits working in low-light conditions and provides greater control over focus placement for shallow depth of field applications.
                  • Two high refractive index elements and one aspherical element reduce chromatic aberrations in order to produce greater sharpness and clarity.
                  • UMC coating improves light transmission and suppresses lens flare and ghosting for more contrast-rich, color-neutral images.
                  • Geared aperture and focus rings are compatible with standard follow focuses for greater control over adjustment.
                  • De-clicked aperture ring facilitates smooth, quiet exposure adjustments during recording.



                  Specifications 35mm T1.5
                  Aperture Range T1.5 ~ 22
                  Optical
                  Construction
                  12 ELEMENTS IN 10 GROUPS
                  (1 Aspherical, 1 High Refractive Index)
                  Number of Blades 8
                  Minimum
                  Focusing Distance
                  0.3m (12")
                  Filter Size 77mm
                  Maximum Diameter 83mm
                  Mount Nikon F Canon EF Sony E
                  Angle Of View Full Frame 63.1˚ 63.1˚ 63.1˚
                  ASP-C 43.2˚ 40.8˚ 43.2˚
                  Length (mm) 109mm 111.5mm 137.5mm
                  Weight (g) 685g 700g 720g
                  Gear Module 0.8mm
                  A 7mm
                  B 4mm
                  C 43.8mm
                  D 8mm 10.5mm 36.5mm
                  Focus Ring Diameter 81.6mm
                  Aperture Ring Diameter 70.4mm 73.6mm
