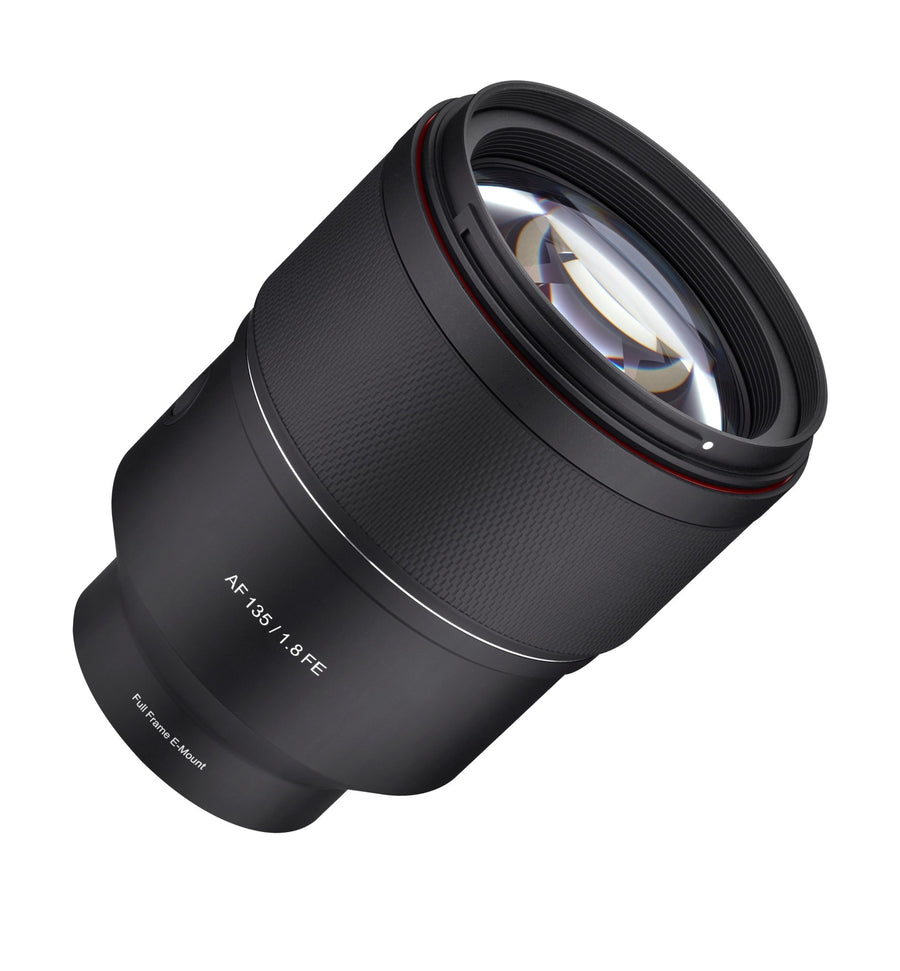

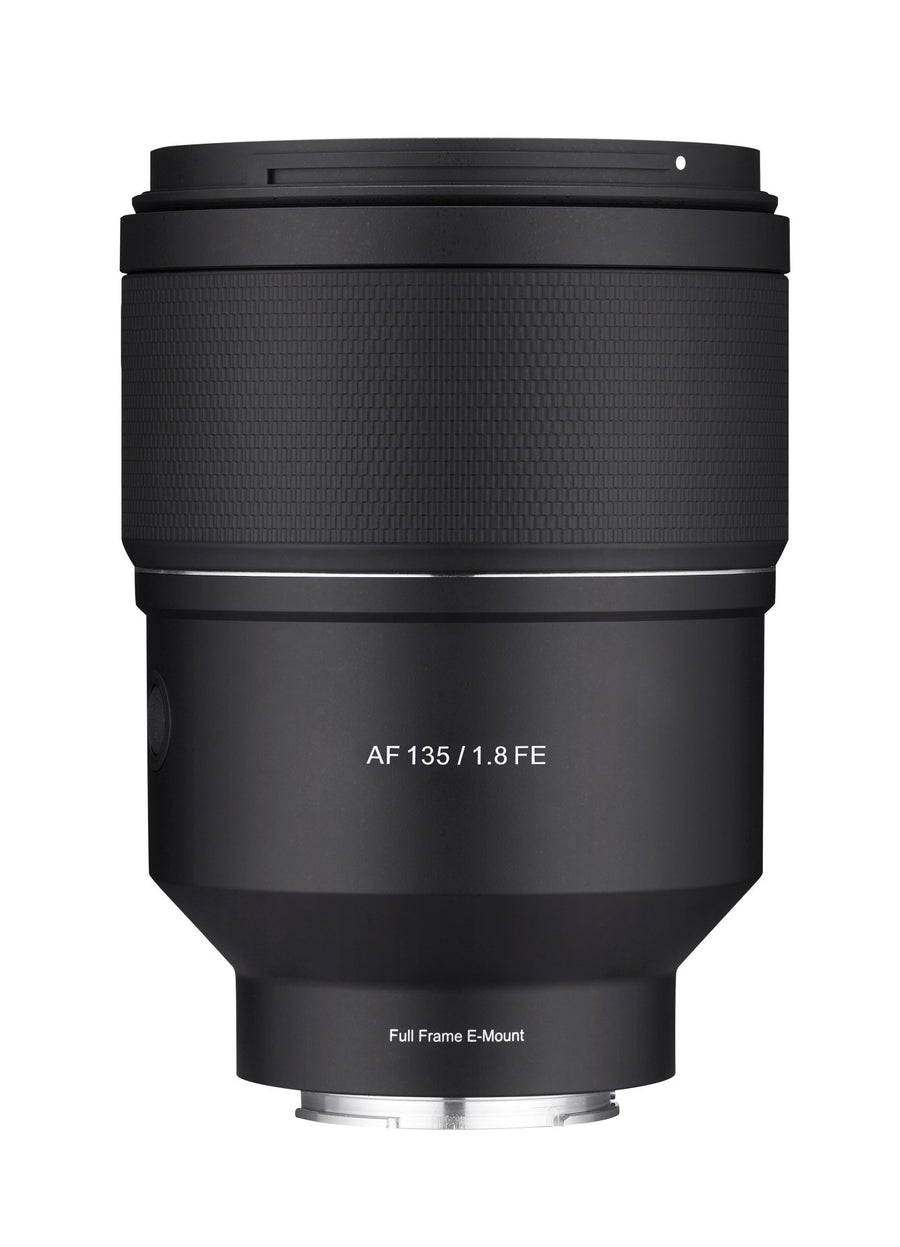

The new AF 135mm F1.8 E telephoto lens is optimised for portraits, astrophotography, landscapes and video shooting. It includes Rokinon's key features, such as: focus lock button, custom switch, and focus range limiter switch.
With Rokinon's announcement of the new AF 135mm F1.8 E, its Auto Focus F1.8 E series now includes: 24mm, 35mm, 45mm, 75mm and 135mm focal lengths, completing the lineup from wide-angle to telephoto.
AF 135mm F1.8 FE Key Features
Superb Resolution
Unsparing application of Rokinon's most advanced optical technologies has produced a large-aperture prime telephoto lens that delivers outstanding corner-to-corner resolution. The AF 135mm F1.8 FE delivers an 18.9˚ angle of view for full-frame and 12.5˚ for APS-C. It features a bright maximum aperture of F1.8 throughout the entire image, as favoured by full-frame camera users. In particular, optimum resolution is achieved through the optical design of 13 elements in 11 groups (1 U-ASP, 2 HR and 3 ED). Combined with Sony's full-frame image sensor, this lens delivers superior sharpness and contrast in all areas of the image.
Able to deliver extremely narrow depth of field, with beautiful bokeh
The AF 135mm F1.8 FE uses a large-diameter aperture to provide smooth background blur. It effectively allows separation of the subject from the background, by using a shallow depth of field. Also, it is equipped with a UA (Ultra-precision Aspherical) lens, which delivers natural and refined bokeh. Using this smooth bokeh, you can freely create images highlighting your subjects against stunning backgrounds, whether shooting portraits, close-ups or even cityscapes.
Fast and Quiet Auto Focus Performance
Tracking the subject accurately and quickly, the AF also operates quietly and smoothly when shooting video. Rokinon's Linear STM (Stepping Motor) satisfies both photographers and videographers with quieter and more accurate control of the focusing lens groups.
Enhanced Operability and Reliability
Important features include customisable: A Focus Hold button, Custom Switch and Focus Range Limiter. Overall, this is a lens that meets or exceeds professional requirement for control and reliability for both stills and movies.
1) Focus Hold Button
Pressing this button on the lens will keep the lens locked to that focusing distance. You can assign functions such as Eye AF in settings on the camera body.
2) Custom Switch
There is a custom switch, which can be set to allow adjustment of the aperture silently by rotating the focus ring. Using the optional Lens Station, you can set up the mode to suit your own preference*. (*More functions will be added through firmware updates in the future.)
3) Focus Range Limiter switch
The Focus Range Limiter only operates in AF mode.
• It is useful when the distance from an object has been determined.
• Move the Focus Range Limiter forward or backward to select the focus range.
- FULL: The AF range is set to infinity at a minimum focus distance of 0.69m. (AF search may take slightly longer.)
- 0.69m - 2m: The AF range is set between 0.69m and 2m, which is suitable for close-up shooting.
- 1.5m - ∞: The AF range is set from 1.5m to infinity, which is suitable for normal shooting.
Short minimum focal distance of 0.69m
Although this is a 135mm telephoto lens that effectively controls aberration at all focusing distances, Rokinon has made it possible to achieve a minimum focus distance of just 69cm (2.26ft) and a maximum magnification of 0.243x for close-up photography. Small accessories and other subjects can be captured with remarkable resolution and beautiful, soft background bokeh.
Modern design and weather-sealing
The AF 135mm F1.8 FE has been developed and enhanced, taking into consideration not only the design features but also the user's shooting environment. It has a micro-patterned rubber focus ring, which feels great to operate and the weather-sealing protects the lens from light rain, snow and dust.
Specifications
Model Name | AF 135mm F1.8 E | ||
Aperture Range | F1.8 ~ 22 | ||
Lens Optical | Construction | 13 Elements in 11 Groups | |
Special Elements | 1 U-ASP, 2 HR, 3 ED | ||
Coating | UMC | ||
Minimum Focusing Distance | 0.69m (2.26ft) | ||
Magnification Ratio | x 0.243 | ||
Filter Size (mm) | Φ 82.0 | ||
Maximum Diameter (mm) | Φ 93.4 | ||
Number of Blades | 11 | ||
Mount | Sony E | ||
Angle of View | Full Frame | 18.9˚ | |
APS-C | 12.5˚ | ||
Length | 129.6mm / 5.1in | ||
Weight | 772g / 27.2oz | ||
Weather Sealing | Yes | ||
Custom Mode Switch | Yes | ||
Focus Hold Button | Yes | ||
Focus-Range Limiter | Yes | ||
AF Motor | Linear STM |
MTF Chart
Optical Construction
Features
Excellent Expression of F1.8 Telephoto Prime Lens
Superb Resolution in Lightweight 135mm
Amazing Performance from Rokinon's Advanced Optical Design
Extremely Narrow Depth of Field and Breathtaking Bokeh
Short Minimum Focusing Distance
Lens for Both Photographers and Videographers
Advanced Fast and Quiet AF for Stills and Movies
Enhanced Usability with Various Features
Customized Buttons to Maximize the Operability and Reliability
The AF 135mm F1.8 E features 3 different customized buttons such as Focus Hold Button, Custom Switch, and Focus Range Limiter Switch to enhance usability.
Focus Hold Button
Pressing this button on the lens will keep the lens locked to that focusing distance. You can assign functions such as Eye AF in settings on the camera body.
Custom Switch
There is a custom switch, which can be set to allow adjustment of the aperture silently by rotating the focus ring. Using the optional Lens Station, you can set up the mode to suit your own preference*.
*More functions will be added through firmware updates in the future.
Focus Range Limiter Switch
The Focus Range Limiter only operates in AF mode.
• It is useful when the distance from an object has been determined.
• Move the Focus Range Limiter forward or backward to select the focus range.
- FULL: The AF range is set to infinity at a minimum focus distance of 0.69m.
(AF search may take slightly longer.)
- 0.69m - 2m: The AF range is set between 0.69m and 2m, which is suitable for close-up shooting.
- 1.5m - ∞: The AF range is set from 1.5m to infinity, which is suitable for normal shooting.
