$599.00

135mm T2.2 Full Frame Telephoto Cine DS

+

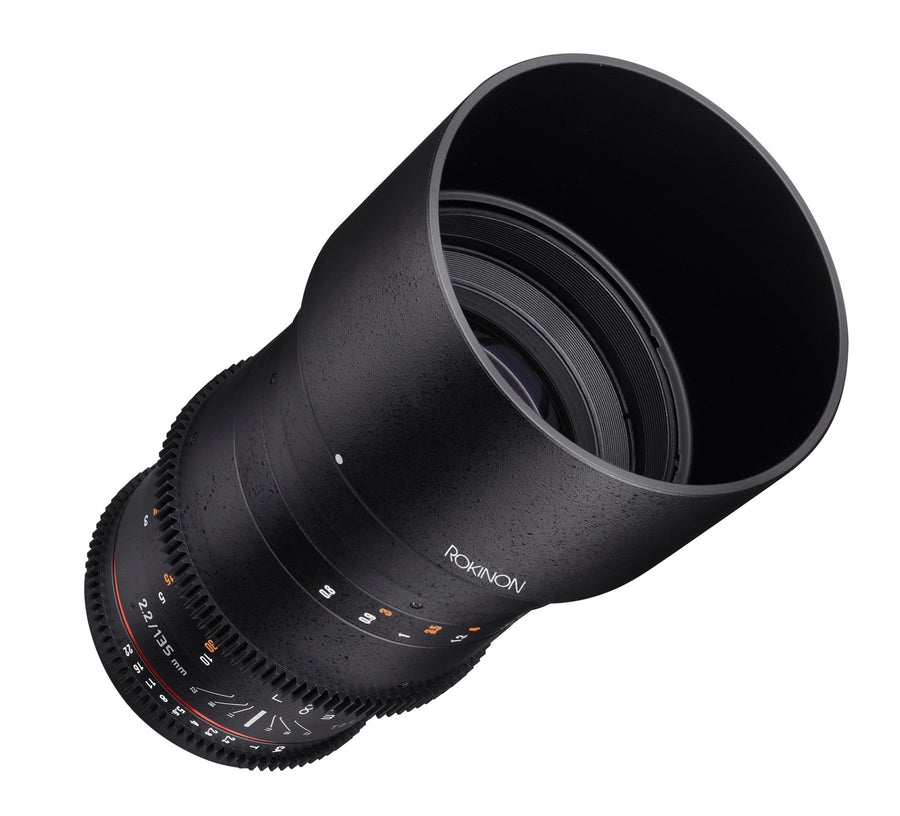

Utilizing a multi-layer coating process for consistent color rendition from lens to lens the Rokinon 135mm T2.2 VDSLR II Lens answers the challenge of assembling a set of lenses over time. Features industry standard geared focus and iris rings that share common position with other Rokinon VDSLR II lenses. To aid focus pullers who have to work both sides of the lens, the aperture and focus scales are marked on both sides of the lens.

This 135mm lens produces an 18.8° angle-of-view when used with a full-frame sensor camera. Hybrid aspherical lenses render sharply defined images with a minimum of distortion and chromatic aberrations, with a minimum focus distance of 2.6' from the lens. A removable lens hood provides flare protection when shooting without a matte box and the lens's threaded front accepts 77mm filter rings.

  • Ultra Multi Coated lenses minimize flare and ghosting, and the lenses are color matched to a standard eliminating the need to acquire an entire set of lenses at the same time.
  • Industry-standard gearing for focus and aperture rings. Each lens in the Rokinon VDSLR II series share common focus and iris gear ring positions, which speeds up lens changes as accessories such as follow focus units or iris motors don't have to be re-positioned.
  • "Declicked" aperture ring for smooth iris pulls.
  • A removable lens hood provides flare protection without a matte box.
  • The lens opens up to T2.2, providing the capability for low light shooting or creating extremely shallow depth of field.
Specifications 135mm T2.2 VDSLR ED UMC
Aperture Range T2.2 ~ T22
Optical
Construction
11 ELEMENTS IN 7 GROUPS
Minimum
Focusing Distance
0.8m (2.62ft)
Filter Size 77.0mm
Maximum Diameter 82.0mm
Mount Nikon F Canon EF Sony E Micro 4/3
Angle Of View Full Frame 18.8˚ 18.8˚ 18.8˚ -
ASP-C 12.4˚ 11.7˚ 12.4˚ -
FOUR-THIRDS
4/3”
- - - 9.5˚
Length (mm)
119.6mm 122.1mm 148.1mm 146.9mm
Weight (g) 820g 835g 845g 840g
Gear Module 0.8mm
A 7mm
B 4mm
C 43.8mm
D 8mm 10.5mm 36.5mm 35.3mm
Focus Ring Diameter 81.6mm
Aperture Ring Diameter 70.4mm 73.6mm

Model: DS135M-C

UPC: 0-84438-76426-0

Focal Length: 135mm

Maximum Aperture: T2.2

Coverage: Full Frame (FX)

Optical Construction: 11 Glass Elements In 7 Groups

Aperture Range: T2.2 to T22

Diaphragm Blades: 9

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 2.6ft (0.8m)

Filter Size: 77mm

Lens Hood: Removable

Maximum Diameter: 3.2” (82mm)

Weight: 29.45oz (835g)

Length: 4.80” (122.1mm)

Model: DS135M-N

UPC: 0-84438-76428-4

Focal Length: 135mm

Maximum Aperture: T2.2

Coverage: Full Frame (FX)

Optical Construction: 11 Glass Elements In 7 Groups

Aperture Range: T2.2 to T22

Diaphragm Blades: 9

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 2.6ft (0.8m)

Filter Size: 77mm

Lens Hood: Removable

Maximum Diameter: 3.2” (82mm)

Weight: 28.90oz (820g)

Length: 4.71” (119.6 mm)

Model: DS135M-NEX

UPC: 0-84438-76429-1

Focal Length: 135mm

Maximum Aperture: T2.2

Coverage: Full Frame (FX)

Optical Construction: 11 Glass Elements In 7 Groups

Aperture Range: T2.2 to T22

Diaphragm Blades: 9

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 2.6ft (0.8m)

Filter Size: 77mm

Lens Hood: Removable

Maximum Diameter: 3.2” (82mm)

Weight: 29.80oz (845g)

Length: 5.83” (148.1mm)

Model: DS135M-MFT

UPC: 0-84438-76427-7

Focal Length: 135mm

Maximum Aperture: T2.2

Coverage: Full Frame (FX)

Optical Construction: 11 Glass Elements In 7 Groups

Aperture Range: T2.2 to T22

Diaphragm Blades: 9

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 2.6ft (0.8m)

Filter Size: 77mm

Lens Hood: Removable

Maximum Diameter: 3.2” (82mm)

Weight: 29.60oz (840g)

Length: 5.78” (146.9mm)

Specifications

Specifications 135mm T2.2 VDSLR ED UMC
Aperture Range T2.2 ~ T22
Optical
Construction
11 ELEMENTS IN 7 GROUPS
Minimum
Focusing Distance
0.8m (2.62ft)
Filter Size 77.0mm
Maximum Diameter 82.0mm
Mount Nikon F Canon EF Sony E Micro 4/3
Angle Of View Full Frame 18.8˚ 18.8˚ 18.8˚ -
ASP-C 12.4˚ 11.7˚ 12.4˚ -
FOUR-THIRDS
4/3”
- - - 9.5˚
Length (mm)
119.6mm 122.1mm 148.1mm 146.9mm
Weight (g) 820g 835g 845g 840g
Gear Module 0.8mm
A 7mm
B 4mm
C 43.8mm
D 8mm 10.5mm 36.5mm 35.3mm
Focus Ring Diameter 81.6mm
Aperture Ring Diameter 70.4mm 73.6mm

Canon EF

Model: DS135M-C

UPC: 0-84438-76426-0

Focal Length: 135mm

Maximum Aperture: T2.2

Coverage: Full Frame (FX)

Optical Construction: 11 Glass Elements In 7 Groups

Aperture Range: T2.2 to T22

Diaphragm Blades: 9

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 2.6ft (0.8m)

Filter Size: 77mm

Lens Hood: Removable

Maximum Diameter: 3.2” (82mm)

Weight: 29.45oz (835g)

Length: 4.80” (122.1mm)

Nikon F

Model: DS135M-N

UPC: 0-84438-76428-4

Focal Length: 135mm

Maximum Aperture: T2.2

Coverage: Full Frame (FX)

Optical Construction: 11 Glass Elements In 7 Groups

Aperture Range: T2.2 to T22

Diaphragm Blades: 9

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 2.6ft (0.8m)

Filter Size: 77mm

Lens Hood: Removable

Maximum Diameter: 3.2” (82mm)

Weight: 28.90oz (820g)

Length: 4.71” (119.6 mm)

Sony E

Model: DS135M-NEX

UPC: 0-84438-76429-1

Focal Length: 135mm

Maximum Aperture: T2.2

Coverage: Full Frame (FX)

Optical Construction: 11 Glass Elements In 7 Groups

Aperture Range: T2.2 to T22

Diaphragm Blades: 9

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 2.6ft (0.8m)

Filter Size: 77mm

Lens Hood: Removable

Maximum Diameter: 3.2” (82mm)

Weight: 29.80oz (845g)

Length: 5.83” (148.1mm)

Micro 4/3

Model: DS135M-MFT

UPC: 0-84438-76427-7

Focal Length: 135mm

Maximum Aperture: T2.2

Coverage: Full Frame (FX)

Optical Construction: 11 Glass Elements In 7 Groups

Aperture Range: T2.2 to T22

Diaphragm Blades: 9

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 2.6ft (0.8m)

Filter Size: 77mm

Lens Hood: Removable

Maximum Diameter: 3.2” (82mm)

Weight: 29.60oz (840g)

Length: 5.78” (146.9mm)
