14mm F2.8 Full Frame Ultra Wide Angle
14mm F2.8 Full Frame Ultra Wide Angle
Canon AE with Chip
14mm F2.8 Full Frame Ultra Wide Angle
14mm F2.8 Full Frame Ultra Wide Angle
14mm F2.8 Full Frame Ultra Wide Angle
$329.00

14mm F2.8 Full Frame Ultra Wide Angle

+

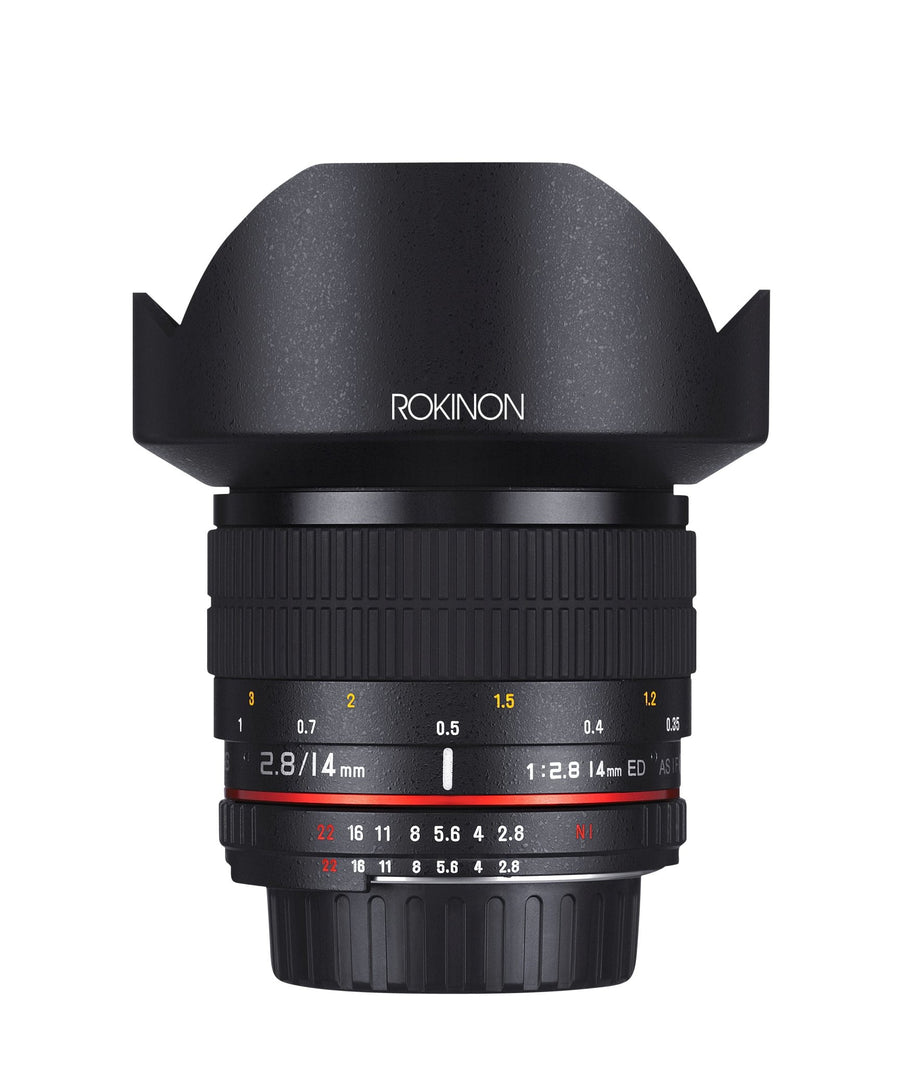

The Rokinon 14mm F2.8 ED AS IF UMC Lens gives you approximately a 115° view with dramatic results when used with a full frame digital camera or 35mm film camera. With hybrid aspherical lenses, you will produce sharply defined images with a minimum of distortion and chromatic aberrations. This manual focus 14mm lens focuses as close as 0.9' (28 cm) from the lens, and has a built-in petal-type lens hood. With some cameras, Shutter Lock must be disengaged on the camera's menu.

  • Ultra wide-angle 14mm lens with an approximately 90° angle of view using an APS-C camera, for dramatic effects
  • Lens is constructed with two ED lens elements, one hybrid aspherical lens element and one glass aspherical lens element, for outstanding, sharply defined images
  • Minimal distortion and chromatic aberrations
  • Super multi-layer coating to reduce flares and ghost images
  • Lens has a minimum focusing distance of 0.9' (28 cm) for enhanced close-up shots
  • Also conforms to APS-C (1:1.5x) size digital imaging format
  • Lens includes a built-in petal-type lens hood

User Manual Download

Specifications 14mm F2.8 ED AS IF UMC
Aperture Range F2.8 ~ 22
Optical
Construction
14 ELEMENTS IN 10 GROUPS (1 GLASS ASP & 1 HYBRID ASP)
Minimum
Focusing Distance
0.28m (0.9ft)
Filter Size -
Maximum Diameter Φ87mm
Mount Canon EF Nikon F Pentax K Fujifilm X Sony E Micro 4/3
Angle Of View Full Frame
115.7˚ 115.7˚ 115.7˚ - 115.7˚ -
ASP-C 89.9˚ 93.9˚ 93.9˚ 93.9˚ 93.9˚ -
FOUR-THIRDS
4/3”
- - - - - 76.2˚
Length (mm) 96.1mm 96.3mm 94.6mm 122.4mm 122.1mm 120.9mm
Weight (g) 550g 530g 530g 575g 570g 570g
Function A / S / M / P model (NIKON F)

Model: FE14M-C

UPC: 0-84438-15856-4

Focal Length: 14mm

Maximum Aperture: F2.8

Coverage: Full Frame (FX)

Optical Construction: 14 Glass Elements In 10 Groups

Aperture Range: F2.8 to F22

Diaphragm Blades: 6

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 11”(0.28m)

Filter Size: n/a

Lens Hood: Built-In Petal Shaped

Maximum Diameter: 3.4”(87mm)

Weight: 19.4oz (550g)

Length: 3.78” (96.1mm)

Model: FE14AF-N

UPC: 0-84438-15863-2

Focal Length: 14mm

Maximum Aperture: F2.8

Coverage: Full Frame (FX)

Optical Construction: 14 Glass Elements In 10 Groups

Aperture Range: F2.8 to F22

Diaphragm Blades: 6

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 11”(0.28m)

Filter Size: n/a

Lens Hood: Built-In Petal Shaped

Maximum Diameter: 3.4”(87mm)

Weight: 18.70oz (530g)

Length: 3.69” (93.6mm)

Model: FE14M-P

UPC: 0-84438-15858-8

Focal Length: 14mm

Maximum Aperture: F2.8

Coverage: Full Frame (FX)

Optical Construction: 14 Glass Elements In 10 Groups

Aperture Range: F2.8 to F22

Diaphragm Blades: 6

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 11”(0.28m)

Filter Size: n/a

Lens Hood: Built-In Petal Shaped

Maximum Diameter: 3.4”(87mm)

Weight: 18.70oz (530g)

Length: 3.72” (94.6mm)

Model: FE14M-FX

UPC: 0-84438-76181-8

Focal Length: 14mm

Maximum Aperture: F2.8

Coverage: Full Frame (FX)

Optical Construction: 14 Glass Elements In 10 Groups

Aperture Range: F2.8 to F22

Diaphragm Blades: 6

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 11”(0.28m)

Filter Size: n/a

Lens Hood: Built-In Petal Shaped

Maximum Diameter: 3.4”(87mm)

Weight: 20.28oz (575g)

Length: 4.82” (112.4mm)

Model: FE14M-E

UPC: 0-84438-76179-5

Focal Length: 14mm

Maximum Aperture: F2.8

Coverage: Full Frame (FX)

Optical Construction: 14 Glass Elements In 10 Groups

Aperture Range: F2.8 to F22

Diaphragm Blades: 6

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 11”(0.28m)

Filter Size: n/a

Lens Hood: Built-In Petal Shaped

Maximum Diameter: 3.4”(87mm)

Weight: 20.1oz (570g)

Length: 4.61” (122.1mm)

Model: FE14M-MFT

UPC: 0-84438-76180-1

Focal Length: 14mm

Maximum Aperture: F2.8

Coverage: Full Frame (FX)

Optical Construction: 14 Glass Elements In 10 Groups

Aperture Range: F2.8 to F22

Diaphragm Blades: 6

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 11”(0.28m)

Filter Size: n/a

Lens Hood: Built-In Petal Shaped

Maximum Diameter: 3.4”(87mm)

Weight: 20.1oz (570g)

Length: 4.76” (120.9mm)

Model: AE14M-C

UPC: 0-84438-76462-8

Focal Length: 14mm

Maximum Aperture: F2.8

Coverage: Full Frame (FX)

Optical Construction: 14 Glass Elements In 10 Groups

Aperture Range: F2.8 to F22

Diaphragm Blades: 6

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 11”(0.28m)

Filter Size: n/a

Lens Hood: Built-In Petal Shaped

Maximum Diameter: 3.4”(87mm)

Weight: 19.4oz (550g)

Length: 3.78" (96.1mm)

Specifications

Specifications 14mm F2.8 ED AS IF UMC
Aperture Range F2.8 ~ 22
Optical
Construction
14 ELEMENTS IN 10 GROUPS (1 GLASS ASP & 1 HYBRID ASP)
Minimum
Focusing Distance
0.28m (0.9ft)
Filter Size -
Maximum Diameter Φ87mm
Mount Canon EF Nikon F Pentax K Fujifilm X Sony E Micro 4/3
Angle Of View Full Frame
115.7˚ 115.7˚ 115.7˚ - 115.7˚ -
ASP-C 89.9˚ 93.9˚ 93.9˚ 93.9˚ 93.9˚ -
FOUR-THIRDS
4/3”
- - - - - 76.2˚
Length (mm) 96.1mm 96.3mm 94.6mm 122.4mm 122.1mm 120.9mm
Weight (g) 550g 530g 530g 575g 570g 570g
Function A / S / M / P model (NIKON F)

Canon EF

Model: FE14M-C

UPC: 0-84438-15856-4

Focal Length: 14mm

Maximum Aperture: F2.8

Coverage: Full Frame (FX)

Optical Construction: 14 Glass Elements In 10 Groups

Aperture Range: F2.8 to F22

Diaphragm Blades: 6

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 11”(0.28m)

Filter Size: n/a

Lens Hood: Built-In Petal Shaped

Maximum Diameter: 3.4”(87mm)

Weight: 19.4oz (550g)

Length: 3.78” (96.1mm)

Nikon F with AE

Model: FE14AF-N

UPC: 0-84438-15863-2

Focal Length: 14mm

Maximum Aperture: F2.8

Coverage: Full Frame (FX)

Optical Construction: 14 Glass Elements In 10 Groups

Aperture Range: F2.8 to F22

Diaphragm Blades: 6

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 11”(0.28m)

Filter Size: n/a

Lens Hood: Built-In Petal Shaped

Maximum Diameter: 3.4”(87mm)

Weight: 18.70oz (530g)

Length: 3.69” (93.6mm)

Pentax K

Model: FE14M-P

UPC: 0-84438-15858-8

Focal Length: 14mm

Maximum Aperture: F2.8

Coverage: Full Frame (FX)

Optical Construction: 14 Glass Elements In 10 Groups

Aperture Range: F2.8 to F22

Diaphragm Blades: 6

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 11”(0.28m)

Filter Size: n/a

Lens Hood: Built-In Petal Shaped

Maximum Diameter: 3.4”(87mm)

Weight: 18.70oz (530g)

Length: 3.72” (94.6mm)

Fuji X

Model: FE14M-FX

UPC: 0-84438-76181-8

Focal Length: 14mm

Maximum Aperture: F2.8

Coverage: Full Frame (FX)

Optical Construction: 14 Glass Elements In 10 Groups

Aperture Range: F2.8 to F22

Diaphragm Blades: 6

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 11”(0.28m)

Filter Size: n/a

Lens Hood: Built-In Petal Shaped

Maximum Diameter: 3.4”(87mm)

Weight: 20.28oz (575g)

Length: 4.82” (112.4mm)

Sony E

Model: FE14M-E

UPC: 0-84438-76179-5

Focal Length: 14mm

Maximum Aperture: F2.8

Coverage: Full Frame (FX)

Optical Construction: 14 Glass Elements In 10 Groups

Aperture Range: F2.8 to F22

Diaphragm Blades: 6

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 11”(0.28m)

Filter Size: n/a

Lens Hood: Built-In Petal Shaped

Maximum Diameter: 3.4”(87mm)

Weight: 20.1oz (570g)

Length: 4.61” (122.1mm)

Micro 4/3

Model: FE14M-MFT

UPC: 0-84438-76180-1

Focal Length: 14mm

Maximum Aperture: F2.8

Coverage: Full Frame (FX)

Optical Construction: 14 Glass Elements In 10 Groups

Aperture Range: F2.8 to F22

Diaphragm Blades: 6

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 11”(0.28m)

Filter Size: n/a

Lens Hood: Built-In Petal Shaped

Maximum Diameter: 3.4”(87mm)

Weight: 20.1oz (570g)

Length: 4.76” (120.9mm)

Canon EF with AE

Model: AE14M-C

UPC: 0-84438-76462-8

Focal Length: 14mm

Maximum Aperture: F2.8

Coverage: Full Frame (FX)

Optical Construction: 14 Glass Elements In 10 Groups

Aperture Range: F2.8 to F22

Diaphragm Blades: 6

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 11”(0.28m)

Filter Size: n/a

Lens Hood: Built-In Petal Shaped

Maximum Diameter: 3.4”(87mm)

Weight: 19.4oz (550g)

Length: 3.78" (96.1mm)
