$399.00

14mm T3.1 Full Frame Ultra Wide Angle Cine DS

+

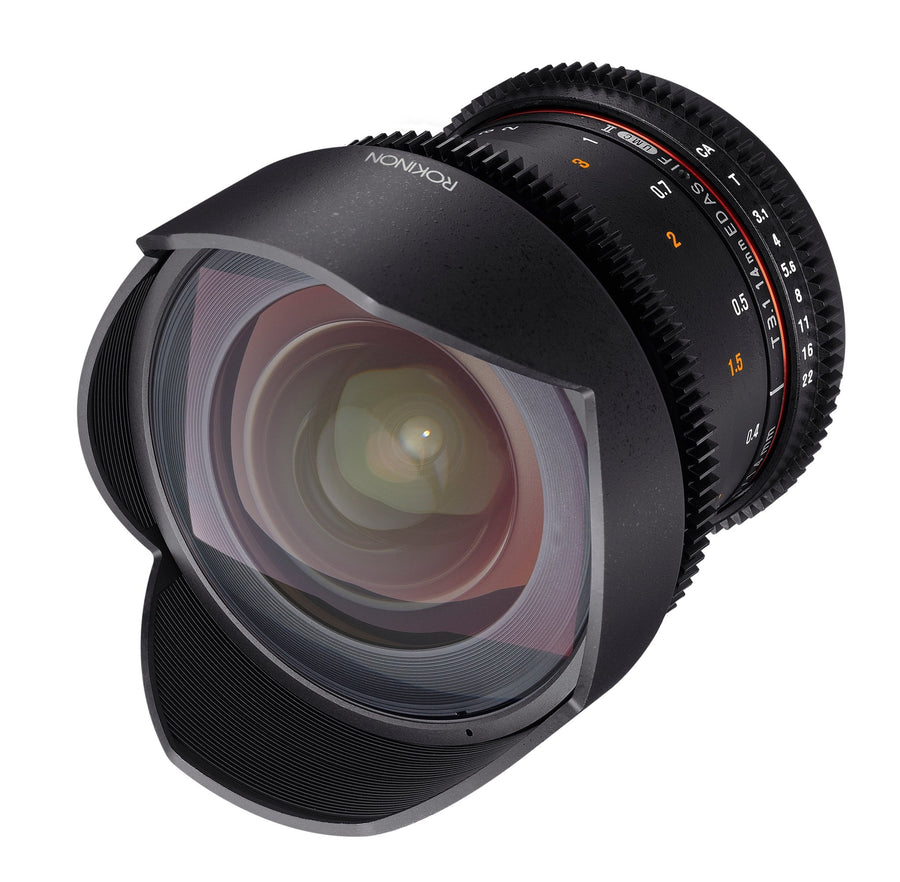

The Rokinon 14mm T3.1 VDSLR ED AS IF UMC II Lens was developed primarily for film and video applications. The cine version of Rokinon's 14mm lens features industry-standard gearing for the focus and aperture ring, and the aperture ring has been de-clicked for smooth iris pulls. The aperture and focus scales have also been relocated to the side of the lens, where it is easier for focus pullers to read them.

This lens is compatible with full-frame sensors and can also be used on APS-C-sized sensors, where the 35mm-equivalent focal length will be 22.4mm. The optical construction incorporates three high refractive index elements, two extra-low dispersion elements, one hybrid aspherical elements, and one aspherical element to reduce chromatic aberration and distortion to produce sharper imagery. Additionally, a UMC coating has been applied to lens elements to minimize lens flare and ghosting for more contrast-rich images.

  • Fast T3.1 maximum aperture benefits working in low-light conditions.
  • Three high refractive index elements, two extra-low dispersion elements, one hybrid aspherical element, and one aspherical element reduce chromatic aberrations in order to produce greater sharpness and clarity.
  • UMC coating improves light transmission and suppresses lens flare and ghosting for more contrast-rich, color-neutral images.
  • Geared aperture and focus rings are compatible with standard follow focuses for greater control over adjustment.
  • De-clicked aperture ring facilitates smooth, quiet exposure adjustments during recording.

User Manual Download

Specifications 14mm T3.1 VDSLR ED AS IF UMC II
Aperture range T3.1 ~ T22
Optical
Construction
14 ELEMENTS IN 10 GROUPS
(1 GLASS ASP & 1 HYBRID ASP)
Minimum
focusing distance
0.28m (0.92ft)
Filter size -
Front diameter 87.0mm
Mount Nikon F Canon EF Sony E Micro 4/3
Angle of view Full Frame
115.7˚ 115.7˚ 115.7˚ -
ASP-C 93.9˚ 89.9˚ 93.9˚ -
FOUR-THIRDS
4/3”
- - - 76.2˚
Length (mm)
93.6mm 96.1mm 122.1mm 120.9mm
Weight (g) 605g 620g 640g 650g
Gear Module 0.8mm
A 7mm
B 4mm
C 36.2mm
D 8mm 10.5mm 36.5mm 35.3m
Focus Ring Diameter 73.6mm
Aperture Ring Diameter 70.4mm 73.6mm

Model: DS14M-C

UPC: 0-84438-76076-7

Focal Length: 14mm

Maximum Aperture: T3.1

Coverage: Full Frame (FX)

Optical Construction: 14 Glass Elements In 10 Groups

Aperture Range: T3.1 to T22

Diaphragm Blades: 6

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 11” (0.28m)

Filter Size: n/a

Lens Hood: Built-in Petal Shaped

Maximum Diameter: 3.4”(87mm)

Weight: 21.9oz (620g)

Length: 3.78” (96.1mm)

Model: DS14M-N

UPC: 0-84438-76318-8

Focal Length: 14mm

Maximum Aperture: T3.1

Coverage: Full Frame (FX)

Optical Construction: 14 Glass Elements In 10 Groups

Aperture Range: T3.1 to T22

Diaphragm Blades: 6

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 11” (0.28m)

Filter Size: n/a

Lens Hood: Built-in Petal Shaped

Maximum Diameter: 3.4”(87mm)

Weight: 21.3oz (605g)

Length: 3.69” (93.6mm)

Model: DS14M-NEX

UPC: 0-84438-76087-3

Focal Length: 14mm

Maximum Aperture: T3.1

Coverage: Full Frame (FX)

Optical Construction: 14 Glass Elements In 10 Groups

Aperture Range: T3.1 to T22

Diaphragm Blades: 6

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 11” (0.28m)

Filter Size: n/a

Lens Hood: Built-in Petal Shaped

Maximum Diameter: 3.4”(87mm)

Weight: 22.6oz (640g)

Length: 4.81” (122.1mm)

Model: DS14M-MFT

UPC: 0-84438-76321-8

Focal Length: 14mm

Maximum Aperture: T3.1

Coverage: Full Frame (FX)

Optical Construction: 14 Glass Elements In 10 Groups

Aperture Range: T3.1 to T22

Diaphragm Blades: 6

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 11” (0.28m)

Filter Size: n/a

Lens Hood: Built-in Petal Shaped

Maximum Diameter: 3.4”(87mm)

Weight: 22.9oz (650g)

Length: 4.76” (120.9mm)

Specifications

Specifications 14mm T3.1 VDSLR ED AS IF UMC II
Aperture range T3.1 ~ T22
Optical
Construction
14 ELEMENTS IN 10 GROUPS
(1 GLASS ASP & 1 HYBRID ASP)
Minimum
focusing distance
0.28m (0.92ft)
Filter size -
Front diameter 87.0mm
Mount Nikon F Canon EF Sony E Micro 4/3
Angle of view Full Frame
115.7˚ 115.7˚ 115.7˚ -
ASP-C 93.9˚ 89.9˚ 93.9˚ -
FOUR-THIRDS
4/3”
- - - 76.2˚
Length (mm)
93.6mm 96.1mm 122.1mm 120.9mm
Weight (g) 605g 620g 640g 650g
Gear Module 0.8mm
A 7mm
B 4mm
C 36.2mm
D 8mm 10.5mm 36.5mm 35.3m
Focus Ring Diameter 73.6mm
Aperture Ring Diameter 70.4mm 73.6mm

Canon EF

Model: DS14M-C

UPC: 0-84438-76076-7

Focal Length: 14mm

Maximum Aperture: T3.1

Coverage: Full Frame (FX)

Optical Construction: 14 Glass Elements In 10 Groups

Aperture Range: T3.1 to T22

Diaphragm Blades: 6

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 11” (0.28m)

Filter Size: n/a

Lens Hood: Built-in Petal Shaped

Maximum Diameter: 3.4”(87mm)

Weight: 21.9oz (620g)

Length: 3.78” (96.1mm)

Nikon F

Model: DS14M-N

UPC: 0-84438-76318-8

Focal Length: 14mm

Maximum Aperture: T3.1

Coverage: Full Frame (FX)

Optical Construction: 14 Glass Elements In 10 Groups

Aperture Range: T3.1 to T22

Diaphragm Blades: 6

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 11” (0.28m)

Filter Size: n/a

Lens Hood: Built-in Petal Shaped

Maximum Diameter: 3.4”(87mm)

Weight: 21.3oz (605g)

Length: 3.69” (93.6mm)

Sony E

Model: DS14M-NEX

UPC: 0-84438-76087-3

Focal Length: 14mm

Maximum Aperture: T3.1

Coverage: Full Frame (FX)

Optical Construction: 14 Glass Elements In 10 Groups

Aperture Range: T3.1 to T22

Diaphragm Blades: 6

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 11” (0.28m)

Filter Size: n/a

Lens Hood: Built-in Petal Shaped

Maximum Diameter: 3.4”(87mm)

Weight: 22.6oz (640g)

Length: 4.81” (122.1mm)

Micro 4/3

Model: DS14M-MFT

UPC: 0-84438-76321-8

Focal Length: 14mm

Maximum Aperture: T3.1

Coverage: Full Frame (FX)

Optical Construction: 14 Glass Elements In 10 Groups

Aperture Range: T3.1 to T22

Diaphragm Blades: 6

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 11” (0.28m)

Filter Size: n/a

Lens Hood: Built-in Petal Shaped

Maximum Diameter: 3.4”(87mm)

Weight: 22.9oz (650g)

Length: 4.76” (120.9mm)
