$8,995.00

$12,475.00

16, 24, 35, 50, 85mm XEEN CF Pro Cinema Lens Bundle

+

This ROKINON XEEN CF Lens Bundle includes the 16mm T2.6 Ultra Wide Angle, 24mm T1.5 Wide Angle, 35mm T1.5 Wide Angle, 50mm T1.5 and 85mm T1.5 Telephoto.

ROKINON XEEN CF lenses reflect the trend towards more compact, lightweight, and high definition cameras. They are the first full frame cine lenses to utilize carbon fiber for a sturdier, lighter, durable and more future oriented design and appearance.

Carbon fiber is rarely used for precision machinery due its difficulty in molding. Credit must be given to the R&D designers who developed a technique for molding the material into the shape and size suitable for use in precise lens construction. The cost premium of carbon fiber was another challenge that was overcome to allow the CF cine lenses to remain within the reach of both renowned and aspiring cinematographers.

With an average weight of only 2.12lb/0.96kg and length of 3.7”/93.5mm in PL mount for all five focal lengths, they offer exceptional compatibility and flexible operation with equipment such as drones and gimbals.

ROKINON XEEN CF lenses support large image sensors and 8K capability of the latest cinema cameras. The unique X-coating technology, optical design, bright T1.5 aperture (T2.6 for the 16mm), and 11 blade diaphragm can be effectively controlled to create distinctive looks, produce excellent low light performance and beautiful bokeh.

Additional features are changeable mounts, a common front diameter of 95mm for easy use with matte boxes, and luminous glow-in-the-dark markings for easy operation in low-light conditions.

True cine lens features include unified focus and aperture gear positions for easier follow focus use, tight color matching, dual calibrated right and left side distance and T-stop scales and incredibly smooth movement of the geared focusing and aperture controls.

The ROKINON XEEN CF 16mm T2.6 augments the 24mm T1.5, 35mm T1.5, 50mm T1.5, and 85mm T1.5 CF models to form a core set of five highly versatile and capable cine primes.

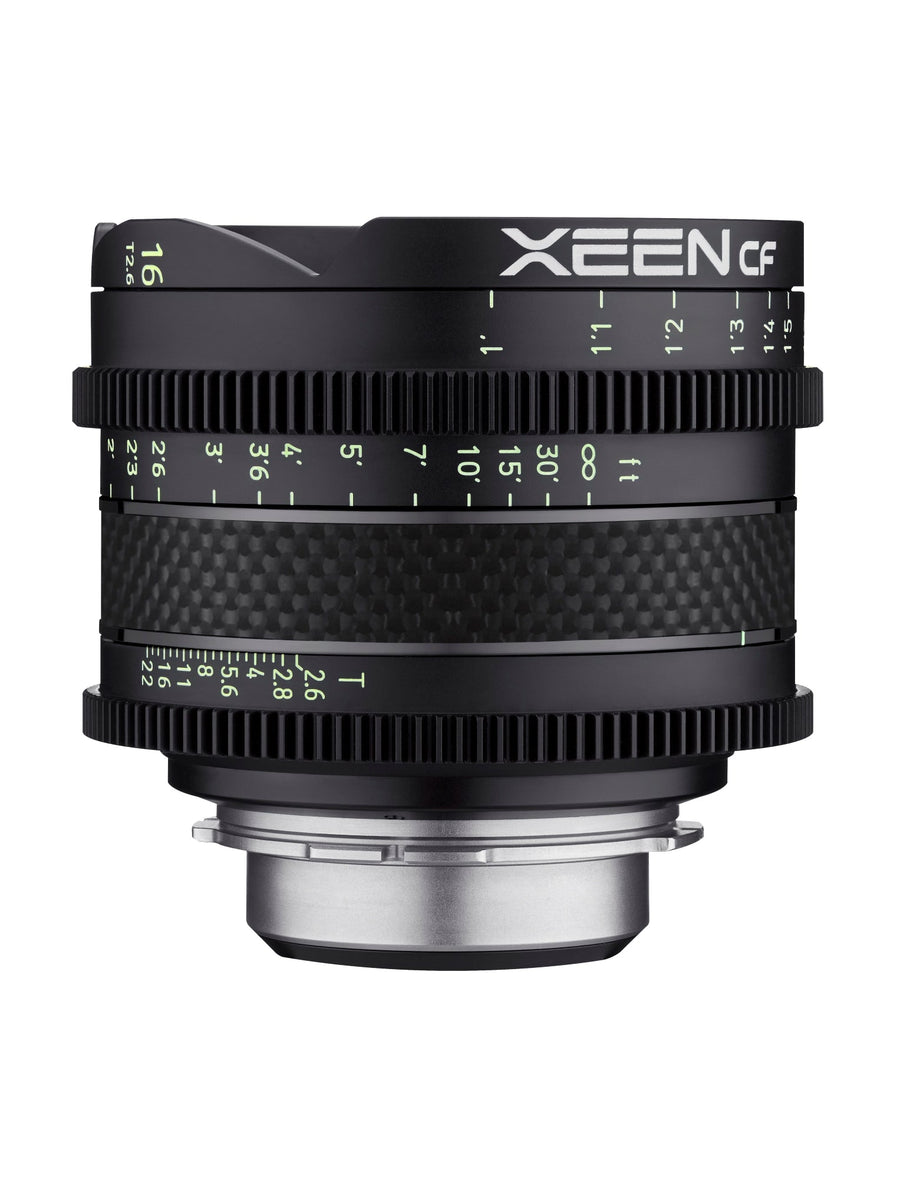

Focal length 16mm
Maximum T-stop T2.6
Aperture Range T2.6 to T22
Max Diameter
100mm
Image Circle 43.3mm
Angle of view Full Frame(1:1x) 107.0˚
Super 35 87.4˚
Focusing range ∞ to 0.30 m
Front size Φ95mm
Filter Size Sized for a Matte Box + 95mm adapter ring
Number of blades 11
Focus Gear MOD/Pitch 0.8 / 32
Minimum Focusing Distance 0.3m (12")
Size PL Φ95mm x 82.3mm
Canon EF Φ95mm x 90.3mm
Sony E Φ95mm x 116.3mm
Angle Focus angle 200°
Iris angle 32.5°
Weight
(without Lens cap)
PL 0.9kg (2.0lbs)
Canon EF 0.9kg (2.0lbs)
Sony E 1.0kg (2.2lbs)
Focal length 24mm
Maximum T-stop T1.5
Aperture Range T1.5 to T22
Max Diameter
100mm
Image Circle 43.3mm
Angle of view Full Frame(1:1x) 84.1˚
Super 35 61.2˚
Focusing range ∞ to 0.25 m
Front size Φ95mm
Filter Size Sized for a Matte Box + 95mm adapter ring
Number of blades 11
Focus Gear MOD/Pitch 0.8 / 32
Minimum Focusing Distance 0.25m (10")
Size PL Φ95mm x 90.5mm
Canon EF Φ95mm x 98.5mm
Sony E Φ95mm x 124.5mm
Angle Focus angle 200°
Iris angle 40°
Weight
(without Lens cap)
PL 0.9kg (2.0lbs)
Canon EF 0.9kg (2.0lbs)
Sony E 1.0kg (2.2lbs)
Focal length 35mm
Maximum T-stop T1.5
Aperture Range T1.5 to T22
Max Diameter
100mm
Image Circle 43.3mm
Angle of view Full Frame(1:1x) 63.1˚
Super 35 46.9˚
Focusing range ∞ to 0.33 m
Front size Φ95mm
Filter Size Sized for a Matte Box + 95mm adapter ring
Number of blades 11
Focus Gear MOD/Pitch 0.8 / 32
Minimum Focusing Distance 0.33m (13")
Size PL Φ95mm x 113.7mm
Canon EF Φ95mm x 121.7mm
Sony E Φ95mm x 147.7mm
Angle Focus angle 200°
Iris angle 40°
Weight
(without Lens cap)
PL 1.1kg (2.4lbs)
Canon EF 1.1kg (2.4lbs)
Sony E 1.2kg (2.6lbs)
Focal length 50mm
Maximum T-stop T1.5
Aperture Range T1.5 to T22
Max Diameter
100mm
Image Circle 43.3mm
Angle of view Full Frame(1:1x) 46.2˚
Super 35 31.2˚
Focusing range ∞ to 0.45 m
Front size Φ95mm
Filter Size Sized for a Matte Box + 95mm adapter ring
Number of blades 11
Focus Gear MOD/Pitch 0.8 / 32
Minimum Focusing Distance 0.45m (18")
Size PL Φ95mm x 90.5mm
Canon EF Φ95mm x 98.5mm
Sony E Φ95mm x 124.5mm
Angle Focus angle 200°
Iris angle 40°
Weight
(without Lens cap)
PL 0.9kg (2.0lbs)
Canon EF 0.9kg (2.0lbs)
Sony E 1.0kg (2.2lbs)

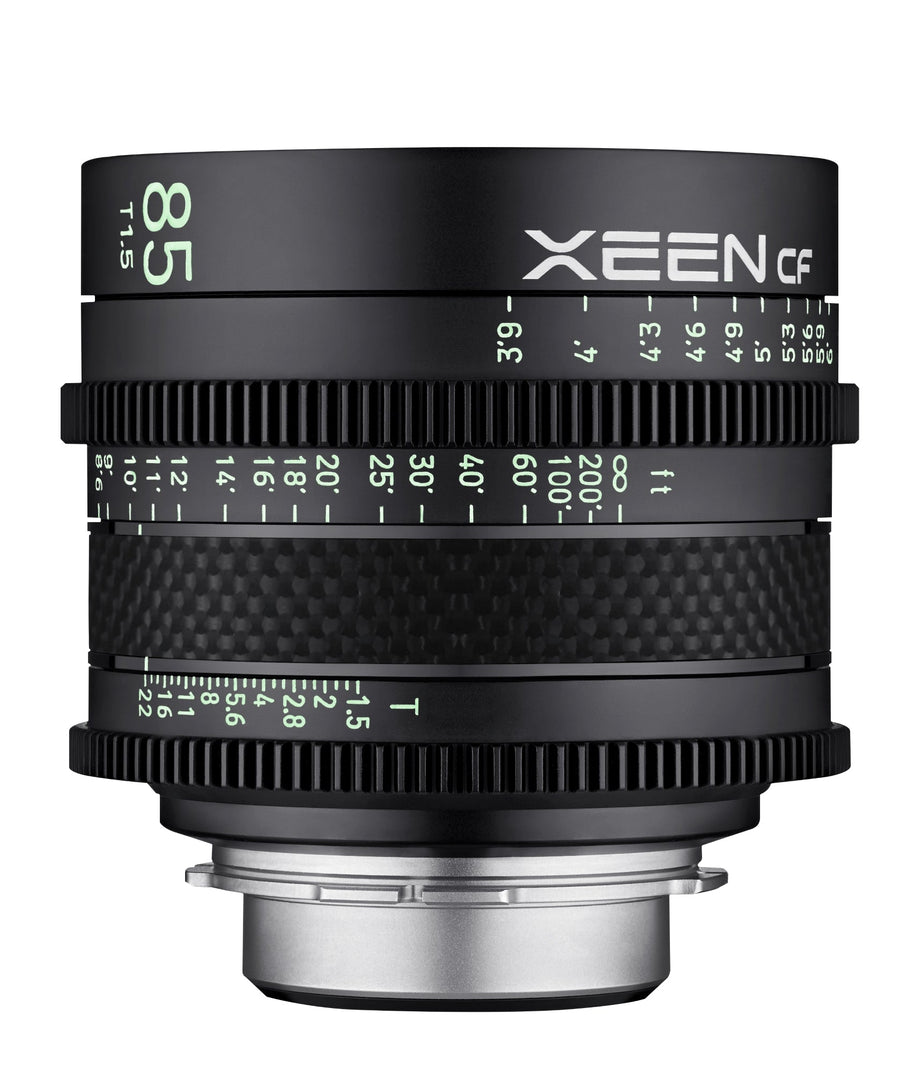

Focal length 85mm
Maximum T-stop T1.5
Aperture Range T1.5 to T22
Max Diameter
100mm
Image Circle 43.3mm
Angle of view Full Frame(1:1x) 28.4˚
Super 35 19.0˚
Focusing range ∞ to 1.12m
Front size Φ95mm
Filter Size Sized for a Matte Box + 95mm adapter ring
Number of blades 11
Focus Gear MOD/Pitch 0.8 / 32
Minimum Focusing Distance 1.12m (3.75ft)
Size PL Φ95mm x 90.5mm
Canon EF Φ95mm x 98.5mm
Sony E Φ95mm x 124.5mm
Angle Focus angle 200°
Iris angle 40°
Weight
(without Lens cap)
PL 1.0kg (2.2lbs)
Canon EF 1.0kg (2.2lbs)
Sony E 1.1kg (2.4lbs)

16mm T2.6 Ultra Wide Angle

Focal length 16mm
Maximum T-stop T2.6
Aperture Range T2.6 to T22
Max Diameter
100mm
Image Circle 43.3mm
Angle of view Full Frame(1:1x) 107.0˚
Super 35 87.4˚
Focusing range ∞ to 0.30 m
Front size Φ95mm
Filter Size Sized for a Matte Box + 95mm adapter ring
Number of blades 11
Focus Gear MOD/Pitch 0.8 / 32
Minimum Focusing Distance 0.3m (12")
Size PL Φ95mm x 82.3mm
Canon EF Φ95mm x 90.3mm
Sony E Φ95mm x 116.3mm
Angle Focus angle 200°
Iris angle 32.5°
Weight
(without Lens cap)
PL 0.9kg (2.0lbs)
Canon EF 0.9kg (2.0lbs)
Sony E 1.0kg (2.2lbs)

24mm T1.5 Wide Angle

Focal length 24mm
Maximum T-stop T1.5
Aperture Range T1.5 to T22
Max Diameter
100mm
Image Circle 43.3mm
Angle of view Full Frame(1:1x) 84.1˚
Super 35 61.2˚
Focusing range ∞ to 0.25 m
Front size Φ95mm
Filter Size Sized for a Matte Box + 95mm adapter ring
Number of blades 11
Focus Gear MOD/Pitch 0.8 / 32
Minimum Focusing Distance 0.25m (10")
Size PL Φ95mm x 90.5mm
Canon EF Φ95mm x 98.5mm
Sony E Φ95mm x 124.5mm
Angle Focus angle 200°
Iris angle 40°
Weight
(without Lens cap)
PL 0.9kg (2.0lbs)
Canon EF 0.9kg (2.0lbs)
Sony E 1.0kg (2.2lbs)


35mm T1.5 Wide Angle

Focal length 35mm
Maximum T-stop T1.5
Aperture Range T1.5 to T22
Max Diameter
100mm
Image Circle 43.3mm
Angle of view Full Frame(1:1x) 63.1˚
Super 35 46.9˚
Focusing range ∞ to 0.33 m
Front size Φ95mm
Filter Size Sized for a Matte Box + 95mm adapter ring
Number of blades 11
Focus Gear MOD/Pitch 0.8 / 32
Minimum Focusing Distance 0.33m (13")
Size PL Φ95mm x 113.7mm
Canon EF Φ95mm x 121.7mm
Sony E Φ95mm x 147.7mm
Angle Focus angle 200°
Iris angle 40°
Weight
(without Lens cap)
PL 1.1kg (2.4lbs)
Canon EF 1.1kg (2.4lbs)
Sony E 1.2kg (2.6lbs)


50mm T1.5

Focal length 50mm
Maximum T-stop T1.5
Aperture Range T1.5 to T22
Max Diameter
100mm
Image Circle 43.3mm
Angle of view Full Frame(1:1x) 46.2˚
Super 35 31.2˚
Focusing range ∞ to 0.45 m
Front size Φ95mm
Filter Size Sized for a Matte Box + 95mm adapter ring
Number of blades 11
Focus Gear MOD/Pitch 0.8 / 32
Minimum Focusing Distance 0.45m (18")
Size PL Φ95mm x 90.5mm
Canon EF Φ95mm x 98.5mm
Sony E Φ95mm x 124.5mm
Angle Focus angle 200°
Iris angle 40°
Weight
(without Lens cap)
PL 0.9kg (2.0lbs)
Canon EF 0.9kg (2.0lbs)
Sony E 1.0kg (2.2lbs)


85mm T1.5 Telephoto

Focal length 85mm
Maximum T-stop T1.5
Aperture Range T1.5 to T22
Max Diameter
100mm
Image Circle 43.3mm
Angle of view Full Frame(1:1x) 28.4˚
Super 35 19.0˚
Focusing range ∞ to 1.12m
Front size Φ95mm
Filter Size Sized for a Matte Box + 95mm adapter ring
Number of blades 11
Focus Gear MOD/Pitch 0.8 / 32
Minimum Focusing Distance 1.12m (3.75ft)
Size PL Φ95mm x 90.5mm
Canon EF Φ95mm x 98.5mm
Sony E Φ95mm x 124.5mm
Angle Focus angle 200°
Iris angle 40°
Weight
(without Lens cap)
PL 1.0kg (2.2lbs)
Canon EF 1.0kg (2.2lbs)
Sony E 1.1kg (2.4lbs)
