16mm T2.6 Full Frame Super Wide Angle Cine DS

FFDS16M-C

Regular price$437.94
/
Shipping calculated at checkout.
Mount

Model: FFDS16M-C

UPC: 0-84438-76561-8

Focal Length: 16mm

Maximum Aperture: T2.6

Coverage: Full Frame (FX)

Optical Construction: 14 Glass Elements in 11 Group

Aperture Range: T2.6 - T22

Diaphragm Blades: 9

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 11.8" (0.3m)

Filter Size: N/A

Lens Hood: Built-In Petal Shape

Maximum Diameter: 3.21" (81.6mm)

Weight: 18.7oz (530g)

Length: 3.78" (96.1mm)

Model: FFDS16M-MFT

UPC: 0-84438-76562-5

Focal Length: 16mm

Maximum Aperture: T2.6

Coverage: Full Frame (FX)

Optical Construction: 14 Glass Elements in 11 Group

Aperture Range: T2.6 - T22

Diaphragm Blades: 9

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 11.8" (0.3m)

Filter Size: N/A

Lens Hood: Built-In Petal Shape

Maximum Diameter: 3.21" (81.6mm)

Weight: 18.9oz (535g)

Length: 4.76" (120.9mm)

Model: FFDS16M-N

UPC: 0-84438-76563-2

Focal Length: 16mm

Maximum Aperture: T2.6

Coverage: Full Frame (FX)

Optical Construction: 14 Glass Elements in 11 Group

Aperture Range: T2.6 - T22

Diaphragm Blades: 9

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 11.8" (0.3m)

Filter Size: N/A

Lens Hood: Built-In Petal Shape

Maximum Diameter: 3.21" (81.6mm)

Weight: 18.2oz (515g)

Length: 3.69" (93.6mm)

Model: FFDS16M-NEX

UPC: 0-84438-76564-9

Focal Length: 16mm

Maximum Aperture: T2.6

Coverage: Full Frame (FX)

Optical Construction: 14 Glass Elements in 11 Group

Aperture Range: T2.6 - T22

Diaphragm Blades: 9

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 11.8" (0.3m)

Filter Size: N/A

Lens Hood: Built-In Petal Shape

Maximum Diameter: 3.21" (81.6mm)

Weight: 19.1oz (540g)

Length: 4.81" (122.1mm)

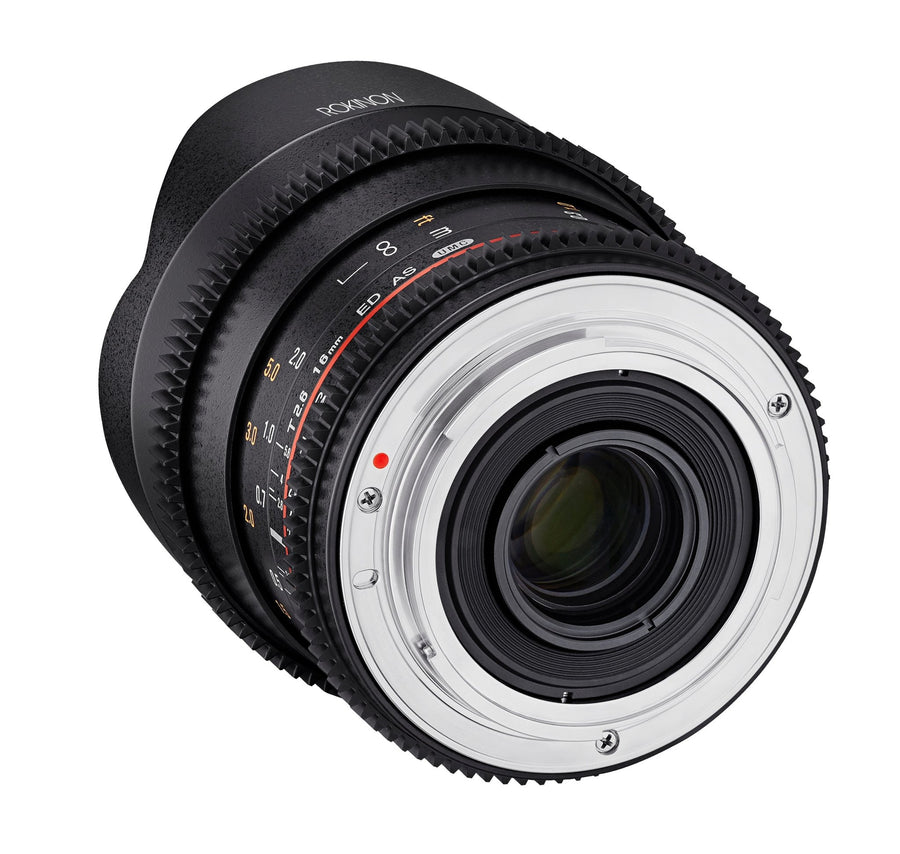

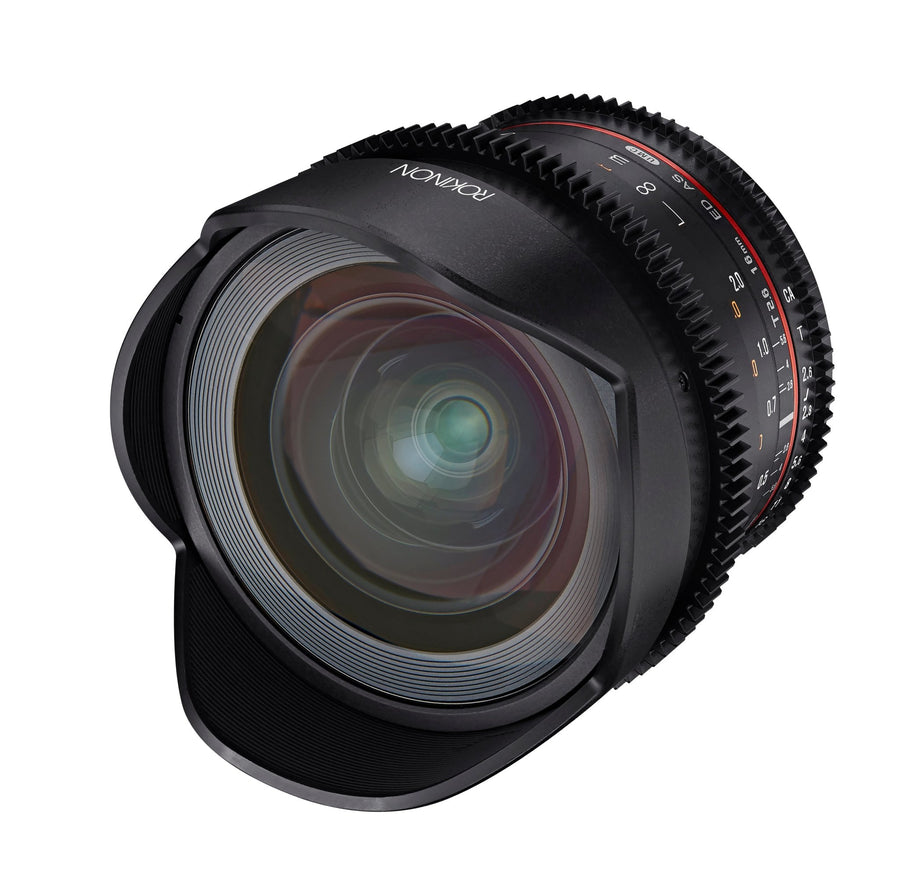

※ This product image is a Canon EF mount lens. Size and design may vary depending on the mount of a lens

Designed to overcome the challenges in assembling a set of lenses over time, the Rokinon 16mm T2.6 Full-Frame Cine DS Lens for Canon EF Mount features a multilayer coating process for consistently-rendered color from lens to lens. The industry standard geared focus and iris rings share a common position with other Cine DS lenses, eliminating the time it would take to reposition a matte box, follow focus, or other accessory when switching lenses. When used with a full-frame sensor camera, this 16mm lens produces a 106.9°, super-wide angle of view.

The Cine DS primes' hybrid aspherical elements render sharply-defined images with a minimum of distortion and chromatic aberrations, and the minimum focus distance is 11.8" from the lens. For ease of use when working with an assistant, the Cine DS primes feature focus and T-stop scales on both sides of the lens barrel. An integrated petal-type lens hood reduces flare without the use of a matte box.

User Manual Download

Specifications

Specifications16mm T2.6 ED AS UMC
Aperture RangeT2.6 ~ 22
Optical Construction14 Elements in 11 Groups
Minimum Focusing Distance0.3m (0.98ft)
Filter Size-
Maximum Diameter81.65mm
MountNikon FCanon EFSony EMFT
Angle of View35mm106.91˚106.91˚106.91˚-
APS-C82.02˚79.85˚82.02˚-
Four-Thirds (4/3”)---66.86˚
Length (mm)93.6mm96.1mm122.1mm120.9mm
Weight (g)515g530g540g535g
GearModule0.8mm
A7mm
B4mm
C43.8mm
D8mm10.5mm36.5mm35.3mm
Focus Ring Diameter81.6mm
Aperture Ring Diameter70.4mm73.6mm

MTF Chart

Optical Construction

De-clicked aperture and calibrated in T-stops

Apertures are de-clicked for precise, smooth and silent operation. Calibrated in T-stops to provide accurate and consistent exposure.

Industry-standard gearing for focus and aperture rings

Each lens in the Rokinon DS series shares common focus and iris gear ring positions, which speeds up lens changes as accessories such as follow focus units or iris motors don't have to be re-positioned.

Dual sided lens markings

To aid focus pullers who have to work both sides of the lens, the aperture and focus scales are marked on both sides of the lens.
