20, 35, 50, 85mm Cine DS Lens Bundle
20, 35, 50, 85mm Cine DS Lens Bundle - Rokinon
20, 35, 50, 85mm Cine DS Lens Bundle
20mm T1.9
20mm T1.9
35mm T1.5
20, 35, 50, 85mm Cine DS Lens Bundle - Rokinon
35mm T1.5
50mm T1.5
50mm T1.5
50mm T1.5
85mm T1.5
85mm T1.5
85mm T1.5

20, 35, 50, 85mm Cine DS Lens Bundle

DS20M-C + DS35M-C + DS50M-C + DS85M-C

Regular price Sale price$1,891.00
/
Shipping calculated at checkout.
Monut

Utilizing a multi-layer coating process for consistent color rendition from lens to lens the Rokinon 20mm T1.9 Cine DS Lens answers the challenge of assembling a set of lenses over time. This features industry standard geared focus and iris rings that share common position with other Rokinon Cine DS lenses. To aid focus pullers who have to work both sides of the lens, the aperture and focus scales are marked on both sides of the lens.

This 20mm lens produces 94.8° angle of view when used with full-frame cameras. Hybrid aspherical lenses render sharply defined images with a minimum of distortion and chromatic aberrations, with a minimum focus distance of just under 8" from the lens. A removable petal shaped lens hood provides flare protection when shooting without a matte box, the lenses threaded front accepts a 77mm filter ring.

  • 20mm lens with a 94.8° angle of view when used with full-frame cameras.
  • Ultra Multi Coated lenses minimize flare and ghosting, and the lenses are color matched to a standard eliminating the need to acquire an entire set of lenses at the same time.
  • Industry-standard gearing for focus and aperture rings. Each lens in the Rokinon DS series share common focus and iris gear ring positions, which speeds up lens changes as accessories such as follow focus units or iris motors don't have to be re-positioned.
  • Clickless aperture ring for smooth iris pulls.
  • A minimum focusing distance of 7.8" allows you to get up close to your subject.
  • A removable petal-type lens hood provides flare protection without a matte box.

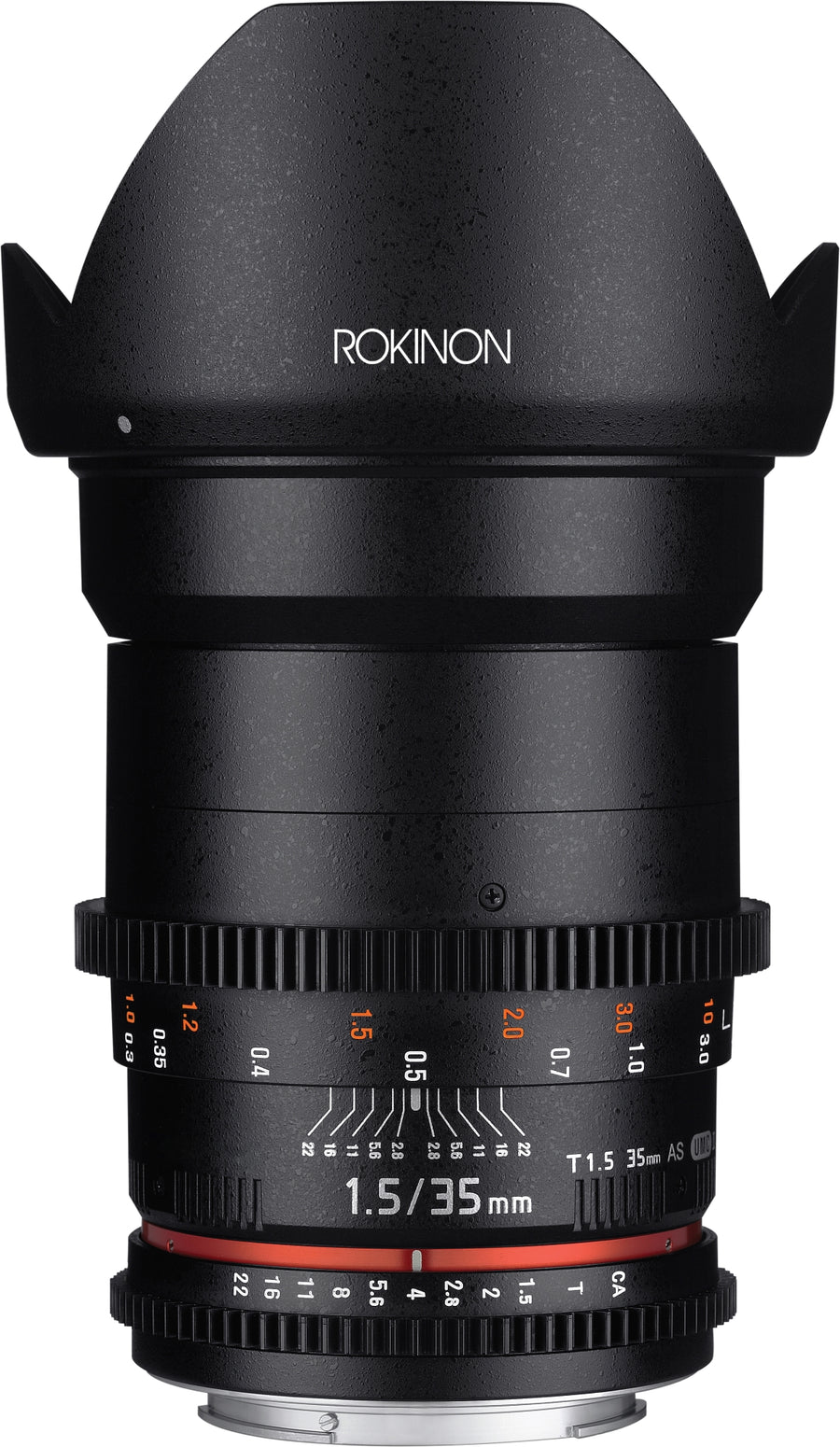

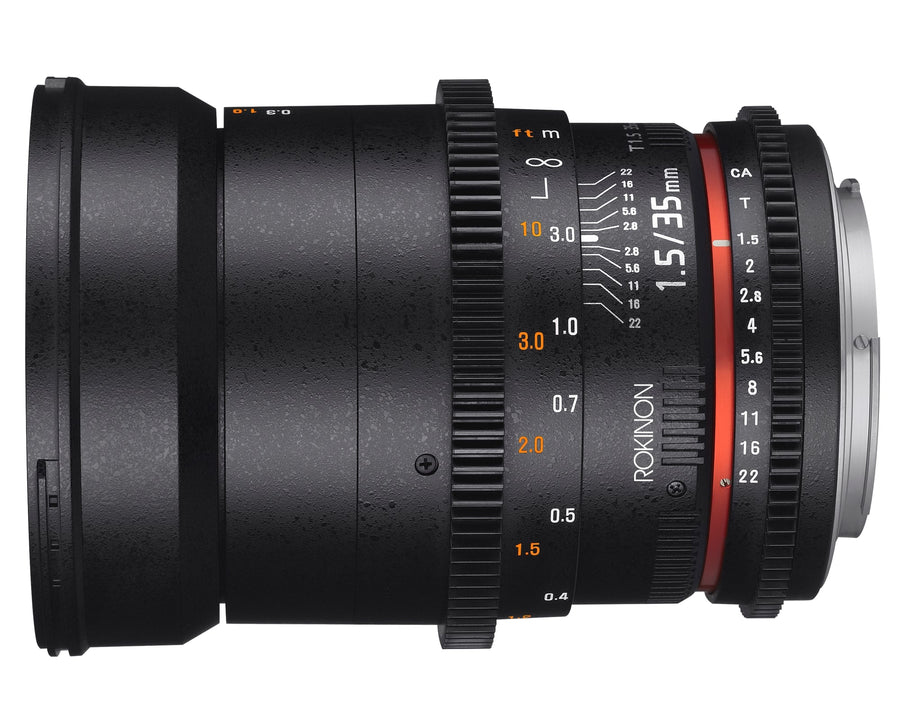

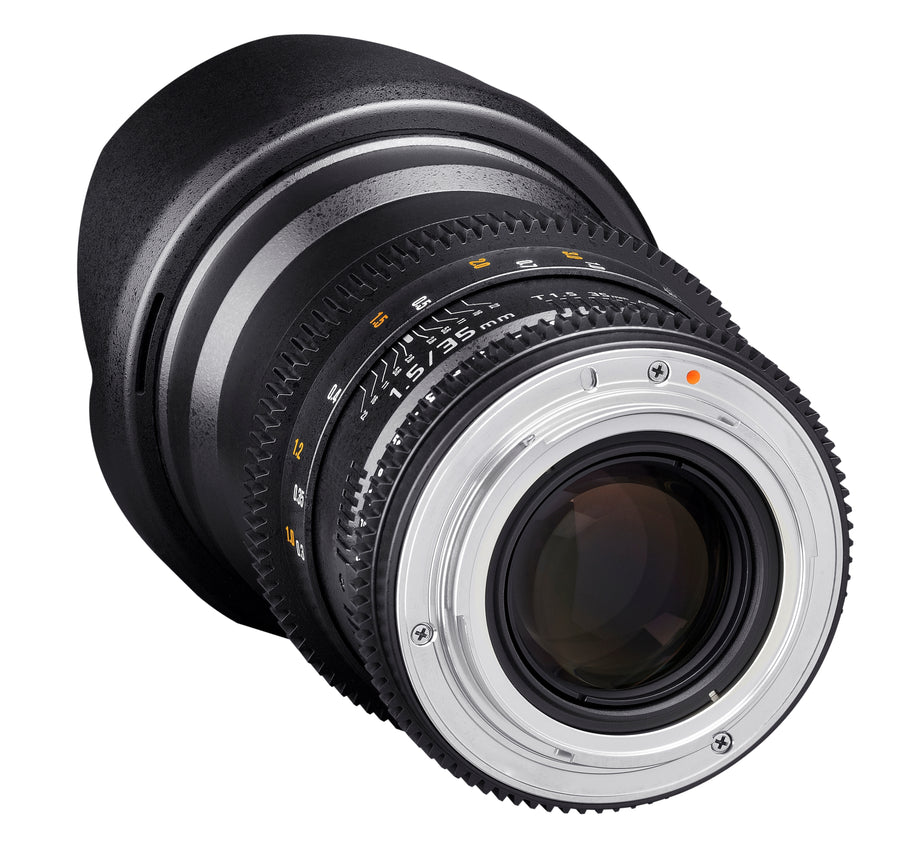

The Rokinon 35mm T1.5 VDSLR AS UMC II Lens was developed primarily for film and video applications. The cine version of Rokinon's 35mm lens features industry-standard gearing for the focus and aperture ring, and the aperture ring has been de-clicked for smooth iris pulls. The aperture and focus scales have also been relocated to the side of the lens, where it is easier for focus pullers to read them.

This lens is compatible with full-frame sensors and can also be used on APS-C-sized sensors, where the 35mm-equivalent focal length will be 56mm. The optical construction incorporates two high refractive index elements and one aspherical element to reduce chromatic aberrations and distortion to produce sharper imagery. Additionally, a UMC coating has been applied to lens elements to minimize lens flare and ghosting for more contrast-rich images.

  • Wide-angle prime lens is well-suited to use in a broad variety of shooting situations.
  • Fast T1.5 maximum aperture benefits working in low-light conditions and provides greater control over focus placement for shallow depth of field applications.
  • Two high refractive index elements and one aspherical element reduce chromatic aberrations in order to produce greater sharpness and clarity.
  • UMC coating improves light transmission and suppresses lens flare and ghosting for more contrast-rich, color-neutral images.
  • Geared aperture and focus rings are compatible with standard follow focuses for greater control over adjustment.
  • De-clicked aperture ring facilitates smooth, quiet exposure adjustments during recording.

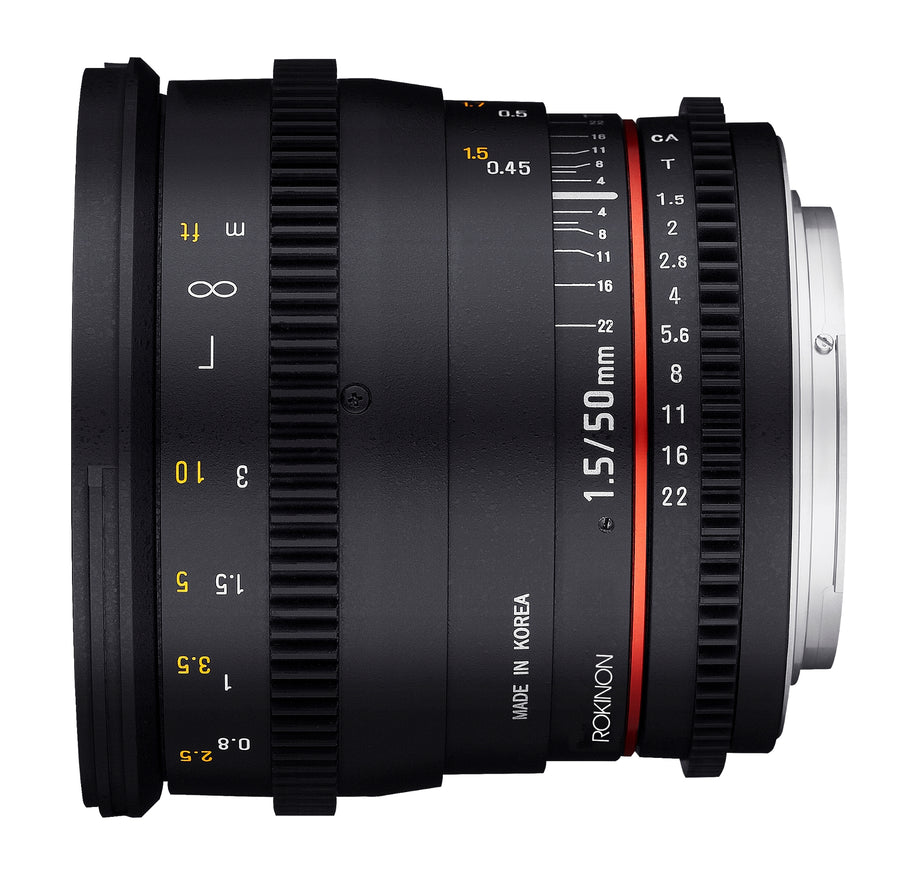

The Rokinon 50mm T1.5 AS UMC Lens is a fast manual focus prime lens. It provides a very fast maximum aperture of T1.5 for effective low light capture and shallow depth of field control and an 8 blade iris for attractive bokeh. Optimized for cinema and video applications, the focus and aperture control rings are outfitted with industry standard gearing, which provides an interface for working with a traditional follow focus. The aperture control ring has also been de-clicked, which enables smooth iris pulls. In addition, bright aperture and distance markings are printed on the lens barrel facing laterally to facilitate easier control by a focus puller.

The 50mm has a minimum focus distance of 1.5'. Internal focusing minimizes the effects of lens breathing, which insures a more consistent angle-of-view when adjusting focus. The lens is composed of 9 elements in 6 groups, including one aspherical element and one hybrid aspherical element to reduce aberrations. In addition, a lens multi-coating helps to improve light transmission reducing flare and ghosting. The filter thread diameter is 77mm.

With this 50mm lens, Rokinon introduces the DS series of cinema lenses, unifying their cine lenses in more than just name. Each of the DS branded lenses will offer the same alignment of their geared focus and aperture rings so that follow focus and other rig accessories won't need re-adjustment when swapping lenses. Also, each DS lens is tested to be color matched with the other lenses in the series and provide the same color and contrast when shooting video. Lastly, the lenses are marked with focusing scales on each side of the barrel for easier adjustment from either side of the camera.

  • Standard length manual focus prime lens for EF mount cameras.
  • Functional as still photo lens but optimized for cinema and video shooting with geared aperture and focus rings, de-clicked aperture for smooth exposure transitions and laterally printed aperture and distance markings.
  • Very fast T1.5 maximum aperture for effective low light capture and shallow depth of field.
  • Internal focusing system with 9 lens elements in 6 groups.
  • One aspherical and one hybrid aspherical lens element control aberrations and improve sharpness throughout the frame.
  • Lens multi-coating improves light transmission and reduces flare and ghosting.
  • Minimum focus distance of 1.5'
  • Filter thread diameter of 77mm

The Rokinon 85mm T1.5 VDSLR AS IF UMC II Lens produces a slightly telephoto angle-of-view on full-frame sensors. It features a very fast maximum aperture of T1.5 and an 8 blade iris, for shallow depth of field with attractive bokeh. The focus and aperture control rings are outfitted with industry standard gearing, which provides an interface for working with a traditional follow focus. The aperture control ring has also been "declicked", which facilitates smooth iris pulls.

The 85mm has a minimum focus distance of 3.6'. Internal focusing minimizes the effects of lens breathing, which insures a more consistent angle-of-view when adjusting focus. The lens is composed of 9 elements in 7 groups, including one aspherical element to reduce spherical aberrations. In addition, a multi-coated elements help improve light transmission.

  • 85mm focal length for full-frame format
  • Very fast T1.5 maximum aperture
  • 8 blade iris for attractive bokeh
  • Geared focus and aperture control rings
  • "Declicked" aperture control ring
  • Minimum focus distance of 3.6'
  • Internal focusing mitigates lens breathing
  • Aspheric lens element limits spherical aberration
  • Lens multi-coating improves transmission

This Rokinon Bundle provides four lenses that you can use to shoot images from wide shots to portrait, it includes; Rokinon's 20mm T1.9, 35mm T1.5, 50mm T1.5, and 85mm T1.5 Cine DS Lenses that feature sharp optics and similar physical characteristics for fast lens changes. The 35, 50, and 85mm lenses share a T-stop range of 1.5 to 22, while the 20mm is a little slower with an exposure range of T1.9 to T22. Each included lens covers full-frame sensors.

Aperture and focus scales are marked on both sides of the lens, which makes it easier for a focus puller to work either side of the lens. The lenses feature a multi-layer coating providing good contrast, a sharp image, and protection from veiling glare. Industry standard focus and iris gear rings share a common position across the lenses for quick lens swaps when working with lens accessories such as follow focus units. Focus and iris are manual only with no electronic focus or iris control by the camera, and the iris ring is de-clicked, which allows you to make smooth iris pulls during a shot.

    16mm T2.2 High Speed Wide Angle

    Specifications20mm T1.9 ED AS UMC
    Aperture RangeT1.9 ~ 22
    Optical Construction13 ELEMENTS IN 12 GROUPS
    (2 ASPHERICAL LENS)
    Minimum Focusing Distance0.2m (0.65ft)
    Filter Size77.0mm
    Maximum Diameter83.0mm
    MountNikon FCanon EFSony EMicro 4/3
    Angle Of ViewFull Frame94.8˚94.8˚94.8˚-
    ASP-C66.9˚70.3˚70.3˚-
    FOUR-THIRDS (4/3”)---56.1˚
    Length (mm)95mm97.5mm123.5mm122.3mm
    Weight (g)600g615g640g635g
    GearModule0.8mm
    A7mm
    B4mm
    C43.8mm
    D8mm10.5mm36.5mm35.3mm
    Focus Ring Diameter81.6mm
    Aperture Ring Diameter70.4mm73.6mm

    35mm T1.5 Full Frame Wide Angle

    Specifications35mm T1.5
    Aperture RangeT1.5 ~ 22
    Optical Construction12 ELEMENTS IN 10 GROUPS
    (1 Aspherical, 1 High Refractive Index)
    Number of Blades8
    Minimum Focusing Distance0.3m (12")
    Filter Size77mm
    Maximum Diameter83mm
    MountNikon FCanon EFSony EMicro 4/3
    Angle Of ViewFull Frame63.1˚63.1˚63.1˚-
    ASP-C43.2˚40.8˚43.2˚-
    FOUR-THIRDS (4/3”)---33.4˚
    Length (mm)109mm111.5mm137.5mm136.3mm
    Weight (g)685g700g720g770g
    GearModule0.8mm
    A7mm
    B4mm
    C43.8mm
    D8mm10.5mm36.5mm35.3mm
    Focus Ring Diameter81.6mm
    Aperture Ring Diameter70.4mm73.6mm

    50mm T1.5 Full Frame

    SpecificationsT1.5 50mm AS UMC II
    Aperture RangeT1.5 ~ T22
    Optical Construction9 ELEMENTS IN 6 GROUPS
    (1 ASPHERICAL & 1 HYBRID LENS)
    Minimum Focusing Distance0.45m (1.47ft)
    Filter Size77.0mm
    Maximum Diameter81.6mm
    MountNikon FCanon EFSony EMicro 4/3
    Angle Of ViewFull Frame46.2˚46.2˚46.2˚-
    ASP-C30.8˚29.0˚30.8˚-
    FOUR-THIRDS (4/3”)---23.6˚
    Length (mm)72.2mm74.7mm100.7mm99.5mm
    Weight (g)555g575g600g590g
    GearModule0.8mm
    A7mm
    B4mm
    C43.8mm
    D8mm10.5mm36.5mm35.3mm
    Focus Ring Diameter81.6mm
    Aperture Ring Diameter70.4mm73.6mm

    85mm T1.5 Full Frame

    Specifications85mm T1.5 VDSLR  AS IF UMC II
    Aperture RangeT1.5 ~ T22
    Optical Construction9 ELEMENTS IN 7 GROUPS
    (1 ASPHERICAL LENS)
    Minimum Focusing Distance1.1m (3.6ft)
    Filter Size72.0mm
    Maximum Diameter78.0mm
    MountNikon FCanon EFSony EMicro 4/3
    Angle Of ViewFull Frame28.3˚28.3˚28.3˚-
    ASP-C19.1˚17.7˚19.1˚-
    FOUR-THIRDS (4/3”)---14.4˚
    Length (mm)72.2mm74.7mm100.7mm99.5mm
    Weight (g)560g580g605g595g
    GearModule0.8mm
    A7mm
    B4mm
    C43.8mm
    D8mm10.5mm36.5mm35.3mm
    Focus Ring Diameter81.6mm
    Aperture Ring Diameter70.4mm73.6mm
