$539.00

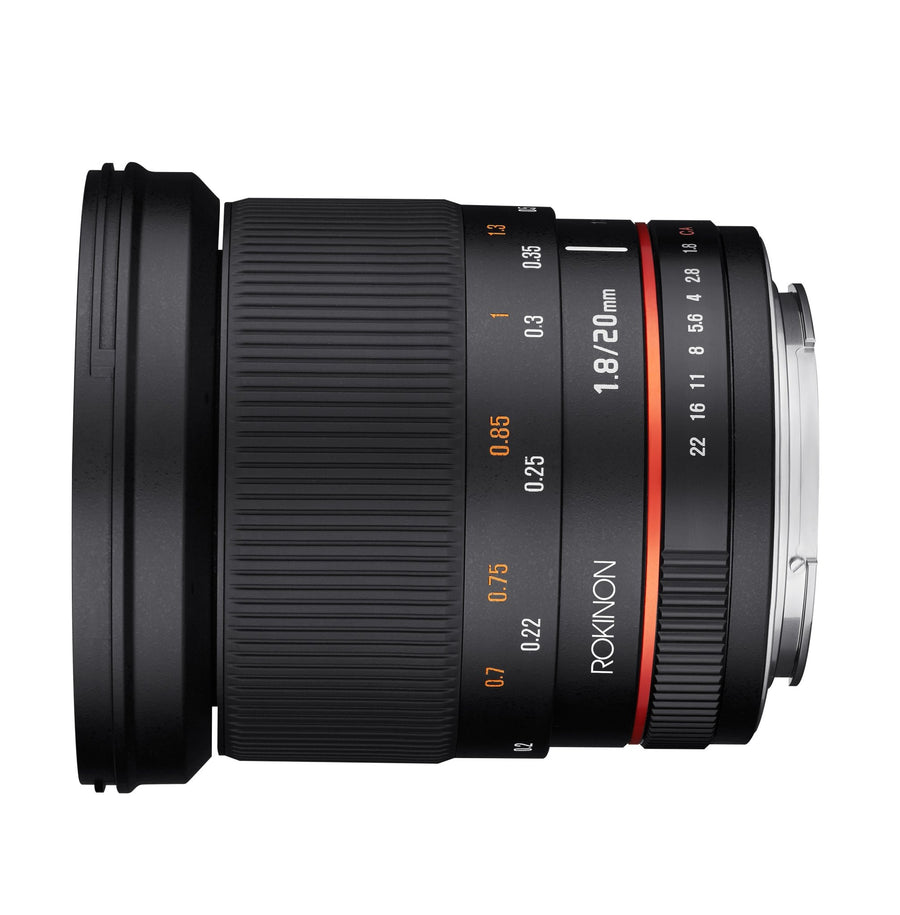

20mm F1.8 Full Frame Wide Angle
The Rokinon 20mm F1.8 ED AS UMC Lens is a bright wide-angle prime featuring an intuitive manual focus design and enhanced optical construction. Two aspherical elements and three extra-low dispersion elements are used to reduce both spherical and chromatic aberrations for greater sharpness, clarity, and reduced distortion. The optics also feature an Ultra Multi-Coating to guard against lens flare and ghosting for increased contrast and color neutrality when working in strong lighting conditions. The manual focus operation affords working with subjects as close as 7.9" away, and a rounded seven-blade diaphragm contributes to a pleasing bokeh quality.
- A wide-angle prime designed for full-frame DSLR cameras, this 20mm f/1.8 lens can also be used on APS-C models where it will provide a 32mm equivalent focal length.
- Bright f/1.8 maximum aperture benefits working in low-light conditions and also affords greater control over depth of field for selective focus control.
- Two aspherical elements are used to reduce spherical aberrations for increased sharpness and minimized distortion.
- Three extra-low dispersion elements help to control chromatic aberrations and color fringing for improved clarity and color fidelity.
- An Ultra Multi-Coating has been applied to individual elements in order to reduce flare and ghosting for increased contrast and a neutral color balance.
- Manual focus operation allows for precise control with a minimum focusing distance of 7.9".
- Rounded seven-blade diaphragm contributes to a smooth and pleasing bokeh quality.
- Specifications
- Canon EF
- Nikon F with AE
- Pentax K
- Fuji X
- Sony E
- Micro 4/3
| SPECIFICATIONS | 1:1.8 20mm ED AS UMC | ||||||
| APERTURE RANGE | F1.8 ~ 22 | ||||||
|
OPTICAL CONSTRUCTION |
13 ELEMENTS IN 12 GROUPS (2 ASPHERICAL) | ||||||
|
MINIMUM FOCUSING DISTANCE |
0.2m (0.66ft) | ||||||
| FILTER SIZE | Φ77.0mm | ||||||
| MAXIMUM DIAMETER | Φ83.0mm | ||||||
| MOUNT | Canon EF | Nikon F with AE | Pentax K | Fujifilm X | Sony E | Micro 4/3 |
|
| ANGLE OF VIEW |
Full Frame |
94.8˚ | 94.8˚ | 94.8˚ | - | 94.8˚ | - |
| ASP-C | 66.9˚ | 70.3˚ | 70.3˚ | 70.3˚ | 70.3˚ | - | |
|
FOUR-THIRDS 4/3” |
- | - | - | - | - | 56.1˚ | |
| LENGTH (mm) | 88.4 | 85.9 | 86.9 | 114.7 | 114.4 | 113.2 | |
| WEIGHT (g) | 497 | 488 | 493 | 565 | 525 | 520 | |
Model: RK20M-C
UPC: 0-84438-76531-1
Focal Length: 20mm
Maximum Aperture: F1.8
Coverage: Full Frame
Optical Construction: 13 Glass Element 12 Groups
Aperture Range: F1.8 to F22
Diaphragm Blades: 7
Coating: Ultra Multi-Coating
Minimum Focusing Distance: 0.66ft (0.2m)
Filter Size: 77mm

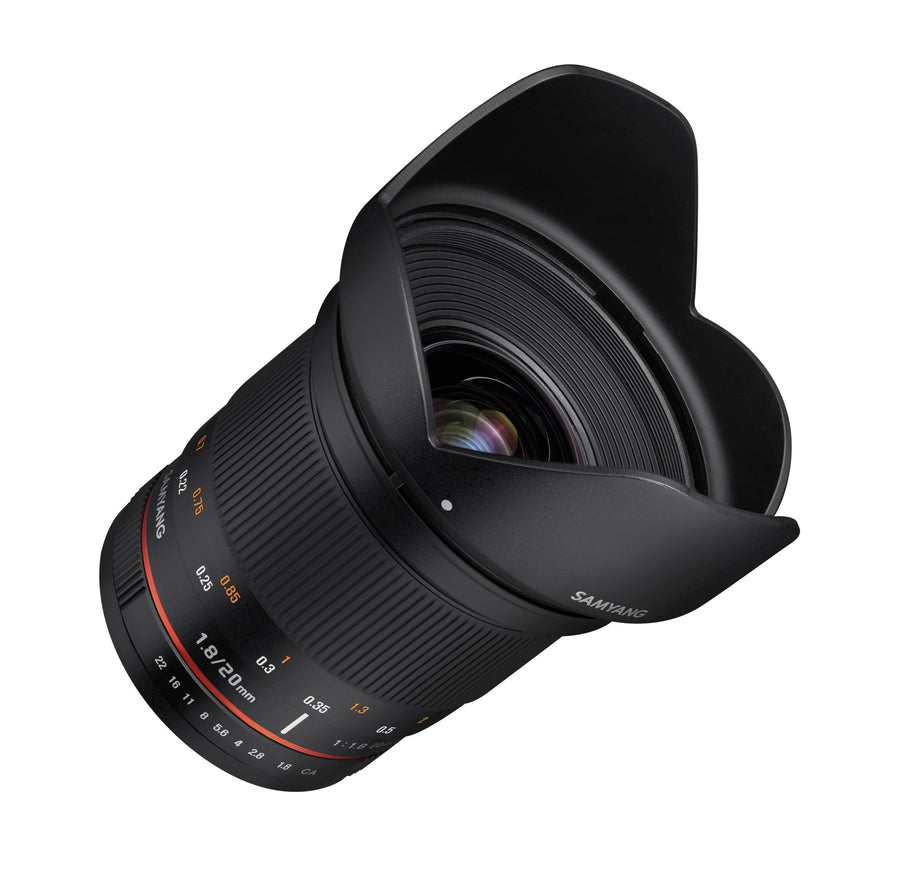

Lens Hood: Removable Petal Shaped
Maximum Diameter: 3.27" (83mm)
Weight: 17.53oz (497g)
Length: 3.48" (88.4mm)
Model: RK20MAF-N
UPC: 0-84438-76530-4
Focal Length: 20mm
Maximum Aperture: F1.8
Coverage: Full Frame
Optical Construction: 13 Glass Element 12 Groups
Aperture Range: F1.8 to F22
Diaphragm Blades: 7
Coating: Ultra Multi-Coating
Minimum Focusing Distance: 0.66ft (0.2m)
Filter Size: 77mm
Lens Hood: Removable Petal Shaped
Maximum Diameter: 3.27" (83mm)
Weight: 17.21oz (488g)
Length: 3.38" (85.9mm)
Model: RK20M-P
UPC: 0-84438-76533-5
Focal Length: 20mm
Maximum Aperture: F1.8
Coverage: Full Frame
Optical Construction: 13 Glass Element 12 Groups
Aperture Range: F1.8 to F22
Diaphragm Blades: 7
Coating: Ultra Multi-Coating
Minimum Focusing Distance: 0.66ft (0.2m)
Filter Size: 77mm
Lens Hood: Removable Petal Shaped
Maximum Diameter: 3.27" (83mm)
Weight: 17.39oz (493g)
Length: 3.42" (86.9mm)
Model: RK20M-FX
UPC: 0-84438-76533-5
Focal Length: 20mm
Maximum Aperture: F1.8
Coverage: Full Frame
Optical Construction: 13 Glass Element 12 Groups
Aperture Range: F1.8 to F22
Diaphragm Blades: 7
Coating: Ultra Multi-Coating
Minimum Focusing Distance: 0.66ft (0.2m)
Filter Size: 77mm
Lens Hood: Removable Petal Shaped
Maximum Diameter: 3.27" (83mm)
Weight: 19.92oz (565g)
Length: 4.51" (114.7mm)
Model: RK20M-E
UPC: 0-84438-76532-8
Focal Length: 20mm
Maximum Aperture: F1.8
Coverage: Full Frame
Optical Construction: 13 Glass Element 12 Groups
Aperture Range: F1.8 to F22
Diaphragm Blades: 7
Coating: Ultra Multi-Coating
Minimum Focusing Distance: 0.66ft (0.2m)
Filter Size: 77mm
Lens Hood: Removable Petal Shaped
Maximum Diameter: 3.27" (83mm)
Weight: 18.51oz (525g)
Length: 4.50" (114.4mm)
Model: RK20M-MFT
UPC: 0-84438-76534-2
Focal Length: 20mm
Maximum Aperture: F1.8
Coverage: Full Frame
Optical Construction: 13 Glass Element 12 Groups
Aperture Range: F1.8 to F22
Diaphragm Blades: 7
Coating: Ultra Multi-Coating
Minimum Focusing Distance: 0.66ft (0.2m)
Filter Size: 77mm
Lens Hood: Removable Petal Shaped
Maximum Diameter: 3.27" (83mm)
Weight: 18.34oz (520g)
Length: 4.45" (113.2mm)
Specifications
| SPECIFICATIONS | 1:1.8 20mm ED AS UMC | ||||||
| APERTURE RANGE | F1.8 ~ 22 | ||||||
|
OPTICAL CONSTRUCTION |
13 ELEMENTS IN 12 GROUPS (2 ASPHERICAL) | ||||||
|
MINIMUM FOCUSING DISTANCE |
0.2m (0.66ft) | ||||||
| FILTER SIZE | Φ77.0mm | ||||||
| MAXIMUM DIAMETER | Φ83.0mm | ||||||
| MOUNT | Canon EF | Nikon F with AE | Pentax K | Fujifilm X | Sony E | Micro 4/3 |
|
| ANGLE OF VIEW |
Full Frame |
94.8˚ | 94.8˚ | 94.8˚ | - | 94.8˚ | - |
| ASP-C | 66.9˚ | 70.3˚ | 70.3˚ | 70.3˚ | 70.3˚ | - | |
|
FOUR-THIRDS 4/3” |
- | - | - | - | - | 56.1˚ | |
| LENGTH (mm) | 88.4 | 85.9 | 86.9 | 114.7 | 114.4 | 113.2 | |
| WEIGHT (g) | 497 | 488 | 493 | 565 | 525 | 520 | |
Canon EF
Model: RK20M-C
UPC: 0-84438-76531-1
Focal Length: 20mm
Maximum Aperture: F1.8
Coverage: Full Frame
Optical Construction: 13 Glass Element 12 Groups
Aperture Range: F1.8 to F22
Diaphragm Blades: 7
Coating: Ultra Multi-Coating
Minimum Focusing Distance: 0.66ft (0.2m)
Filter Size: 77mm
Lens Hood: Removable Petal Shaped
Maximum Diameter: 3.27" (83mm)
Weight: 17.53oz (497g)
Length: 3.48" (88.4mm)
Nikon F with AE
Model: RK20MAF-N
UPC: 0-84438-76530-4
Focal Length: 20mm
Maximum Aperture: F1.8
Coverage: Full Frame
Optical Construction: 13 Glass Element 12 Groups
Aperture Range: F1.8 to F22
Diaphragm Blades: 7
Coating: Ultra Multi-Coating
Minimum Focusing Distance: 0.66ft (0.2m)
Filter Size: 77mm
Lens Hood: Removable Petal Shaped
Maximum Diameter: 3.27" (83mm)
Weight: 17.21oz (488g)
Length: 3.38" (85.9mm)
Pentax K
Model: RK20M-P
UPC: 0-84438-76533-5
Focal Length: 20mm
Maximum Aperture: F1.8
Coverage: Full Frame
Optical Construction: 13 Glass Element 12 Groups
Aperture Range: F1.8 to F22
Diaphragm Blades: 7
Coating: Ultra Multi-Coating
Minimum Focusing Distance: 0.66ft (0.2m)
Filter Size: 77mm
Lens Hood: Removable Petal Shaped
Maximum Diameter: 3.27" (83mm)
Weight: 17.39oz (493g)
Length: 3.42" (86.9mm)
Fuji X
Model: RK20M-FX
UPC: 0-84438-76533-5
Focal Length: 20mm
Maximum Aperture: F1.8
Coverage: Full Frame
Optical Construction: 13 Glass Element 12 Groups
Aperture Range: F1.8 to F22
Diaphragm Blades: 7
Coating: Ultra Multi-Coating
Minimum Focusing Distance: 0.66ft (0.2m)
Filter Size: 77mm
Lens Hood: Removable Petal Shaped
Maximum Diameter: 3.27" (83mm)
Weight: 19.92oz (565g)
Length: 4.51" (114.7mm)
Sony E
Model: RK20M-E
UPC: 0-84438-76532-8
Focal Length: 20mm
Maximum Aperture: F1.8
Coverage: Full Frame
Optical Construction: 13 Glass Element 12 Groups
Aperture Range: F1.8 to F22
Diaphragm Blades: 7
Coating: Ultra Multi-Coating
Minimum Focusing Distance: 0.66ft (0.2m)
Filter Size: 77mm
Lens Hood: Removable Petal Shaped
Maximum Diameter: 3.27" (83mm)
Weight: 18.51oz (525g)
Length: 4.50" (114.4mm)
Micro 4/3
Model: RK20M-MFT
UPC: 0-84438-76534-2
Focal Length: 20mm
Maximum Aperture: F1.8
Coverage: Full Frame
Optical Construction: 13 Glass Element 12 Groups
Aperture Range: F1.8 to F22
Diaphragm Blades: 7
Coating: Ultra Multi-Coating
Minimum Focusing Distance: 0.66ft (0.2m)
Filter Size: 77mm
Lens Hood: Removable Petal Shaped
Maximum Diameter: 3.27" (83mm)
Weight: 18.34oz (520g)
Length: 4.45" (113.2mm)
