20mm T1.9 Wide Angle XEEN Pro Cinema Lens - Rokinon
20mm T1.9 Wide Angle XEEN Pro Cinema Lens
20mm T1.9 Wide Angle XEEN Pro Cinema Lens
20mm T1.9 Wide Angle XEEN Pro Cinema Lens - Rokinon
20mm T1.9 Wide Angle XEEN Pro Cinema Lens - Rokinon
20mm T1.9 Wide Angle XEEN Pro Cinema Lens - Rokinon

20mm T1.9 Wide Angle XEEN Pro Cinema Lens

XN20-C

Regular price $1,995.00 Sale price$1,395.00
/
Shipping calculated at checkout.
Mount

Model: XN20-C

UPC: 0-84438-76556-4

Maximum Aperture: T1.9

Aperture Range: T1.9 to T22

Diaphragm Blades: 11

Coating: XEEN X-Coating Technology

Minimum Focusing Distance: 10" (.25m)

Filter Size: 114mm Front Diameter sized for use with Standard 114mm Matte Boxes

Lens Hood: Built-In

Weight: 35.6oz (1010g)

Length: 3.87" (95.3mm)

Model: XN20-MFT

UPC: 0-84438-76557-1

Maximum Aperture: T1.9

Aperture Range: T1.9 to T22

Diaphragm Blades: 11

Coating: XEEN X-Coating Technology

Minimum Focusing Distance: 10" (.25m)

Filter Size: 114mm Front Diameter sized for use with Standard 114mm Matte Boxes

Lens Hood: Built-In

Weight: 35.3oz (1000g)

Length: 4.73" (120.1mm)

Model: XN20-F

UPC: 0-84438-76558-8

Maximum Aperture: T1.9

Aperture Range: T1.9 to T22

Diaphragm Blades: 11

Coating: XEEN X-Coating Technology

Minimum Focusing Distance: 10" (.25m)

Filter Size: 114mm Front Diameter sized for use with Standard 114mm Matte Boxes

Lens Hood: Built-In

Weight: 33oz (935g)

Length: 3.65" (92.8mm)

Model: XN20-PL

UPC: 0-84438-76560-1

Maximum Aperture: T1.9

Aperture Range: T1.9 to T22

Diaphragm Blades: 11

Coating: XEEN X-Coating Technology

Minimum Focusing Distance: 10" (.25m)

Filter Size: 114mm Front Diameter sized for use with Standard 114mm Matte Boxes

Lens Hood: Built-In

Weight: 34.2oz (970g)

Length: 3.44" (87.3mm)

Model: XN20-NEX

UPC: 0-84438-76559-5

Maximum Aperture: T1.9

Aperture Range: T1.9 to T22

Diaphragm Blades: 11

Coating: XEEN X-Coating Technology

Minimum Focusing Distance: 10" (.25m)

Filter Size: 114mm Front Diameter sized for use with Standard 114mm Matte Boxes

Lens Hood: Built-In

Weight: 34.9oz (990g)

Length: 4.78" (121.3mm)

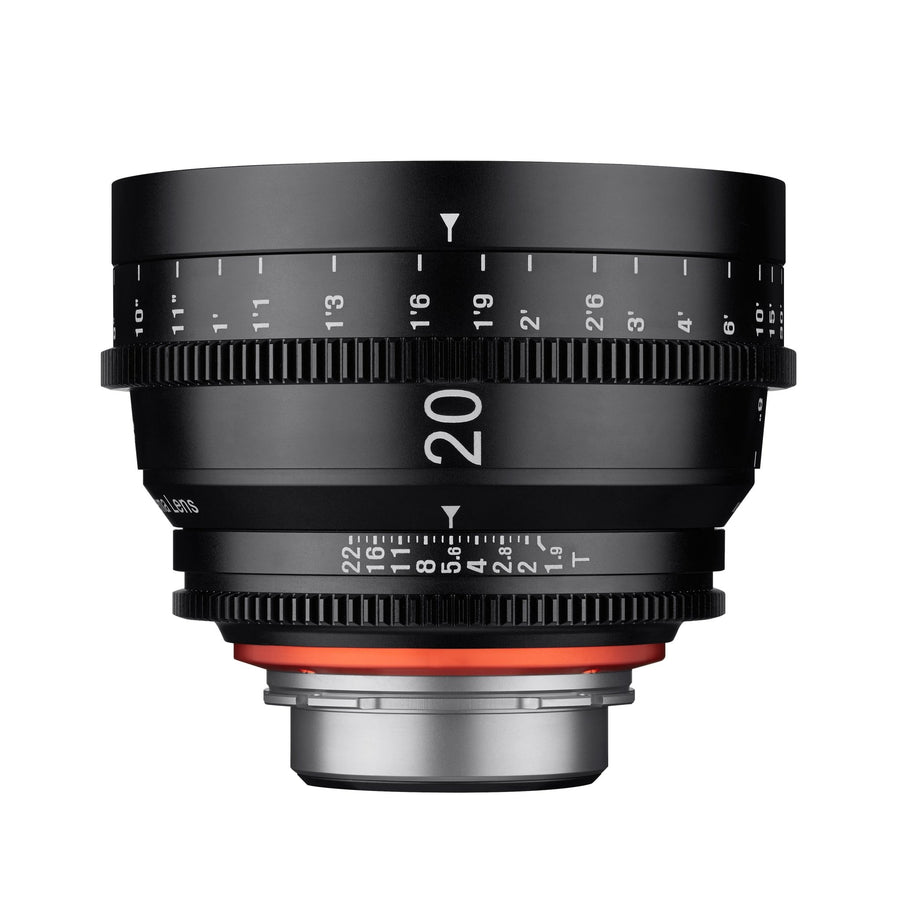

Rokinon's XEEN 20mm T1.9 Lens is built specifically for use as a cinema lens. It features an internal focus design so that the lens does not change size while focusing, this minimizes the appearance of breathing when changing focus. Each lens in the set is multi-coated for good contrast, glare prevention, and are color matched to a factory standard, allowing you to assemble a set over time with minimal color shift. This 20mm lens provides what is considered a wide angle of view on full-frame cameras, and a tighter angle of view on smaller formats.

The lens features dual sided focus scales marked in feet, with dual sided iris scales. The 11-bladed iris provides a rounded aperture for a natural looking highlights and Bokeh. The lens is a manual focus and iris lens, and does not have auto focus or auto iris capability. It incorporates cinema-style focus and iris gears that share the same position across the lenses in the XEEN set. The common 114mm front diameter allows for quick lens changes when using a matte box and focus accessories. The focus ring rotates 200° from close focus to infinity; this gives you a high degree of precision when adjusting focus.

    • This is a 20mm lens that has an image circle that covers a full-frame sensor. When mounted on a camera with a full-frame sensor it provides you with a wide angle of view
    • The lens features metal construction and it incorporates a support that can help take strain off your camera's lens port
    • Dual right and left side focus and T-stop scales allow your focus puller to work from either side of the lens
    • Each lens in the XEEN series share common focus and iris gear ring positions, which speeds up lens changes
    • The common 114mm front diameter allows for quick lens changes as you don't have to swap out anti-reflection donuts or adapters to use the same matte box.
    • The non-rotating front allows you to use optional clip-on matte boxes.
    • De-clicked aperture ring for smooth iris pulls.
    • A minimum focusing distance of 10" allows you to get up close to your subject
    • 6K Ready Optics
    • Full Frame Coverage
    • Tightly Color Matched
    • Durable All Metal Body
    • Unified 40° Iris Rotation
    • Unified 200° Focus Throw
    • Large Easy To Read Markings
    • Three Year Limited Warranty
    • Lens Support Mount (Except PL)
    • XEEN Proprietary X-Coating Technology
    • Unified 114mm Non-Rotating Front Diameters
    • 11 Bladed Diaphragm for Superb Bokeh
    • Dual Calibrated Right and Left Side Distance and T-Stop Scales
    • Unified Focus and Aperture Gear Positions for Easy Follow Focus Use
    • Mounts can be shimmed and are interchangeable by a qualified technician
    • Incredibly smooth and fully damped movement of focusing and aperture controls

    User Manual Download

    Specifications

    Focal Length20mm
    Maximum T-StopT1.9
    Negative Size24 mm X 36 mm
    Angle of ViewFull Frame (1:1x)94.82˚
    Super 3575.31˚
    APS-C (1:1.5x)70.26˚
    APS-C (1:1.6x)66.94˚
    MFT (1:2x)56.06˚
    Focusing Range∞ to 0.20 m
    Front SizeΦ114mm
    Number of Blades11
    SizePLΦ117.6 x 87.3mm
    Canon EFΦ117.6 x 95.3mm
    Nikon FΦ117.6 x 92.8mm
    Sony EΦ117.6 x 121.3mm
    MFTΦ117.6 x 120.1mm
    AngleFocus angle200°
    Iris angle37.5°
    Weight
    (without Lens cap)
    PL970g
    Canon EF1,010g
    Nikon F935g
    Sony E990g
    MFT1,000g
