24mm T1.5 Full Frame Wide Angle Cine DS

+

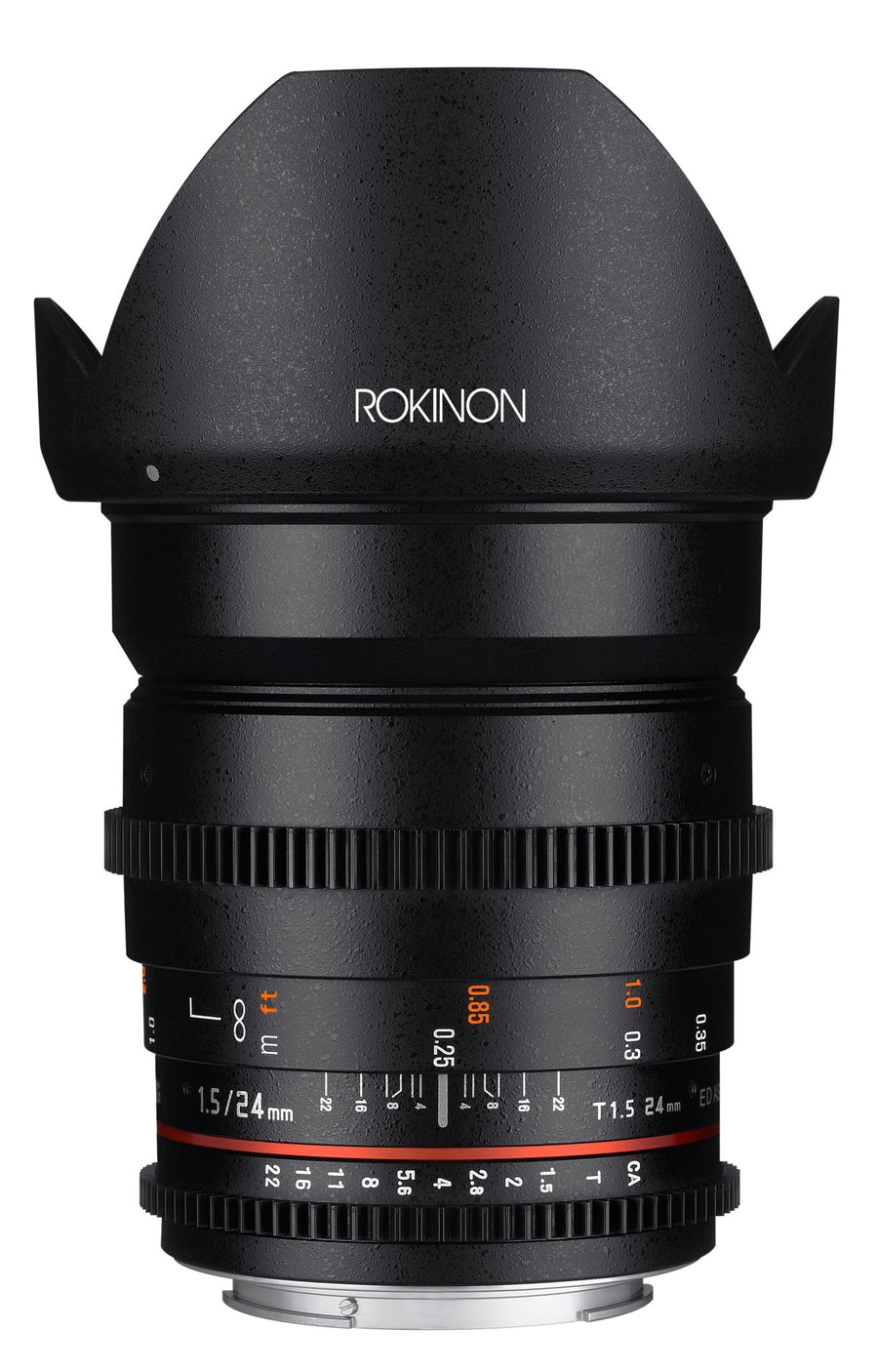

The Rokinon 24mm T1.5 VDSLR ED AS IF UMC II is a wide angle manual focus cine lens designed for full frame sensor sizes

Utilizing a multi-layer coating process for consistent color rendition from lens to lens the Rokinon 24mm T1.5 VDSLR ED AS IF UMC II Lens answers the challenge of assembling a set of lenses over time. Features industry standard geared focus and iris rings that share common position with other Rokinon VDSLR lenses. To aid focus pullers who have to work both sides of the lens, the aperture and focus scales are marked on both sides of the lens.

This 24mm lens produces a 84.1° coverage when used with full frame cameras. Hybrid aspherical lenses render sharply defined images with a minimum of distortion and chromatic aberrations, with a minimum focus distance of just under 10" from the lens. A removable petal shaped lens hood provides flare protection when shooting without a matte box, the lenses threaded front accepts a 77mm filter ring.

Please note that some cameras may require that Shutter Lock be disengaged when using this lens.

  • 24mm lens with approximate angle of view of:
  • Full-Frame: 84.1°
  • APS-C: 57.6°
  • Ultra Multi Coated lenses minimize flare and ghosting, and the lenses are color matched to a standard eliminating the need to acquire an entire set of lenses at the same time.
  • Industry-standard gearing for focus and aperture rings. Each lens in the Rokinon DS series share common focus and iris gear ring positions, which speeds up lens changes as accessories such as follow focus units or iris motors don't have to be re-positioned.
  • "De-clicked" aperture ring for smooth iris pulls.
  • A minimum focusing distance of 9.8" allows you to get up close to your subject.

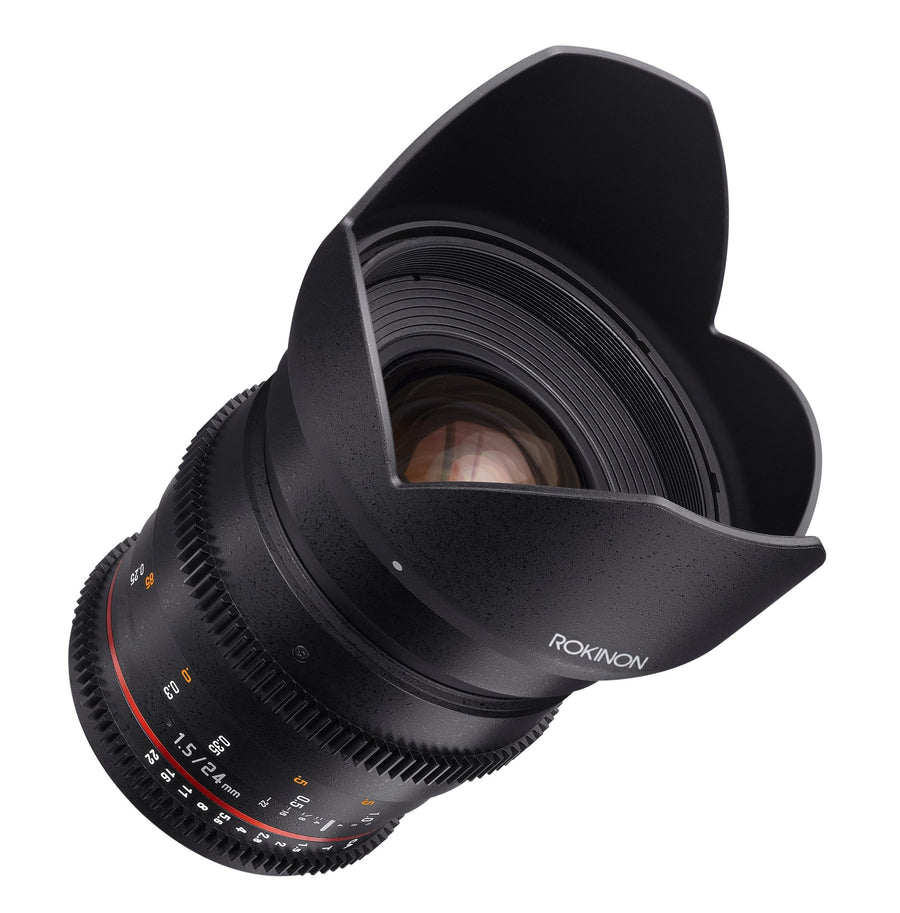

  • A removable petal-type lens hood provides flare protection without a matte box.

User Manual Download

Specifications 24mm ED AS IF UMC II
Aperture Range T1.5 ~ T22
Optical
Construction
13 ELEMENTS IN 12 GROUPS
(2 ASPHERICAL)
Minimum
Focusing Distance
0.25m (0.82ft)
Filter Size 77.0mm
Maximum Diameter 83.0mm
Mount Nikon F Canon EF Sony E Micro 4/3
Angle Of View Full Frame
84.1˚ 84.1˚ 84.1˚ -
ASP-C 61.8˚ 57.6˚ 61.8˚ -
FOUR-THIRDS
4/3”
- - - 47.6˚
Length (mm)
95mm 97.5mm 123.5mm 122.3mm
Weight (g) 600g 615g 640g 635g
Gear Module 0.8mm
A 7mm
B 4mm
C 43.8mm
D 8mm 10.5mm 36.5mm 35.3mm
Focus Ring Diameter 81.6mm
Aperture Ring Diameter 70.4mm 73.6mm

Model: DS24M-C

UPC: 0-84438-76322-5

Focal Length: 24mm

Maximum Aperture: T1.5

Coverage: Full Frame (FX)

Optical Construction: 13 Glass Elements In 12 Groups

Aperture Range: T1.5 to T22

Diaphragm Blades: 8

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 9.8” (0.25m)

Filter Size: 77mm

Lens Hood: Removable Petal Shaped

Maximum Diameter: 3.27” (83mm)

Weight: 21.7oz (615g)

Length: 3.84” (97.5mm)

Model: DS24M-N

UPC: 0-84438-76323-2

Focal Length: 24mm

Maximum Aperture: T1.5

Coverage: Full Frame (FX)

Optical Construction: 13 Glass Elements In 12 Groups

Aperture Range: T1.5 to T22

Diaphragm Blades: 8

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 9.8” (0.25m)

Filter Size: 77mm

Lens Hood: Removable Petal Shaped

Maximum Diameter: 3.27” (83mm)

Weight: 21.2oz (600g)

Length: 3.66” (95mm)

Model: DS24M-NEX

UPC: 0-84438-76325-6

Focal Length: 24mm

Maximum Aperture: T1.5

Coverage: Full Frame (FX)

Optical Construction: 13 Glass Elements In 12 Groups

Aperture Range: T1.5 to T22

Diaphragm Blades: 8

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 9.8” (0.25m)

Filter Size: 77mm

Lens Hood: Removable Petal Shaped

Maximum Diameter: 3.27”(83mm)

Weight: 22.6oz (640g)

Length: 4.86” (123.5mm)

Model: DS24M-MFT

UPC: 0-84438-76326-3

Focal Length: 24mm

Maximum Aperture: T1.5

Coverage: Full Frame (FX)

Optical Construction: 13 Glass Elements In 12 Groups

Aperture Range: T1.5 to T22

Diaphragm Blades: 8

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 9.8” (0.25m)

Filter Size: 77mm

Lens Hood: Removable Petal Shaped

Maximum Diameter: 3.27”(83mm)

Weight: 22.4oz (635g)

Length: 4.82” (122.3mm)

Specifications

Specifications 24mm ED AS IF UMC II
Aperture Range T1.5 ~ T22
Optical
Construction
13 ELEMENTS IN 12 GROUPS
(2 ASPHERICAL)
Minimum
Focusing Distance
0.25m (0.82ft)
Filter Size 77.0mm
Maximum Diameter 83.0mm
Mount Nikon F Canon EF Sony E Micro 4/3
Angle Of View Full Frame
84.1˚ 84.1˚ 84.1˚ -
ASP-C 61.8˚ 57.6˚ 61.8˚ -
FOUR-THIRDS
4/3”
- - - 47.6˚
Length (mm)
95mm 97.5mm 123.5mm 122.3mm
Weight (g) 600g 615g 640g 635g
Gear Module 0.8mm
A 7mm
B 4mm
C 43.8mm
D 8mm 10.5mm 36.5mm 35.3mm
Focus Ring Diameter 81.6mm
Aperture Ring Diameter 70.4mm 73.6mm

Canon EF

Model: DS24M-C

UPC: 0-84438-76322-5

Focal Length: 24mm

Maximum Aperture: T1.5

Coverage: Full Frame (FX)

Optical Construction: 13 Glass Elements In 12 Groups

Aperture Range: T1.5 to T22

Diaphragm Blades: 8

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 9.8” (0.25m)

Filter Size: 77mm

Lens Hood: Removable Petal Shaped

Maximum Diameter: 3.27” (83mm)

Weight: 21.7oz (615g)

Length: 3.84” (97.5mm)

Nikon F

Model: DS24M-N

UPC: 0-84438-76323-2

Focal Length: 24mm

Maximum Aperture: T1.5

Coverage: Full Frame (FX)

Optical Construction: 13 Glass Elements In 12 Groups

Aperture Range: T1.5 to T22

Diaphragm Blades: 8

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 9.8” (0.25m)

Filter Size: 77mm

Lens Hood: Removable Petal Shaped

Maximum Diameter: 3.27” (83mm)

Weight: 21.2oz (600g)

Length: 3.66” (95mm)

Sony E

Model: DS24M-NEX

UPC: 0-84438-76325-6

Focal Length: 24mm

Maximum Aperture: T1.5

Coverage: Full Frame (FX)

Optical Construction: 13 Glass Elements In 12 Groups

Aperture Range: T1.5 to T22

Diaphragm Blades: 8

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 9.8” (0.25m)

Filter Size: 77mm

Lens Hood: Removable Petal Shaped

Maximum Diameter: 3.27”(83mm)

Weight: 22.6oz (640g)

Length: 4.86” (123.5mm)

Micro 4/3

Model: DS24M-MFT

UPC: 0-84438-76326-3

Focal Length: 24mm

Maximum Aperture: T1.5

Coverage: Full Frame (FX)

Optical Construction: 13 Glass Elements In 12 Groups

Aperture Range: T1.5 to T22

Diaphragm Blades: 8

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 9.8” (0.25m)

Filter Size: 77mm

Lens Hood: Removable Petal Shaped

Maximum Diameter: 3.27”(83mm)

Weight: 22.4oz (635g)

Length: 4.82” (122.3mm)
