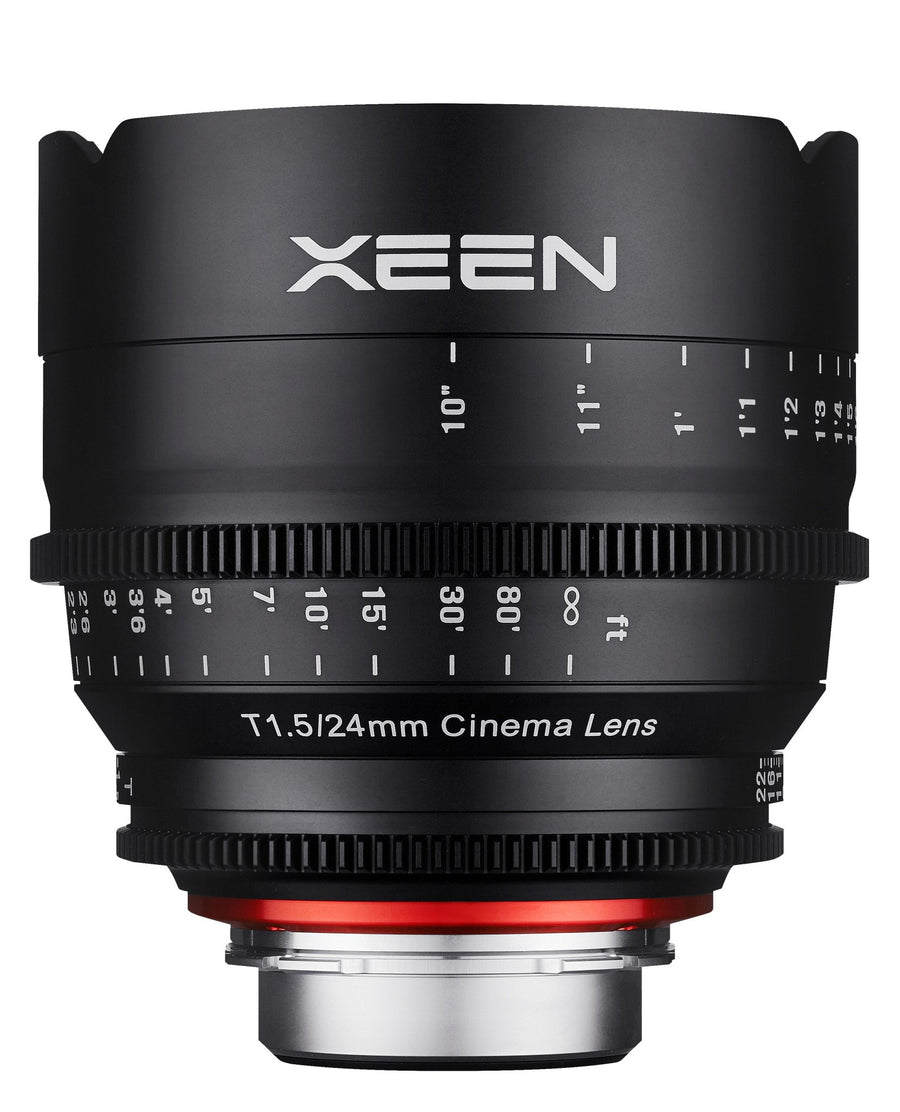

24mm T1.5 Wide Angle XEEN Pro Cinema Lens

+

Rokinon's Xeen 24mm T1.5 Lens is built specifically for use as a cinema lens. It features an internal focus design so that the lens does not change size while focusing, this minimizes the appearance of breathing when changing focus. Each lens in the set is multi-coated for good contrast, glare prevention, and are color matched to a factory standard, allowing you to assemble a set over time with minimal color shift. This 24mm lens provides what is considered a wide angle of view on full-frame cameras, and a tighter angle of view on smaller formats.

The lens features dual sided focus scales marked in feet, with dual sided iris scales. The 11-bladed iris provides a rounded aperture for a natural looking highlights and Bokeh. The lens is a manual focus and iris lens, and does not have auto focus or auto iris capability. It incorporates cinema-style focus and iris gears that share the same position across the lenses in the Xeen set. The common 114mm front diameter allows for quick lens changes when using a matte box and focus accessories. The focus ring rotates 200° from close focus to infinity; this gives you a high degree of precision when adjusting focus.

  • Each lens in the XEEN series share common focus and iris gear ring positions
  • The common 114mm front diameter allows for quick lens changes
  • The non-rotating front allows you to use optional clip-on matte boxes
  • Clickless aperture ring for smooth iris pulls
  • A minimum focusing distance of 10" allows you to get up close to your subject
  • 6K Ready Optics
  • Full Frame Coverage
  • Durable All Metal Body
  • Tightly Color Matched
  • Unified 40° Iris Rotation
  • Unified 200° Focus Throw
  • Large Easy To Read Markings
  • Three Year Limited Warranty
  • Lens Support Mount (Except PL)
  • Xeen Proprietary X-Coating Technology
  • Unified 114mm Non-Rotating Front Diameters
  • 11 Bladed Diaphragm for Superb Bokeh
  • Dual Calibrated Right and Left Side Distance and T-Stop Scales
  • Unified Focus and Aperture Gear Positions for Easy Follow Focus Use
  • Mounts can be shimmed and are interchangeable by a qualified technician
  • Smooth and fully damped movement of focusing and aperture controls

User Manual Download

Focal length 24mm
Maximum T-stop T1.5
Negative size 24 mm X 36 mm
Angle of view Full Frame(1:1x) 84.1°
Super 35 61.2°
APS-C (1:1.5x) 60.4°
APS-C (1:1.6x) 57.3°
MFT (1:2x) 47.6°
Focusing range ∞ to 0.25 m
Front size Φ114mm
Number of blades 11
Size PL Φ117.6mm x 113.7mm
Canon EF Φ117.6mm x 121.7mm
Nikon F Φ117.6mm x 119.2mm
Sony E Φ117.6mm x 147.7mm
MFT Φ117.6mm x 146.5mm
Angle Focus angle 200°
Iris angle 40°
Weight
(without Lens cap)
PL 1,180g
Canon EF 1,180g
Nikon F 1,135g
Sony E 1,185g
MFT 1,185g

Model: XN24-C

UPC: 0-84438-76464-2

Focal Length: 24mm

Maximum Aperture: T1.5

Coverage: Full Frame (FX)

Aperture Range: T1.5 to T22

Diaphragm Blades: 11

Coating: XEEN X-Coating Technology

Minimum Focusing Distance: 10" (.25m)

Filter Size: 114mm Front Diameter sized for use with Standard 114mm Matte Boxes

Lens Hood: Built-In

Maximum Diameter: 4.6" (117.6mm)

Weight: 41.62oz (1,180g)

Length: 4.80” (121.7mm)

Model: XN24-N

UPC: 0-84438-76466-6

Focal Length: 24mm

Maximum Aperture: T1.5

Coverage: Full Frame (FX)

Aperture Range: T1.5 to T22

Diaphragm Blades: 11

Coating: XEEN X-Coating Technology

Minimum Focusing Distance: 10" (.25m)

Filter Size: 114mm Front Diameter sized for use with Standard 114mm Matte Boxes

Lens Hood: Built-In

Maximum Diameter: 4.6" (117.6mm)

Weight: 40.04oz (1,135g)

Length: 4.70” (119.2mm)

Model: XN24-NEX

UPC: 0-84438-76467-3

Focal Length: 24mm

Maximum Aperture: T1.5

Coverage: Full Frame (FX)

Aperture Range: T1.5 to T22

Diaphragm Blades: 11

Coating: XEEN X-Coating Technology

Minimum Focusing Distance: 10" (.25m)

Filter Size: 114mm Front Diameter sized for use with Standard 114mm Matte Boxes

Lens Hood: Built-In

Maximum Diameter: 4.6" (117.6mm)

Weight: 41.80oz (1,185g)

Length: 5.82” (147.7mm)

Model: XN24-PL

UPC: 0-84438-76468-0

Focal Length: 24mm

Maximum Aperture: T1.5

Coverage: Full Frame (FX)

Aperture Range: T1.5 to T22

Diaphragm Blades: 11

Coating: XEEN X-Coating Technology

Minimum Focusing Distance: 10" (.25m)

Filter Size: 114mm Front Diameter sized for use with Standard 114mm Matte Boxes

Lens Hood: Built-In

Maximum Diameter: 4.6" (117.6mm)

Weight: 41.62oz (1,180g)

Length: 4.48” (113.7mm)

Model: XN24-MFT

UPC: 0-84438-76465-9

Focal Length: 24mm

Maximum Aperture: T1.5

Coverage: Full Frame (FX)

Aperture Range: T1.5 to T22

Diaphragm Blades: 11

Coating: XEEN X-Coating Technology

Minimum Focusing Distance: 10" (.25m)

Filter Size: 114mm Front Diameter sized for use with Standard 114mm Matte Boxes

Lens Hood: Built-In

Maximum Diameter: 4.6" (117.6mm)

Weight: 41.80oz (1,185g)

Length: 5.78” (146.5mm)

Specifications

Focal length 24mm
Maximum T-stop T1.5
Negative size 24 mm X 36 mm
Angle of view Full Frame(1:1x) 84.1°
Super 35 61.2°
APS-C (1:1.5x) 60.4°
APS-C (1:1.6x) 57.3°
MFT (1:2x) 47.6°
Focusing range ∞ to 0.25 m
Front size Φ114mm
Number of blades 11
Size PL Φ117.6mm x 113.7mm
Canon EF Φ117.6mm x 121.7mm
Nikon F Φ117.6mm x 119.2mm
Sony E Φ117.6mm x 147.7mm
MFT Φ117.6mm x 146.5mm
Angle Focus angle 200°
Iris angle 40°
Weight
(without Lens cap)
PL 1,180g
Canon EF 1,180g
Nikon F 1,135g
Sony E 1,185g
MFT 1,185g

Canon EF

Model: XN24-C

UPC: 0-84438-76464-2

Focal Length: 24mm

Maximum Aperture: T1.5

Coverage: Full Frame (FX)

Aperture Range: T1.5 to T22

Diaphragm Blades: 11

Coating: XEEN X-Coating Technology

Minimum Focusing Distance: 10" (.25m)

Filter Size: 114mm Front Diameter sized for use with Standard 114mm Matte Boxes

Lens Hood: Built-In

Maximum Diameter: 4.6" (117.6mm)

Weight: 41.62oz (1,180g)

Length: 4.80” (121.7mm)

Nikon F

Model: XN24-N

UPC: 0-84438-76466-6

Focal Length: 24mm

Maximum Aperture: T1.5

Coverage: Full Frame (FX)

Aperture Range: T1.5 to T22

Diaphragm Blades: 11

Coating: XEEN X-Coating Technology

Minimum Focusing Distance: 10" (.25m)

Filter Size: 114mm Front Diameter sized for use with Standard 114mm Matte Boxes

Lens Hood: Built-In

Maximum Diameter: 4.6" (117.6mm)

Weight: 40.04oz (1,135g)

Length: 4.70” (119.2mm)

Sony E

Model: XN24-NEX

UPC: 0-84438-76467-3

Focal Length: 24mm

Maximum Aperture: T1.5

Coverage: Full Frame (FX)

Aperture Range: T1.5 to T22

Diaphragm Blades: 11

Coating: XEEN X-Coating Technology

Minimum Focusing Distance: 10" (.25m)

Filter Size: 114mm Front Diameter sized for use with Standard 114mm Matte Boxes

Lens Hood: Built-In

Maximum Diameter: 4.6" (117.6mm)

Weight: 41.80oz (1,185g)

Length: 5.82” (147.7mm)

PL

Model: XN24-PL

UPC: 0-84438-76468-0

Focal Length: 24mm

Maximum Aperture: T1.5

Coverage: Full Frame (FX)

Aperture Range: T1.5 to T22

Diaphragm Blades: 11

Coating: XEEN X-Coating Technology

Minimum Focusing Distance: 10" (.25m)

Filter Size: 114mm Front Diameter sized for use with Standard 114mm Matte Boxes

Lens Hood: Built-In

Maximum Diameter: 4.6" (117.6mm)

Weight: 41.62oz (1,180g)

Length: 4.48” (113.7mm)

Micro 4/3

Model: XN24-MFT

UPC: 0-84438-76465-9

Focal Length: 24mm

Maximum Aperture: T1.5

Coverage: Full Frame (FX)

Aperture Range: T1.5 to T22

Diaphragm Blades: 11

Coating: XEEN X-Coating Technology

Minimum Focusing Distance: 10" (.25m)

Filter Size: 114mm Front Diameter sized for use with Standard 114mm Matte Boxes

Lens Hood: Built-In

Maximum Diameter: 4.6" (117.6mm)

Weight: 41.80oz (1,185g)

Length: 5.78” (146.5mm)
