35mm T1.3 Compact High Speed Cine

CV3512-FX

Regular price $599.00 Sale price$349.00
/
Shipping calculated at checkout.
Mount

Model: CV3512-FX

UPC: 0-84438-76580-9

Focal Length: 35mm

Maximum Aperture: T1.3

Coverage: APS-C/Four Thirds

Optical Construction: 9 Glass Elements in 7 Groups

Aperture Range: T1.3 to 16

Diaphragm Blades: 9

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 0.38m (1.24ft)

Filter Size: 62.0mm

Lens Hood: Removable Hood

Maximum Diameter: 73.6mm

Weight: 15.16oz (436g)

Length: 2.92" (73.0mm)

Model: CV3512-E

UPC: 0-84438-76547-2

Focal Length: 35mm

Maximum Aperture: T1.3

Coverage: APS-C/Four Thirds

Optical Construction: 9 Glass Elements in 7 Groups

Aperture Range: T1.3 to 16

Diaphragm Blades: 9

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 0.38m (1.24ft)

Filter Size: 62.0mm

Lens Hood: Removable Hood

Maximum Diameter: 73.6mm

Weight: 15.16oz (436g)

Length: 2.92" (73.0mm)

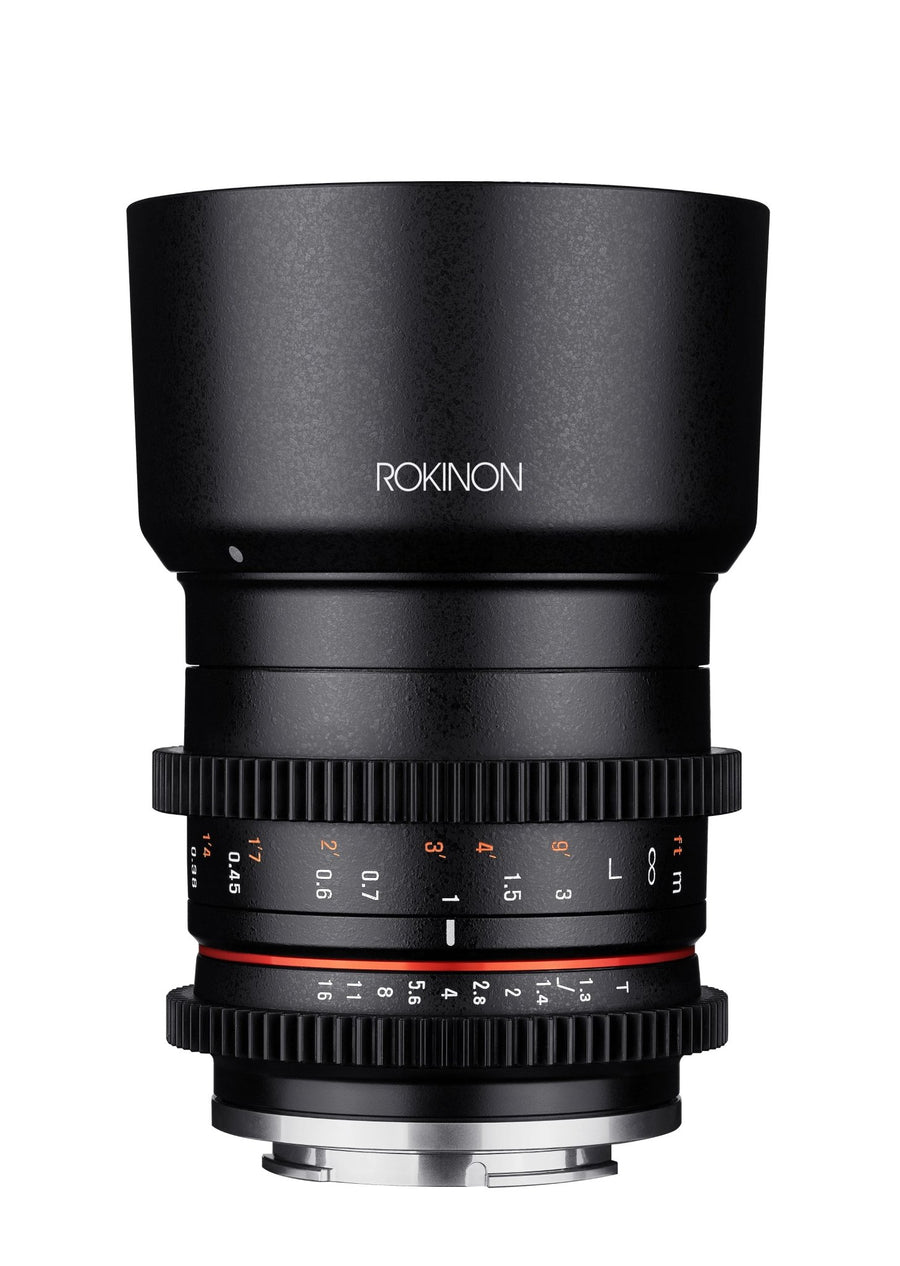

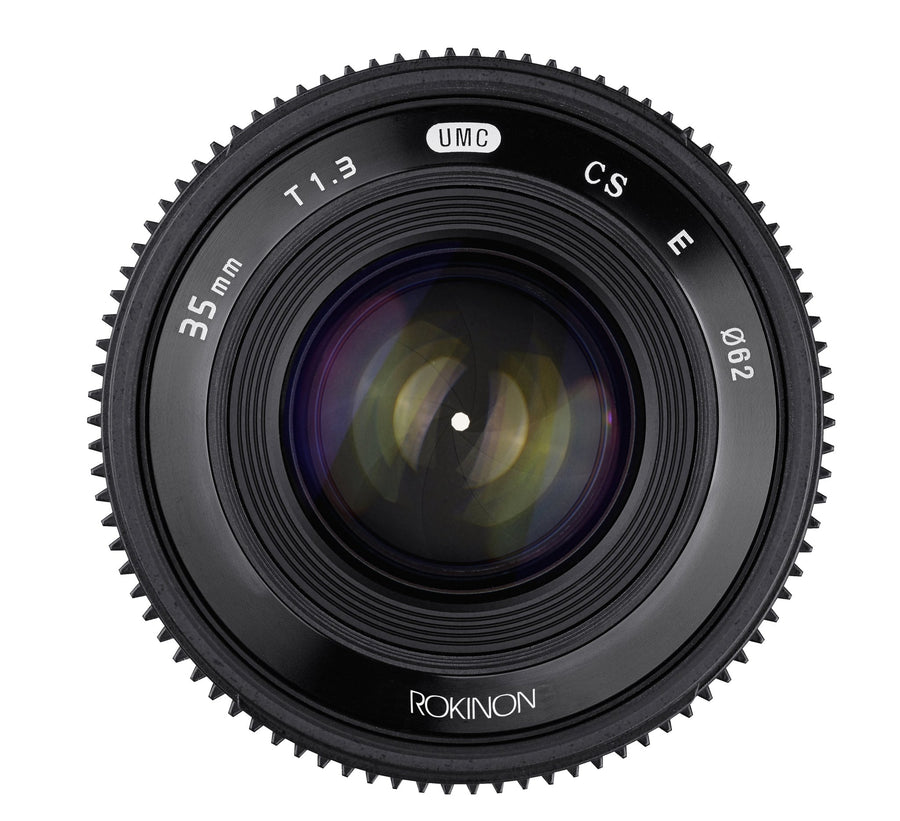

Small and fast, the 35mm T1.3 Compact High-Speed Cine Lens covers APS-C and Four-Thirds format sensors. The lens comes in a Sony E- mount and features industry standard geared focus and iris rings. Ultra Multi-Coatings on the lens provide sharp contrast and consistent colors from lens-to-lens. The lens is marked in both feet and meters and features a de-clicked iris for smooth aperture pulls.

This 35mm lens produces 44.5° AOV when used with APS-C cameras; however, even though it has a Sony E-mount, it does not cover full-frame sized sensors. Internal focus design and a non-rotating front enables using it with a wide variety of cine-style accessories. The lens features low chromatic aberration and has a minimum focus distance of just under 15" from the lens. A removable lens hood provides flare protection when shooting without a matte box, and the lens's threaded front accepts a 77mm filter ring.

  • 35mm lens with approximate angle of view of 44.5° on an APS-C camera.
  • Ultra Multi Coated lenses minimize flare and ghosting.
  • Industry-standard gearing for focus and aperture rings.
  • De-clicked aperture ring for smooth iris pulls.
  • A minimum focusing distance of 14.88" allows you to get up close to your subject.
  • A removable lens hood provides flare protection without a matte box.

User Manual Download

Specifications

Specifications35mm T1.3 AS UMC CS
Aperture RangeT1.3 ~ T16
Optical Construction9 Elements in 7 Groups
Minimum Focusing Distance0.38m (1.24ft)
Filter Size62.0mm
Maximum Diameter73.6mm
MountFujifilm XSony E
Angle of ViewAPS-C44.5˚44.5˚
Length (mm)74.5mm74.2mm
GearModule0.8mm
A7.5mm
B6.0mm
C30.4mm
D16.8mm16.5mm
Focus Ring Diameter73.6mm
Aperture Ring Diameter64.0mm

MTF Chart

Optical Construction
