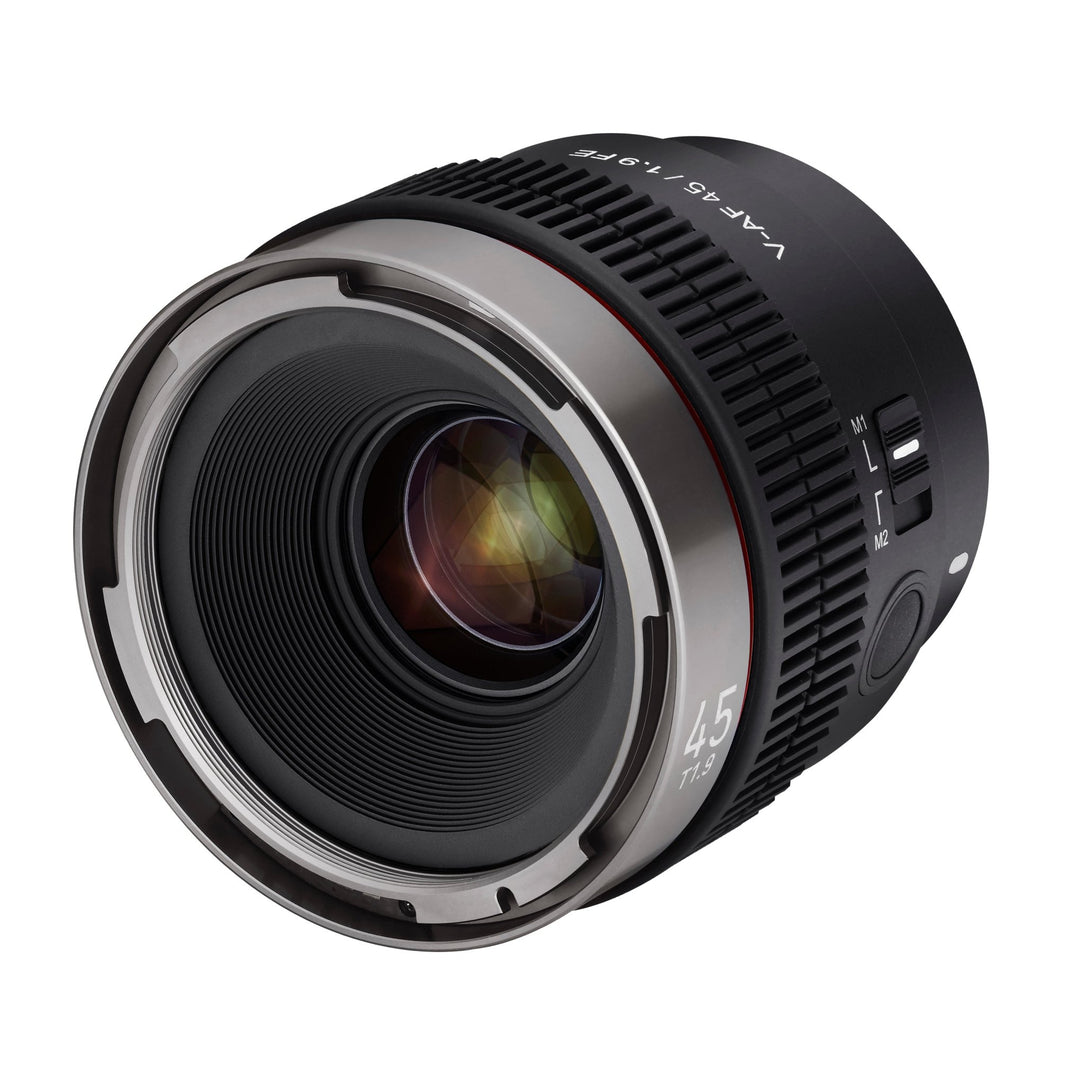

Rokinon announces a new lineup of lenses optimized for video content creators according to their needs. The new Cine AF lineup is the world's first lens for video creators designed to make video content creation more convenient. The fourth lens from this new Cine AF lineup is the Cine AF 45mm T1.9. Meet the new Cine AF lineup custom-designed for videography.
Unified Form Factor – Compact & Light
The Cine AF increases compatibility with gimbals and drones by applying the unified form factors with its 5 different focal lengths (Ultra-Wide to Medium-tele). By providing a compact size of 73 X 70mm and a light-weight of less than 300g, there is no need to re-set the equipment when changing the lenses.
LED Indicator (Tally Lamp) - Excellent usability
The lamp located on the front and mount index helps the user to check whether a video is recorded or not while shooting. It supports video content creation more conveniently even in a small space without a lot of equipment.
Support 8K and the same color tone
The new Cine AF series supports resolutions up to 8K in a small and lightweight form, which is well suited for use with handheld gimbals and drones, as well as for studios and location productions. All lenses within the new Cine AF series are color-matched to avoid shifts when swapping lenses, and the 9 aperture blades allow for a natural-looking bokeh.
Custom Switch & Button
Features the 'Focus save' function usually in professional cine equipment and custom mode that adds function by firmware, which provides video-specific functions for students and amateur users who dream of cinematographers.
Specifications
| Model Name | Cine AF 20mm T1.9 | Cine AF 24mm T1.9 | Cine AF 35mm T1.9 | Cine AF 45mm T1.9 | Cine AF 75mm T1.9 | Cine AF 100mm T2.3 | |
| Maximum T-stop | T1.9 | T1.9 | T1.9 | T1.9 | T1.9 | T2.3 | |
| Image Circle | Ø 43.3mm | Ø 43.3mm | Ø 43.3mm | Ø 43.3mm | Ø 43.3mm | Ø 43.3mm | |
| Angle of View | Full Frame | 94.5° | 83.7° | 63.6° | 52.3° | 32.9° | 25.4° |
| Super 35 | 71.6° | 60.9° | 43.8° | 35.3° | 21.9° | 16.9° | |
| Focusing Range | ∞ to 0.2 m | ∞ to 0.19 m | ∞ to 0.29 m | ∞ to 0.35 m | ∞ to 0.69 m | ∞ to 0.70 m | |
| ∞ to 0.66 ft. | ∞ to 0.62 ft. | ∞ to 0.95 ft. | ∞ to 1.15 ft. | ∞ to 2.26 ft. | ∞ to 2.30 ft. | ||
| Focus Breathing (∞ to 1 m) | 0.7% | 0.7% | 3.1% | 5.5% | 11.7% | 13.0% | |
| Front Diameter | Ø 70 mm | Ø 70 mm | Ø 70 mm | Ø 70 mm | Ø 70 mm | Ø 70 mm | |
| Filter Diameter | Rear Filter | Ø 58 mm | Ø 58 mm | Ø 58 mm | Ø 58 mm | Ø 58 mm | |
| Number of Aperture Blades | 9 | 9 | 9 | 9 | 9 | 9 | |
| Weather Sealing | Yes | Yes | Yes | Yes | Yes | Yes | |
| Custom Mode Switch | Yes | Yes | Yes | Yes | Yes | Yes | |
| Focus Hold Button | Yes | Yes | Yes | Yes | Yes | Yes | |
| Rotation Angle of Aperture Ring | 300° | 300° | 300° | 300° | 300° | 300° | |
| Size | Ø72.2 x 76.9 mm | Ø72.2 x 72.1 mm | Ø72.2 x 72.1 mm | Ø72.2 x 72.1 mm | Ø72.2 x 72.1 mm | Ø72.2 x 86.5 mm | |
| Weight (without Lens cap) | 0.296 kg / 0.65 lbs. | 0.28 kg / 0.6 lbs. | 0.28 kg / 0.6 lbs. | 0.28 kg / 0.6 lbs. | 0.28 kg / 0.6 lbs. | 0.28 kg / 0.6 lbs. | |
Unified Form Factor - Compact & Lightweight
Various focal length lenses with related accessories for filming. Consistent form factors & compact lightweight.
Lightweight at only 280g with standardized gear positions for gimbals and drones.
Outstanding Usability
2 Tally Lamps, located in the front of the lens and mount index, intuitionally show recording status.
Simple user interface solutions for independent content creators' self filming.
8K & Unified Color Tone
Cine AF lens designed for high-resolution cameras up to 8K, offering fast aperture and precise bokeh. The unified color tone reduces the post-production time.
※ Marked as F1.8 instead T1.9 on camera
Expandability
Cine AF lens has an electronic connector in front of the lens, enabling communication between the Cine AF lens and its exclusive accessories.
※ Cine AF exclusive accessories will be released
Pro Controller for Cine AF Series
This exclusive accessory allows you precise and detailed aperture control and provides professional filming experience. It is compatible with Φ95mm sized matte box.
※ Lens firmware must be updated to the latest version using lens manager in order to use all the new features of the Pro Controller properly
Consistent Form Factors
Featuring a compact and consistent lens design for easy handling gimbal and follow focus.
Consistent form factors and markings optimized for motion picture production.
Tally Lamp
Tally lamp function intuitionally shows recording status.
Smooth Focus Transition
Smooth focus transition while the camera is rolling.
Linear MF with 300° focus rotation angle.
※ Available to set in Lens manager software
Custom Switch
Customize the function of the focus ring options can be programmed via the Lens Station and Rokinon's Lens Manager
Focus Hold Button
Hold down the Focus Hold Button for at least two seconds in MF mode. This toggles focus save and loads.
Standardized Color Balance
All of the lenses in the lineup are designed to comply with Rokinon's CCI Standard.
Metal Accessory Mount
This robust mount supports Cine AF exclusive accessories and it is sole metal mount representing Cine AF design.
Electronic Connector
Electronic connect pins for communicating with Cine AF accessories.
Weather Sealing
Protects against moisture, dust, and dirt, ensuring durability and reliability in adverse outdoor conditions, and extends the lens’ lifespan.
