$239.00

85mm T1.5 Full Frame Cine DS

+

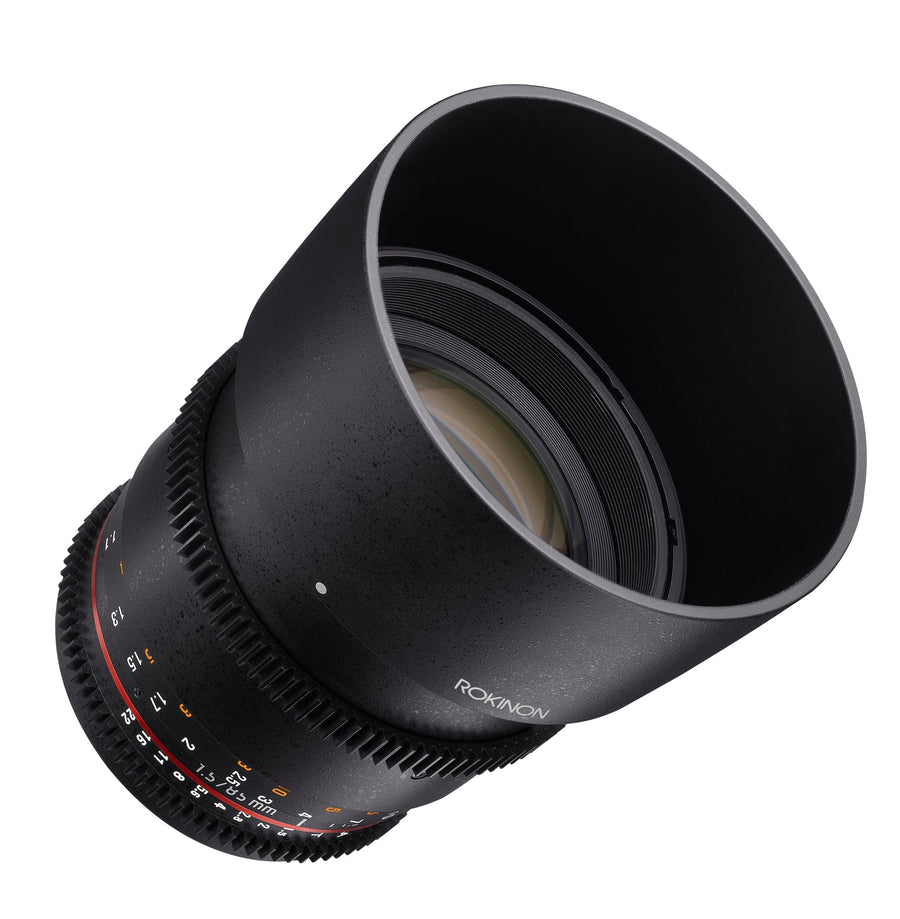

The Rokinon 85mm T1.5 VDSLR AS IF UMC II Lens produces a slightly telephoto angle-of-view on full-frame sensors. It features a very fast maximum aperture of T1.5 and an 8 blade iris, for shallow depth of field with attractive bokeh. The focus and aperture control rings are outfitted with industry standard gearing, which provides an interface for working with a traditional follow focus. The aperture control ring has also been "declicked", which facilitates smooth iris pulls.

The 85mm has a minimum focus distance of 3.6'. Internal focusing minimizes the effects of lens breathing, which insures a more consistent angle-of-view when adjusting focus. The lens is composed of 9 elements in 7 groups, including one aspherical element to reduce spherical aberrations. In addition, a multi-coated elements help improve light transmission.

  • 85mm focal length for full-frame format
  • Very fast T1.5 maximum aperture
  • 8 blade iris for attractive bokeh
  • Geared focus and aperture control rings
  • "Declicked" aperture control ring
  • Minimum focus distance of 3.6'
  • Internal focusing mitigates lens breathing
  • Aspheric lens element limits spherical aberration
  • Lens multi-coating improves transmission

User Manual Download

Specifications 85mm T1.5 VDSLR  AS IF UMC II
Aperture Range T1.5 ~ T22
Optical
Construction
9 ELEMENTS IN 7 GROUPS
(1 ASPHERICAL LENS)
Minimum
Focusing Distance
1.1m (3.6ft)
Filter Size 72.0mm
Maximum Diameter 78.0mm
Mount Nikon F Canon EF Sony E Micro 4/3
Angle Of View Full Frame
28.3˚ 28.3˚ 28.3˚ -
ASP-C 19.1˚ 17.7˚ 19.1˚ -
FOUR-THIRDS
4/3”
- - - 14.4˚
Length (mm)
72.2mm 74.7mm 100.7mm 99.5mm
Weight (g) 560g 580g 605g 595g
Gear Module 0.8mm
A 7mm
B 4mm
C 43.8mm
D 8mm 10.5mm 36.5mm 35.3mm
Focus Ring Diameter 81.6mm
Aperture Ring Diameter 70.4mm 73.6mm

Model: DS85M-C

UPC: 0-84438-76092-7

Focal Length: 85mm

Maximum Aperture: T1.5

Coverage: Full Frame (FX)

Optical Construction: 9 Glass Elements In 7 Groups

Aperture Range: T1.5 to T22

Diaphragm Blades: 8

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 3.6” (1.1m)

Filter Size: 72mm

Lens Hood: Removable

Maximum Diameter: 3.1” (78mm)

Weight: 20.5oz (580g)

Length: 2.94” (74.7mm)

Model: DS85M-N

UPC: 0-84438-76093-4

Focal Length: 85mm

Maximum Aperture: T1.5

Coverage: Full Frame (FX)

Optical Construction: 9 Glass Elements In 7 Groups

Aperture Range: T1.5 to T22

Diaphragm Blades: 8

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 3.6” (1.1m)

Filter Size: 72mm

Lens Hood: Removable

Maximum Diameter: 3.1” (78mm)

Weight: 19.8oz (560g)

Length: 2.84” (72.2mm)

Model: DS85M-NEX

UPC: 0-84438-76094-1

Focal Length: 85mm

Maximum Aperture: T1.5

Coverage: Full Frame (FX)

Optical Construction: 9 Glass Elements In 7 Groups

Aperture Range: T1.5 to T22

Diaphragm Blades: 8

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 3.6” (1.1m)

Filter Size: 72mm

Lens Hood: Removable

Maximum Diameter: 3.1” (78mm)

Weight: 21.3oz (605g)

Length: 3.97” (100.7mm)

Model: DS85M-MFT

UPC: 0-84438-76341-6

Focal Length: 85mm

Maximum Aperture: T1.5

Coverage: Full Frame (FX)

Optical Construction: 9 Glass Elements In 7 Groups

Aperture Range: T1.5 to T22

Diaphragm Blades: 8

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 3.6” (1.1m)

Filter Size: 72mm

Lens Hood: Removable

Maximum Diameter: 3.1” (78mm)

Weight: 21oz (595g)

Length: 3.92” (99.5mm)

Specifications

Specifications 85mm T1.5 VDSLR  AS IF UMC II
Aperture Range T1.5 ~ T22
Optical
Construction
9 ELEMENTS IN 7 GROUPS
(1 ASPHERICAL LENS)
Minimum
Focusing Distance
1.1m (3.6ft)
Filter Size 72.0mm
Maximum Diameter 78.0mm
Mount Nikon F Canon EF Sony E Micro 4/3
Angle Of View Full Frame
28.3˚ 28.3˚ 28.3˚ -
ASP-C 19.1˚ 17.7˚ 19.1˚ -
FOUR-THIRDS
4/3”
- - - 14.4˚
Length (mm)
72.2mm 74.7mm 100.7mm 99.5mm
Weight (g) 560g 580g 605g 595g
Gear Module 0.8mm
A 7mm
B 4mm
C 43.8mm
D 8mm 10.5mm 36.5mm 35.3mm
Focus Ring Diameter 81.6mm
Aperture Ring Diameter 70.4mm 73.6mm

Canon EF

Model: DS85M-C

UPC: 0-84438-76092-7

Focal Length: 85mm

Maximum Aperture: T1.5

Coverage: Full Frame (FX)

Optical Construction: 9 Glass Elements In 7 Groups

Aperture Range: T1.5 to T22

Diaphragm Blades: 8

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 3.6” (1.1m)

Filter Size: 72mm

Lens Hood: Removable

Maximum Diameter: 3.1” (78mm)

Weight: 20.5oz (580g)

Length: 2.94” (74.7mm)

Nikon F

Model: DS85M-N

UPC: 0-84438-76093-4

Focal Length: 85mm

Maximum Aperture: T1.5

Coverage: Full Frame (FX)

Optical Construction: 9 Glass Elements In 7 Groups

Aperture Range: T1.5 to T22

Diaphragm Blades: 8

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 3.6” (1.1m)

Filter Size: 72mm

Lens Hood: Removable

Maximum Diameter: 3.1” (78mm)

Weight: 19.8oz (560g)

Length: 2.84” (72.2mm)

Sony E

Model: DS85M-NEX

UPC: 0-84438-76094-1

Focal Length: 85mm

Maximum Aperture: T1.5

Coverage: Full Frame (FX)

Optical Construction: 9 Glass Elements In 7 Groups

Aperture Range: T1.5 to T22

Diaphragm Blades: 8

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 3.6” (1.1m)

Filter Size: 72mm

Lens Hood: Removable

Maximum Diameter: 3.1” (78mm)

Weight: 21.3oz (605g)

Length: 3.97” (100.7mm)

Micro 4/3

Model: DS85M-MFT

UPC: 0-84438-76341-6

Focal Length: 85mm

Maximum Aperture: T1.5

Coverage: Full Frame (FX)

Optical Construction: 9 Glass Elements In 7 Groups

Aperture Range: T1.5 to T22

Diaphragm Blades: 8

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 3.6” (1.1m)

Filter Size: 72mm

Lens Hood: Removable

Maximum Diameter: 3.1” (78mm)

Weight: 21oz (595g)

Length: 3.92” (99.5mm)
